Fully Recyclable Materials Water Weight Bag Compatible With Various Testing Equipment
Description

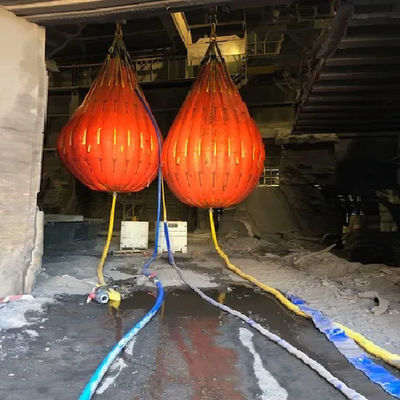

The Water Weight Bag is a sustainable and efficient tool for load testing applications. By utilizing water as the weighting material, this bag reduces the need for heavy, expensive metal weights. Its adaptable design allows it to conform to various surfaces, ensuring accurate weight distribution during testing. The bag is constructed from reinforced materials to withstand harsh conditions, making it suitable for both indoor and outdoor use. Lightweight and easy to handle when empty, it’s a practical choice for professionals in construction, engineering, and transportation industries seeking an environmentally friendly testing solution.
Specifications
| Application | Proof Load Testing, Offshore Load Testing, Structural Load Testing, Ship Load Testing, Industrial Equipment Testing, Research and Development. |
| Content | 100% POLYVINYL CHLORIDE |
| Phthalate | 7P Phthalate Free (includes all Phthalates listed in CAL Prop 65, CPSIA and REACH) |
| Backing Material Size | 1.8/2.0 Mm X 1.55m, Thickness Produced As Per Your Request. |
| Weight | 37.1 oz square yard/ 1450 +- 50 GSM |
| Special | UV Resistant |
| 7P Phthalate Free (includes all Phthalates listed in CAL Prop 65, CPSIA and REACH) | |
| BPA Free / Tris Free / Formaldehyde Free | |
| Does Not Contain Conflict Minerals | |
| Care Instructions | Rinse With Fresh Water And Air Dry |
| Do Not Store with Seawater and Keep Away From Heat Sources | |
| Available sizes | 5000 kg |
| 8,000 kg | |
| 1,0000 kg | |
| 15,000 kg | |
| 20,000 kg | |
| 30,000 kg | |
| 50,000 kg | |
| 100,000 kg | |
| Special sizes could be customized | |
| OEM | Supported |
| MODEL | Weight | Volume | Empty Height (Length) |
Filled Height (Length) |
Max Diam (ø) |
Dry Weight without accessories |
| kg | Liters / m3 | m | m | m | kg | |
| lbs | USG | ft | ft | ft | lbs | |
| HM-1T | 1,000 | 1,000 / 1 | 2.52 | 2.23 | 1.39 | 36 |
| 2,204 | 264 | 8.27 | 7.33 | 4.56 | 80 | |
| HM-2T | 2,000 | 2,000 / 2 | 2.87 | 2.6 | 1.65 | 41 |
| 4,409 | 528 | 9.41 | 8.5 | 5.43 | 90 | |
| HM-3T | 3,000 | 3,000 / 3 | 3.38 | 2.97 | 1.82 | 50 |
| 6,613 | 792 | 11.11 | 9.75 | 6.0 | 110 | |
| HM-4T | 4,000 | 4,000 / 4 | 3.41 | 3.07 | 1.88 | 64 |
| 8,818 | 1,056 | 11.22 | 10.1 | 6.16 | 141 | |
| HM-5T | 5,000 | 5,000 / 5 | 4.14 | 3.52 | 2.13 | 80 |
| 11,023 | 1,320 | 13.60 | 11.58 | 7.0 | 176 | |
| HM-6T | 6,000 | 6,000 / 6 | 4.39 | 3.91 | 2.28 | 86 |
| 13,227 | 1,585 | 14.41 | 12.83 | 7.48 | 189 | |
| HM-8T | 8,000 | 8,000 / 8 | 4.54 | 3.93 | 2.52 | 104 |
| 17,636 | 2,113 | 14.91 | 12.91 | 8.27 | 230 | |
| HM-10T | 10,000 | 10,000 / 10 | 5.18 | 4.49 | 2.70 | 130 |
| 22,046 | 2,641 | 17.0 | 14.75 | 8.90 | 286 | |
| HM-12.5T | 12,500 | 12,500/ 12.5 | 5.43 | 4.62 | 2.86 | 154 |
| 27,558 | 3,302 | 17.91 | 15.16 | 9.39 | 340 | |
| HM-15T | 15,000 | 15,000 / 15 | 6.24 | 5.48 | 2.95 | 159 |
| 33,069 | 3,962 | 20.50 | 18.00 | 9.70 | 350 | |
| HM-20T | 20,000 | 20,000 / 20 | 6.78 | 6. 04 | 3.42 | 224 |
| 44,100 | 5,283 | 22.25 | 19.83 | 11.25 | 492 | |
| HM-25T | 25,000 | 25,000 / 25 | 7.51 | 6.40 | 3.75 | 315 |
| 55,115 | 6,604 | 24.66 | 21.0 | 12.33 | 695 | |
| HM-35T | 35,000 | 35,000 / 35 | 8.07 | 7.11 | 3.91 | 417 |
| 77,161 | 9,246 | 26.50 | 23.33 | 12.83 | 920 | |
| HM-40T | 40,000 | 40,000 / 40 | 8.71 | 7.72 | 4.07 | 440 |
| 88,184 | 10,566 | 28.58 | 25.33 | 13.36 | 970 | |
| HM-50T | 50,000 | 50,000 / 50 | 8.99 | 7.77 | 4.56 | 544 |
| 110,231 | 13,208 | 29.50 | 25.50 | 14.96 | 1200 | |
| HM-100T | 100,000 | 100,000 / 100 | 11.27 | 10.00 | 5.65 | 952 |
| 220,462 | 26,420 | 37.00 | 32.9 | 18.56 | 2100 |
Features
Leak Proof Design
Engineered with reinforced seams and secure valves to prevent leaks during testing.
Versatile Applications
Suitable for load testing in construction, engineering, transportation, and industrial sectors.
Cost Effective
Eliminates the need for expensive traditional weights, reducing overall testing costs.
Safe to Use
Minimizes risks associated with handling heavy metal weights, ensuring a safer testing environment.
Applications
● Railway Track Testing
● Wind Turbine Foundation Testing
● Solar Panel Mount Testing
● Stadium Seating Testing
Advantages
Eco Friendly Manufacturing
Committed to sustainable practices, using water as a safe and environmentally friendly weighting agent.
Rigorous Quality Control
Implementing strict quality assurance protocols to ensure every Water Weight Bag meets industry standards.
Leak Proof Design
Reinforced seams and secure valves prevent leaks, ensuring reliable performance during testing.
High Load Capacity
Capable of simulating heavy loads, making our bags suitable for demanding testing scenarios.
FAQ
1. What industries use Water Weight Bags?
They are used in construction, engineering, transportation, aerospace, marine, and industrial sectors.
2. How accurate are Water Weight Bags for load testing?
They provide precise weight distribution and are highly accurate when filled to the required capacity.
3. Can Water Weight Bags be used on uneven surfaces?
Yes, their flexible design allows them to conform to uneven or irregular surfaces.
4. How long does it take to fill a Water Weight Bag?
Filling time depends on the bag’s size and water pressure, but it typically takes a few minutes to an hour.
