Water Weight Bag Leak Proof Design With Reinforced Seams And Low Maintenance Requirements.
Description

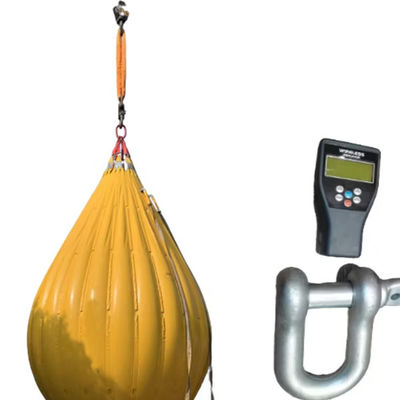

This Water Weight Bag is a game-changer for load testing, offering unparalleled portability and adjustability. Simply fill it with water to achieve the precise weight required for your testing scenario, and drain it for easy storage or transport. The bag’s durable, leak-proof design ensures reliable performance, even under heavy loads. Whether you’re testing bridges, cranes, or industrial equipment, this water weight bag provides a flexible and efficient solution. Its compact design when empty makes it a must-have tool for professionals who need a versatile and space-saving testing option.
Specifications
| Application | Proof Load Testing, Offshore Load Testing, Structural Load Testing, Ship Load Testing, Industrial Equipment Testing, Research and Development. |
| Content | 100% POLYVINYL CHLORIDE |
| Phthalate | 7P Phthalate Free (includes all Phthalates listed in CAL Prop 65, CPSIA and REACH) |
| Backing Material Size | 1.8/2.0 Mm X 1.55m, Thickness Produced As Per Your Request. |
| Weight | 37.1 oz square yard/ 1450 +- 50 GSM |
| Special | UV Resistant |
| 7P Phthalate Free (includes all Phthalates listed in CAL Prop 65, CPSIA and REACH) | |
| BPA Free / Tris Free / Formaldehyde Free | |
| Does Not Contain Conflict Minerals | |
| Care Instructions | Rinse With Fresh Water And Air Dry |
| Do Not Store with Seawater and Keep Away From Heat Sources | |
| Available sizes | 5000 kg |
| 8,000 kg | |
| 1,0000 kg | |
| 15,000 kg | |
| 20,000 kg | |
| 30,000 kg | |
| 50,000 kg | |
| 100,000 kg | |
| Special sizes could be customized | |
| OEM | Supported |
| MODEL | Weight | Volume | Empty Height (Length) |
Filled Height (Length) |
Max Diam (ø) |
Dry Weight without accessories |
| kg | Liters / m3 | m | m | m | kg | |
| lbs | USG | ft | ft | ft | lbs | |
| HM-1T | 1,000 | 1,000 / 1 | 2.52 | 2.23 | 1.39 | 36 |
| 2,204 | 264 | 8.27 | 7.33 | 4.56 | 80 | |
| HM-2T | 2,000 | 2,000 / 2 | 2.87 | 2.6 | 1.65 | 41 |
| 4,409 | 528 | 9.41 | 8.5 | 5.43 | 90 | |
| HM-3T | 3,000 | 3,000 / 3 | 3.38 | 2.97 | 1.82 | 50 |
| 6,613 | 792 | 11.11 | 9.75 | 6.0 | 110 | |
| HM-4T | 4,000 | 4,000 / 4 | 3.41 | 3.07 | 1.88 | 64 |
| 8,818 | 1,056 | 11.22 | 10.1 | 6.16 | 141 | |
| HM-5T | 5,000 | 5,000 / 5 | 4.14 | 3.52 | 2.13 | 80 |
| 11,023 | 1,320 | 13.60 | 11.58 | 7.0 | 176 | |
| HM-6T | 6,000 | 6,000 / 6 | 4.39 | 3.91 | 2.28 | 86 |
| 13,227 | 1,585 | 14.41 | 12.83 | 7.48 | 189 | |
| HM-8T | 8,000 | 8,000 / 8 | 4.54 | 3.93 | 2.52 | 104 |
| 17,636 | 2,113 | 14.91 | 12.91 | 8.27 | 230 | |
| HM-10T | 10,000 | 10,000 / 10 | 5.18 | 4.49 | 2.70 | 130 |
| 22,046 | 2,641 | 17.0 | 14.75 | 8.90 | 286 | |
| HM-12.5T | 12,500 | 12,500/ 12.5 | 5.43 | 4.62 | 2.86 | 154 |
| 27,558 | 3,302 | 17.91 | 15.16 | 9.39 | 340 | |
| HM-15T | 15,000 | 15,000 / 15 | 6.24 | 5.48 | 2.95 | 159 |
| 33,069 | 3,962 | 20.50 | 18.00 | 9.70 | 350 | |
| HM-20T | 20,000 | 20,000 / 20 | 6.78 | 6. 04 | 3.42 | 224 |
| 44,100 | 5,283 | 22.25 | 19.83 | 11.25 | 492 | |
| HM-25T | 25,000 | 25,000 / 25 | 7.51 | 6.40 | 3.75 | 315 |
| 55,115 | 6,604 | 24.66 | 21.0 | 12.33 | 695 | |
| HM-35T | 35,000 | 35,000 / 35 | 8.07 | 7.11 | 3.91 | 417 |
| 77,161 | 9,246 | 26.50 | 23.33 | 12.83 | 920 | |
| HM-40T | 40,000 | 40,000 / 40 | 8.71 | 7.72 | 4.07 | 440 |
| 88,184 | 10,566 | 28.58 | 25.33 | 13.36 | 970 | |
| HM-50T | 50,000 | 50,000 / 50 | 8.99 | 7.77 | 4.56 | 544 |
| 110,231 | 13,208 | 29.50 | 25.50 | 14.96 | 1200 | |
| HM-100T | 100,000 | 100,000 / 100 | 11.27 | 10.00 | 5.65 | 952 |
| 220,462 | 26,420 | 37.00 | 32.9 | 18.56 | 2100 |
Features
Customizable Sizes
Available in various sizes to accommodate different load testing requirements.
Quick Setup and Drainage
Easy to fill and drain, saving time and effort during testing procedures.
Accurate Weight Distribution
Conforms to surfaces for even weight distribution, ensuring reliable test results.
Weather-Resistant
Designed to withstand extreme weather conditions, including rain, heat, and cold.
Applications
● Scaffolding Stability Testing
● Temporary Structure Testing
● Aircraft Load Testing
● Marine Vessel Load Testing
Advantages
Durable and Weather Resistant
Designed to withstand harsh environmental conditions, including extreme temperatures and UV exposure.
Cost Effective Production
Leveraging economies of scale to provide affordable solutions without compromising quality.
Quick Turnaround Time
Efficient production processes enable fast delivery to meet tight project deadlines.
Global Export Experience
Proven track record of supplying Water Weight Bags to clients worldwide, ensuring compliance with international standards.
FAQ
1. What are the advantages of using Water Weight Bags over traditional weights?
They are more cost-effective, portable, eco-friendly, and safer to handle compared to metal weights.
2. How do I store a Water Weight Bag when not in use?
Empty the bag, fold it, and store it in a dry, cool place to maximize its lifespan.
3. Can Water Weight Bags be customized for specific projects?
Yes, they are available in various sizes and can be tailored to meet specific load testing requirements.
4. Are Water Weight Bags safe to use?
Yes, they eliminate the risks associated with handling heavy metal weights and are designed for safe operation.
