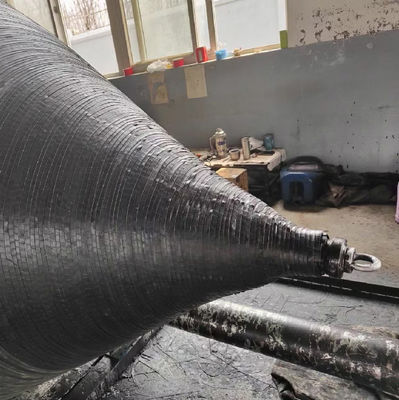

Inflatable Boat Rubber Ship Marine Airbag Resistant To Corrosion
Description
Marine air bags are designed for the lifting and positioning of large, submerged objects, including vessels, platforms, and machinery. The bags are widely used in marine salvage operations, harbor construction, and offshore oil and gas projects. Constructed with reinforced PVC material and heavy-duty straps, they offer both resilience and reliability in harsh marine environments. The bags are equipped with manual and automatic inflation valves, providing control over ascent speed and buoyancy adjustments. When operating marine air bags, it’s important to always inspect for signs of wear before use and avoid overloading the bag beyond its rated buoyancy capacity. Packaging is designed for secure transit, and shipping times depend on order size and location. We accept bank transfers and letters of credit as payment methods, ensuring smooth transactions. For warranty claims, please contact our support team for assistance with product repairs or replacements.
Specifications
| Product Name | Marine Air Bag |
| Material | 100% High Tensile NR |
| Dimensions |
Diameter 0.5m - 3.0m, Length 3.0m - 28.0m, or as Request |
| Working Pressure | 0.05-0.25MPA |
| Technology | Overall Winding, High Pressure, Explosion-proof |
| Metal Parts | Q355 / SS304 / SS316 |
| OEM | Supported |
| MOQ | 1 |
| Repair Tools | Electric Heating Plate, Repair Materials, Glue, Free of Charge |
| Standard | ISO14409:2011 |
| Certificate | ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS |
| Package | Pallets, Wooden Cases |
| Service Life | 20 Years |
| Warranty | 36 Months |
| Diameter |
Working Pressure |
Working Height |
Bearing Capacity | |
| KN/m | Ton/m | |||
| D=1.0m | 0.14Mpa | 0.6m | 87.96 | 8.98 |
| 0.5m | 109.96 | 11.22 | ||
| 0.4m | 131.95 | 13.46 | ||
| D=1.2m | 0.12Mpa | 0.7m | 94.25 | 9.62 |
| 0.6m | 113.10 | 11.54 | ||
| 0.5m | 131.95 | 13.46 | ||
| 0.4m | 150.80 | 15.39 | ||
| D=1.5m | 0.10Mpa | 0.9m | 94.25 | 9.62 |
| 0.8m | 109.96 | 11.22 | ||
| 0.7m | 125.66 | 12.82 | ||
| 0.6m | 141.37 | 14.43 | ||
| 0.5m | 157.08 | 16.03 | ||
| D=1.8m | 0.09Mpa | 1.1m | 98.96 | 10.10 |
| 1.0m | 113.10 | 11.54 | ||
| 0.9m | 127.33 | 12.98 | ||
| 0.8m | 141.37 | 14.43 | ||
| 0.7m | 155.51 | 15.87 | ||
| 0.6m | 169.65 | 17.31 | ||
| D=2.0m | 0.08Mpa | 1.2m | 100.53 | 10.26 |
| 1.1m | 113.10 | 11.54 | ||
| 1.0m | 125.66 | 12.82 | ||
| 0.9m | 138.23 | 14.11 | ||
| 0.8m | 150.80 | 15.39 | ||
| 0.7m | 163.36 | 16.67 | ||
| 0.6m | 175.93 | 17.95 | ||
| * Other size can be provided follow client's requirements. | ||||
Features
Applications

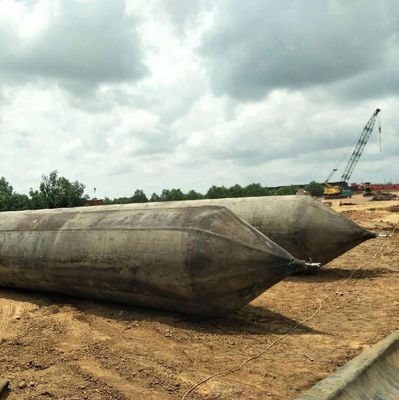

● Ship launching and dry docking
Advantages
FAQ
