2.5M Lifting Landing Barges Marine/Boat/Vessel/Ship Launching Balloon for Shipyards Docking/Undocking
Description

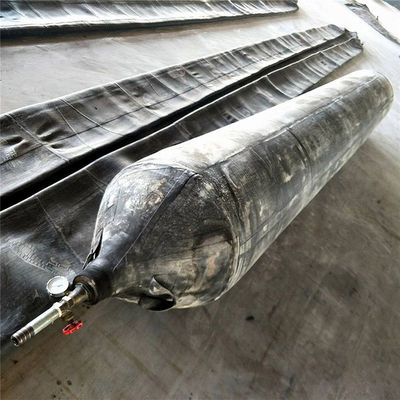

Ship launching balloons are inflatable airbags that play a crucial role in the safe and efficient launching of ships into the water. These high-pressure airbags are designed to provide buoyancy and support vessels during the launching process. They are made from strong, durable materials that can withstand the immense pressure exerted by the weight of the ship.
With their ability to evenly distribute the load and absorb impact, ship launching balloons offer a secure and controlled launch for all types of vessels, including large ships and offshore structures. Their flexibility allows for easy adjustment to various hull shapes and sizes.
Our factory specializes in the manufacturing of ship launching balloons, offering a range of customized options to meet the unique requirements of our clients. Using advanced technology and strict quality control measures, we ensure that our balloons provide excellent performance and reliable functionality.
Our ship launching balloons are trusted by shipyards, naval architects, and maritime industries worldwide. They are known for their durability, efficiency, and safety, making them an essential component in ship launching operations. Choose our ship launching balloons for a cost-effective, reliable, and safe solution to your vessel launching needs. With our expertise and commitment to quality, we guarantee customer satisfaction and the successful launch of your ships.
Specifications
| Place of Origin | China |
| Brand Name | Hongruntong Marine |
| Model Number | HM-SLB1.0*10M |
| Product Name | Ship Launching Balloon, Marine Inflatable Balloons |
| Material | Impact-Resistant Natrual Rubber |
| Warranty | 3 Years |
| Appearance | Smooth Rubber |
| Quality Certification | ISO14409:2011 |
| Standard | ABS, BV, DNV, LR, SGS |
| Shape | Cylindrical |
| Color | Black |
| Diameter | 500-4500 mm |
| Length | 3000-28000 mm |
| Thickness | 5-13 layers |
| Capacity | 20-500 tons |
| Application | Ship Launching/Docking/Lifting |
| Diameter |
Working Pressure |
Working Height |
Bearing Capacity | |
| KN/m | Ton/m | |||
| D=1.0m | 0.14Mpa | 0.6m | 87.96 | 8.98 |
| 0.5m | 109.96 | 11.22 | ||
| 0.4m | 131.95 | 13.46 | ||
| D=1.2m | 0.12Mpa | 0.7m | 94.25 | 9.62 |
| 0.6m | 113.10 | 11.54 | ||
| 0.5m | 131.95 | 13.46 | ||
| 0.4m | 150.80 | 15.39 | ||
| D=1.5m | 0.10Mpa | 0.9m | 94.25 | 9.62 |
| 0.8m | 109.96 | 11.22 | ||
| 0.7m | 125.66 | 12.82 | ||
| 0.6m | 141.37 | 14.43 | ||
| 0.5m | 157.08 | 16.03 | ||
| D=1.8m | 0.09Mpa | 1.1m | 98.96 | 10.10 |
| 1.0m | 113.10 | 11.54 | ||
| 0.9m | 127.33 | 12.98 | ||
| 0.8m | 141.37 | 14.43 | ||
| 0.7m | 155.51 | 15.87 | ||
| 0.6m | 169.65 | 17.31 | ||
| D=2.0m | 0.08Mpa | 1.2m | 100.53 | 10.26 |
| 1.1m | 113.10 | 11.54 | ||
| 1.0m | 125.66 | 12.82 | ||
| 0.9m | 138.23 | 14.11 | ||
| 0.8m | 150.80 | 15.39 | ||
| 0.7m | 163.36 | 16.67 | ||
| 0.6m | 175.93 | 17.95 | ||
| * Other size can be produced follow client's requirements. | ||||
Features
High-pressure resistance
Ship launching balloons are constructed with strong, durable materials that can withstand high levels of pressure. This feature ensures their ability to safely support the weight of ships during the launch process without deformation or damage.
Even load distribution
Ship launching balloons are designed to evenly distribute the load of the vessel being launched. This feature helps prevent any excessive stress on specific areas of the ship's hull, ensuring a balanced and controlled launch.
Flexibility and adaptability
Ship launching balloons offer flexibility in terms of adjusting to various hull shapes and sizes. This adaptability enables shipyards to use them for launching different types of vessels, including large ships and offshore structures.
Safety and reliability
With their excellent performance and strict quality control measures, ship launching balloons provide a safe and reliable solution for ship launching operations. Their ability to absorb impact and provide buoyancy ensures a secure launch, reducing the risk of accidents or damage to the ship or surrounding infrastructure.
Applications
● Launching of ships on slipways.
● Raising and positioning of offshore equipment.
● Lifting and positioning of heavy objects during marine engineering projects.
● Launching of barges and other watercraft.
● Docking and undocking of vessels in shipyards or ports.
● Moving and positioning of large floating structures such as oil rigs.
● Support during salvage operations.
● Construction or maintenance of coastal infrastructure such as piers and wharfs.
● Removal of vessels from the water for repairs or maintenance.
● Transportation and deployment of marine aids to navigation.
Advantages
High-quality materials
We use only the highest quality materials and technology to produce our ship launching balloons, ensuring superior performance and durability.
Customized solutions
We work closely with our customers to provide customized solutions tailored to their specific needs and requirements.
Professional expertise
Our highly skilled and experienced team has extensive expertise in the production, design, and application of ship launching balloons.
Outstanding customer service
We are committed to providing exceptional customer service, responding promptly to inquiries and working closely with customers to ensure their satisfaction.
