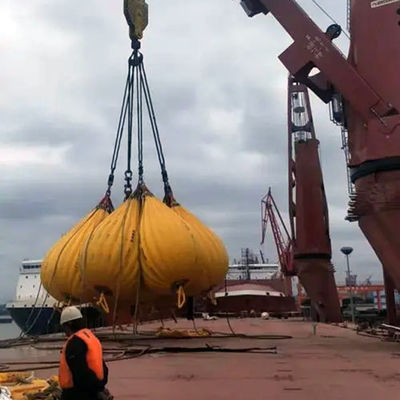

Shipyard Offshore Load Test With Water Bag Lifeboat Load Test Water Bags Procedure
Description
Load Test Water Bags are essential tools for conducting load tests in various industries. These bags are designed to simulate the weight and force exerted on structures, equipment, and other objects during their operational lifespan.
Our Load Test Water Bags are manufactured with utmost precision and attention to detail. They are made from durable and reliable materials, ensuring their ability to withstand extreme conditions and repeated use. The bags are available in various capacities to accommodate different load testing requirements.
One of the key advantages of our Load Test Water Bags is their versatility and ease of use. They can be easily filled, emptied, and transported, making them highly convenient for different load testing applications. Additionally, our bags are equipped with user-friendly features such as multiple filling valves, pressure relief valves, and reinforced handles for enhanced safety and control.
Whether it's for load testing cranes, bridges, offshore structures, or any other demanding application, our Load Test Water Bags provide a reliable and cost-effective solution. We take pride in delivering products that meet the highest industry standards, ensuring accuracy and dependability in load testing operations.
Specifications
| Application | Proof Load Testing, Offshore Load Testing, Structural Load Testing, Ship Load Testing, Industrial Equipment Testing, Research and Development. |
| Content | 100% POLYVINYL CHLORIDE |
| PHTHALATE | 7P Phthalate Free (includes all Phthalates listed in CAL Prop 65, CPSIA and REACH) |
| Backing Material Size | 1.8/2.0 MM X 1.55M, thickness produced as per your request. |
| Weight | 37.1 oz square yard/ 1450 +- 50 GSM |
| Special | UV Resistant |
| 7P Phthalate Free (includes all Phthalates listed in CAL Prop 65, CPSIA and REACH) | |
| BPA Free / Tris Free / Formaldehyde Free | |
| Does not contain Conflict Minerals | |
| CARE INSTRUCTIONS | Rinse with fresh water and air dry |
| Do not store with seawater and keep away from heat sources | |
| Available sizes | 5000 kg |
| 8,000 kg | |
| 1,0000 kg | |
| 15,000 kg | |
| 20,000 kg | |
| 30,000 kg | |
| 50,000 kg | |
| 100,000 kg | |
| Special sizes could be customized | |
| OEM | Supported |
| MODEL | Weight | Volume | Empty Height (Length) |
Filled Height (Length) |
Max Diam (ø) |
Dry Weight without accessories |
| kg | Liters / m3 | m | m | m | kg | |
| lbs | USG | ft | ft | ft | lbs | |
| HM-1T | 1,000 | 1,000 / 1 | 2.52 | 2.23 | 1.39 | 36 |
| 2,204 | 264 | 8.27 | 7.33 | 4.56 | 80 | |
| HM-2T | 2,000 | 2,000 / 2 | 2.87 | 2.6 | 1.65 | 41 |
| 4,409 | 528 | 9.41 | 8.5 | 5.43 | 90 | |
| HM-3T | 3,000 | 3,000 / 3 | 3.38 | 2.97 | 1.82 | 50 |
| 6,613 | 792 | 11.11 | 9.75 | 6.0 | 110 | |
| HM-4T | 4,000 | 4,000 / 4 | 3.41 | 3.07 | 1.88 | 64 |
| 8,818 | 1,056 | 11.22 | 10.1 | 6.16 | 141 | |
| HM-5T | 5,000 | 5,000 / 5 | 4.14 | 3.52 | 2.13 | 80 |
| 11,023 | 1,320 | 13.60 | 11.58 | 7.0 | 176 | |
| HM-6T | 6,000 | 6,000 / 6 | 4.39 | 3.91 | 2.28 | 86 |
| 13,227 | 1,585 | 14.41 | 12.83 | 7.48 | 189 | |
| HM-8T | 8,000 | 8,000 / 8 | 4.54 | 3.93 | 2.52 | 104 |
| 17,636 | 2,113 | 14.91 | 12.91 | 8.27 | 230 | |
| HM-10T | 10,000 | 10,000 / 10 | 5.18 | 4.49 | 2.70 | 130 |
| 22,046 | 2,641 | 17.0 | 14.75 | 8.90 | 286 | |
| HM-12.5T | 12,500 | 12,500/ 12.5 | 5.43 | 4.62 | 2.86 | 154 |
| 27,558 | 3,302 | 17.91 | 15.16 | 9.39 | 340 | |
| HM-15T | 15,000 | 15,000 / 15 | 6.24 | 5.48 | 2.95 | 159 |
| 33,069 | 3,962 | 20.50 | 18.00 | 9.70 | 350 | |
| HM-20T | 20,000 | 20,000 / 20 | 6.78 | 6. 04 | 3.42 | 224 |
| 44,100 | 5,283 | 22.25 | 19.83 | 11.25 | 492 | |
| HM-25T | 25,000 | 25,000 / 25 | 7.51 | 6.40 | 3.75 | 315 |
| 55,115 | 6,604 | 24.66 | 21.0 | 12.33 | 695 | |
| HM-35T | 35,000 | 35,000 / 35 | 8.07 | 7.11 | 3.91 | 417 |
| 77,161 | 9,246 | 26.50 | 23.33 | 12.83 | 920 | |
| HM-40T | 40,000 | 40,000 / 40 | 8.71 | 7.72 | 4.07 | 440 |
| 88,184 | 10,566 | 28.58 | 25.33 | 13.36 | 970 | |
| HM-50T | 50,000 | 50,000 / 50 | 8.99 | 7.77 | 4.56 | 544 |
| 110,231 | 13,208 | 29.50 | 25.50 | 14.96 | 1200 | |
|
HM-100T |
100,000 | 100,000 / 100 | 11.27 | 10.00 | 5.65 | 952 |
| 220,462 | 26,420 | 37.00 | 32.9 | 18.56 | 2100 |
Features
Durable Material
Load Test Water Bags are constructed using durable and reliable materials that can withstand extreme conditions and repeated use. This ensures their longevity and reliability during load testing operations.
Versatility
These bags are designed to be versatile, accommodating various load testing requirements. They can be used for load testing cranes, bridges, offshore structures, and other applications in different industries.
Easy to Use
Load Test Water Bags are user-friendly, making them easy to fill, empty, and transport. They are equipped with multiple filling valves, pressure relief valves, and reinforced handles, ensuring safety and control during the load testing process.
Cost-effective Solution
Using Load Test Water Bags is a cost-effective alternative to traditional load testing methods. They eliminate the need for expensive and time-consuming equipment, providing an efficient and economical solution for conducting load tests.
Applications
● Crane load testing
● Bridge load testing
● Offshore structure load testing
● Building load testing
● Tension structure load testing
● Container load testing
● Industrial equipment load testing
● Pipeline load testing
● Dam load testing
● Lifting equipment load testing
Advantages
High-quality materials
We use premium-grade materials in the manufacturing of our Load Test Water Bags, ensuring durability, reliability, and long-lasting performance.
Customization options
We offer a wide range of customization options for our Load Test Water Bags, allowing our clients to tailor the bags to their specific testing needs and requirements.
Precision engineering
Our Load Test Water Bags are designed and engineered with utmost precision, ensuring accurate load testing results and optimal safety during testing operations.
Exceptional customer service
We take pride in providing exceptional customer service, offering prompt assistance, expert guidance, and timely delivery to ensure customer satisfaction throughout the purchase and usage process.
