Reliable Marine Rubber Airbags For Efficient Ship Launching And Docking Operations
Description

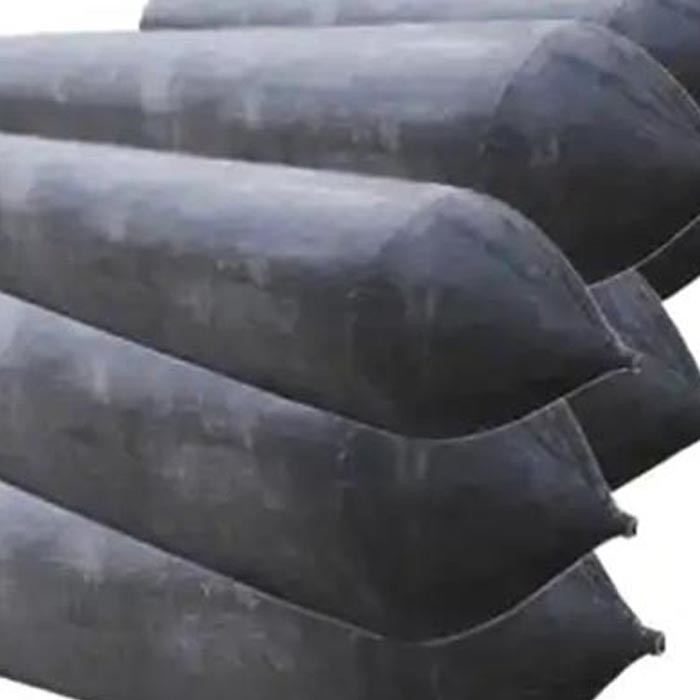

Marine Rubber Airbags are pioneering solutions designed for ship launching, docking, and heavy lifting operations in the maritime industry. Engineered with cutting edge technology, these airbags offer unrivaled flexibility, strength, and efficiency.
Made with high quality rubber materials, Marine Rubber Airbags are known for their exceptional durability and resistance to corrosion, abrasion, and extreme weather conditions. They are designed to withstand heavy loads and provide optimal buoyancy and stability, ensuring safe and smooth ship launching and docking operations.
These airbags are versatile and easy to use, providing cost-effective and time-saving alternatives to traditional methods of ship launching and lifting. Their innovative design allows for easy transportation, storage, and installation, making them ideal for a wide range of marine projects.
With their reliable performance and stringent quality standards, Marine Rubber Airbags have gained widespread recognition and trust from shipbuilders, port authorities, and marine construction firms globally. They are widely used in various applications, such as ship launching, floating bridge installation, salvage operations, and underwater pipeline installation.
Specifications
| Product Name | Reliable Marine Rubber Airbags For Efficient Ship Launching And Docking Operations |
| Keywords | Marine Airbags for Launching |
| Material | 100% High Grade Natural Rubber (NR) |
| Dimensions |
Diameter 0.5m - 3.0m, Length 3.0m - 28.0m, or As Request |
| Working Pressure | 0.05-0.25MPA |
| Technology | High Pressure, Overall Winding, Explosion-proof |
| Metal Parts | Q355 / SS304 / SS316 |
| OEM | Supported |
| MOQ | 1 |
| Repair Tools | Electric Heating Plate, Repair Materials, Glue, Free of Charge |
| Standard | ISO14409:2011 |
| Certificate | ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS |
| Package | Pallets, Wooden Cases |
| Service Life | 20 Years |
| Warranty | 36 Months |
| Diameter |
Working Pressure |
Working Height |
Bearing Capacity | |
| KN/m | Ton/m | |||
| D=1.0m | 0.14Mpa | 0.6m | 87.96 | 8.98 |
| 0.5m | 109.96 | 11.22 | ||
| 0.4m | 131.95 | 13.46 | ||
| D=1.2m | 0.12Mpa | 0.7m | 94.25 | 9.62 |
| 0.6m | 113.10 | 11.54 | ||
| 0.5m | 131.95 | 13.46 | ||
| 0.4m | 150.80 | 15.39 | ||
| D=1.5m | 0.10Mpa | 0.9m | 94.25 | 9.62 |
| 0.8m | 109.96 | 11.22 | ||
| 0.7m | 125.66 | 12.82 | ||
| 0.6m | 141.37 | 14.43 | ||
| 0.5m | 157.08 | 16.03 | ||
| D=1.8m | 0.09Mpa | 1.1m | 98.96 | 10.10 |
| 1.0m | 113.10 | 11.54 | ||
| 0.9m | 127.33 | 12.98 | ||
| 0.8m | 141.37 | 14.43 | ||
| 0.7m | 155.51 | 15.87 | ||
| 0.6m | 169.65 | 17.31 | ||
| D=2.0m | 0.08Mpa | 1.2m | 100.53 | 10.26 |
| 1.1m | 113.10 | 11.54 | ||
| 1.0m | 125.66 | 12.82 | ||
| 0.9m | 138.23 | 14.11 | ||
| 0.8m | 150.80 | 15.39 | ||
| 0.7m | 163.36 | 16.67 | ||
| 0.6m | 175.93 | 17.95 | ||
| * Other size can be provided follow client's requirements. | ||||
Features
Unparalleled Strength and Durability
Marine Rubber Airbags are engineered with high-quality rubber materials that offer exceptional strength and durability. They can withstand heavy loads and resist corrosion, abrasion, and extreme weather conditions, ensuring long lasting performance and reliability.
Versatility and Easy Installation
These airbags are designed to be versatile and easy to use. They can be easily transported, stored, and installed, making them suitable for a wide range of marine projects. Their user-friendly design and installation process save both time and effort, providing efficient solutions for ship launching and heavy lifting operations.
Optimal Buoyancy and Stability
Marine Rubber Airbags are designed to provide optimal buoyancy and stability during ship launching and docking operations. Their construction allows for even weight distribution, ensuring a smooth and controlled descent of vessels. This feature minimizes the risk of accidents and enhances the safety of marine operations.
Cost Effective and Environmentally Friendly
Marine Rubber Airbags offer a cost-effective and environmentally friendly alternative to traditional ship launching and lifting methods. They require minimal infrastructure and machinery, reducing overall project costs. Additionally, their use reduces the environmental impact by eliminating the need for permanent installations and minimizing disturbance to marine ecosystems.
Applications
● Offshore construction
● Marine transportation and logistics
● Port and harbor maintenance
● Marine engineering projects
● Coastal protection and erosion control
● Offshore oil and gas exploration and production
● Marine research and exploration
Advantages
Extensive Manufacturing Experience
With over 30 years of manufacturing experience, our factory has developed extensive expertise in producing high-quality Marine Rubber Airbags. Our team understands the intricacies of the production process and has refined techniques to ensure consistent product quality.
Advanced Technology and Equipment
We invest in the latest technology and equipment to enhance our manufacturing capabilities. Our factory is equipped with state-of-the-art machinery and tools that enable precise and efficient production of Marine Rubber Airbags. This allows us to meet stringent quality standards and deliver superior products to our customers.
Customization and Flexibility
We understand that different marine projects have unique requirements. Therefore, we offer customization options to tailor our Marine Rubber Airbags according to specific project needs. Our flexibility in manufacturing allows us to provide tailored solutions that meet the exact specifications and demands of our customers.
Strict Quality Control Measures
Quality is our top priority. Our factory implements strict quality control measures at every stage of the manufacturing process. We carry out comprehensive inspections and testing to ensure that each Marine Rubber Airbag meets or exceeds industry standards. This commitment to quality ensures that our products perform optimally and reliably in various marine applications.
