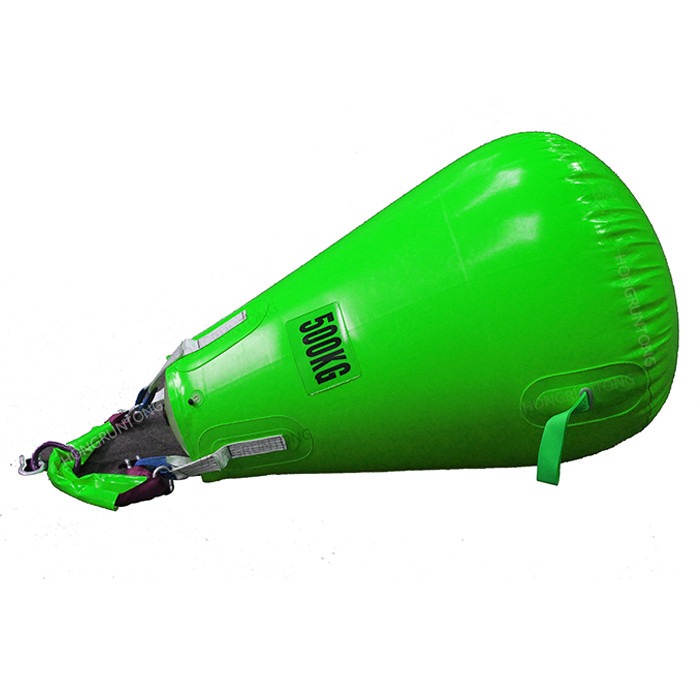

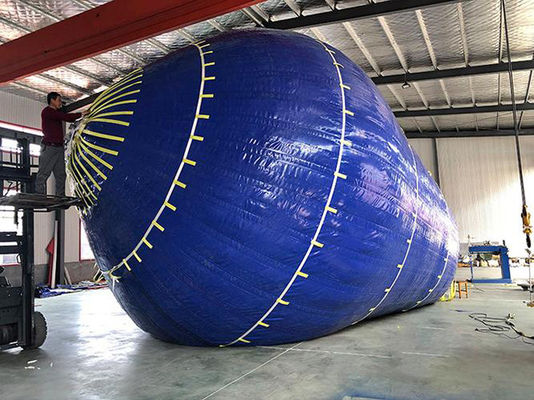

Float Marine Lift Heavy Duty Inflatable Air Bags Underwater Salvage
Description
Heavy Duty Inflatable Air Bags are innovative devices designed to facilitate marine and industrial operations. Featuring a robust construction of high-strength rubber and multiple layers of synthetic fabric, they deliver excellent durability and load-bearing capacity. Widely used in shipyards, construction sites, and emergency response scenarios, these air bags provide a flexible and efficient alternative for lifting and moving heavy objects. Their ease of use, combined with low maintenance requirements, makes them a popular choice for engineers and operators worldwide. By minimizing setup time and operational complexity, these air bags contribute to streamlined processes and improved efficiency.
Specifications
| Model | Lifting Capacity | Dimensions | Appr. Weight | |
| Parachute | [kg] | [lbs] | [mm] | [kg] |
| HM-P01 | 200 | 441 | 800 | 5 |
| HM-P02 | 500 | 1,103 | 1,000 | 8 |
| HM-P03 | 1,000 | 2,205 | 1,300 | 11 |
| HM-P04 | 2,000 | 4,410 | 1,600 | 20 |
| HM-P05 | 4,000 | 8,820 | 2,000 | 50 |
| HM-P06 | 6,000 | 13,230 | 2,300 | 66 |
| HM-P07 | 8,000 | 17,640 | 2,500 | 75 |
| HM-P08 | 10,000 | 22,050 | 2,700 | 80 |
| HM-P09 | 15,000 | 33,075 | 3,100 | 110 |
| HM-P10 | 20,000 | 44,100 | 3,400 | 130 |
| HM-P11 | 30,000 | 66,150 | 3,900 | 170 |
| HM-P12 | 50,000 | 110,250 | 4,600 | 220 |
| HM-P13 | 70,000 | 154,350 | 5,200 | 310 |
| HM-P14 | 100,000 | 220,500 | 5,800 | 450 |
| HM-P15 | 150,000 | 330,750 | 6,600 | 660 |
| HM-P16 | 200,000 | 441,000 | 7,300 | 900 |
| *Note: Other sizes can be customized according to the requirements. | ||||
| Model | Buoyancy | Diameter | Length | Appr. Weight | ||
| Cylindrical | [kg] | [lbs] | [mm] | [mm] | [kg] | |
| HM-C01 | 200 | 441 | 500 | 1,000 | 5 | |
| HM-C02 | 500 | 1,103 | 800 | 1,000 | 8 | |
| HM-C03 | 1,000 | 2,205 | 1,000 | 1,500 | 11 | |
| HM-C04 | 2,000 | 4,410 | 1,300 | 1,500 | 20 | |
| HM-C05 | 4,000 | 8,820 | 1,600 | 2,000 | 50 | |
| HM-C06 | 6,000 | 13,230 | 2,000 | 2,000 | 66 | |
| HM-C07 | 8,000 | 17,640 | 2,000 | 2,600 | 75 | |
| HM-C08 | 10,000 | 22,050 | 2,400 | 2,400 | 80 | |
| HM-C09 | 15,000 | 33,075 | 2,600 | 3,000 | 110 | |
| HM-C10 | 20,000 | 44,100 | 3,000 | 3,000 | 130 | |
| HM-C11 | 30,000 | 66,150 | 3,000 | 4,500 | 170 | |
| HM-C12 | 50,000 | 110,250 | 4,000 | 4,000 | 220 | |
| HM-C13 | 70,000 | 154,350 | 4,000 | 5,700 | 310 | |
| HM-C14 | 100,000 | 220,500 | 4,000 | 8,000 | 450 | |
| HM-C15 | 150,000 | 330,750 | 5,000 | 8,000 | 660 | |
| HM-C16 | 200,000 | 441,000 | 5,000 | 10,000 | 900 | |
| *Note: Other sizes can be customized according to the requirements. | ||||||
|
Model |
Capacity |
Length |
Width |
|
|---|---|---|---|---|
|
Pillow |
[kg] |
[lbs] |
[mm] |
[mm] |
| HM-P100 | 100 | 220 | 1,020 | 760 |
| HM-P250 | 250 | 550 | 1,320 | 820 |
| HM-P500 | 500 | 1,100 | 1,300 | 1,200 |
| HM-P1000 | 1,000 | 2,200 | 1,550 | 1,420 |
| HM-P2000 | 2,000 | 4,400 | 1,950 | 1,780 |
| HM-P3000 | 3,000 | 6,600 | 2,900 | 1,950 |
| HM-P5000 | 5,000 | 11,000 | 3,230 | 2,030 |
| *Note: Other sizes can be customized according to the requirements. | ||||
Features
Lightweight Design
Despite their high lifting capacity, these bags are lightweight, facilitating transportation and installation. Their buoyant nature further simplifies handling, even in challenging underwater environments.
Pressure Resistant
Engineered to handle high-pressure environments, Underwater Air Lift Bags maintain their structural integrity at significant depths. This feature is essential for operations conducted in deep waters, ensuring reliability under challenging conditions.
Environmentally Friendly
These air lift bags are designed to minimize environmental impact. Made from materials that are resistant to deterioration, they do not contribute hazardous materials to aquatic ecosystems, making them a responsible choice for underwater lifting.
Customizable Sizes
Available in multiple sizes and lifting capacities, Underwater Air Lift Bags can be customized to meet specific project requirements. This adaptability allows for precise lifting solutions tailored to individual needs.
Applications
● Raising submerged vehicles
Advantages
FAQ
