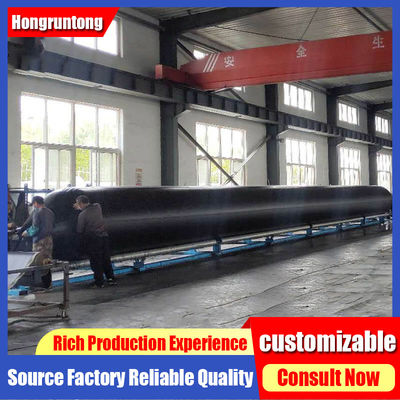

1.8m×15m Inflatable Ship Airbags Steel Cord Reinforcement Automatic Pressure Balancing
Description
Hongruntong Marine’s Eco-Friendly Airbag Launching System combines sustainability with high performance. Made from recyclable, non-toxic materials, it eliminates oil pollution and reduces coastal disruption, complying with IMO environmental standards. The low-noise, zero-emission operation makes it ideal for sensitive marine ecosystems.
With a lightweight yet robust design, these airbags support vessels up to 5,000 tons while ensuring minimal impact on marine life. The energy-efficient inflation system cuts fuel consumption by 40% compared to crane-assisted launches. This solution is particularly suited for European and North American markets with strict environmental regulations.
Specifications
| Item |
Description |
| Place of Origin |
China |
| Brand Name |
Hongruntong Marine |
| Material |
Industrial-Grade Natural Rubber |
| Diameter |
0.5m-3.0m, or as Request |
| Length |
1.0m-28.0m, or as Request |
| Working Pressure |
0.05-0.25 Mpa |
| Technics |
High Pressure, Overall Winding, Explosion-Proof |
| Use |
Ship Launching and Docking |
| Thickness |
5-13 ply |
| Standard |
Conducted by ISO14409 and GB/T1590-2006 system. |
| Accessories |
Q355/SS304/SS316, Pressure Gauge, Tee, Plug, Switch, Inflation Tube |
| Packaging |
Inner-Plastic Bag; Outer-Standard Wooden Pallets. |
| Keywords |
Airbag Launching Ship |
| Certificates |
ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS |
| MOQ |
1 |
| OEM |
Welcome |
| Diameter |
Working
Pressure
|
Working
Height
|
Bearing Capacity |
| KN/m |
Ton/m |
| D=1.0m |
0.14Mpa |
0.6m |
87.96 |
8.98 |
| 0.5m |
109.96 |
11.22 |
| 0.4m |
131.95 |
13.46 |
| D=1.2m |
0.12Mpa |
0.7m |
94.25 |
9.62 |
| 0.6m |
113.10 |
11.54 |
| 0.5m |
131.95 |
13.46 |
| 0.4m |
150.80 |
15.39 |
| D=1.5m |
0.10Mpa |
0.9m |
94.25 |
9.62 |
| 0.8m |
109.96 |
11.22 |
| 0.7m |
125.66 |
12.82 |
| 0.6m |
141.37 |
14.43 |
| 0.5m |
157.08 |
16.03 |
| D=1.8m |
0.09Mpa |
1.1m |
98.96 |
10.10 |
| 1.0m |
113.10 |
11.54 |
| 0.9m |
127.33 |
12.98 |
| 0.8m |
141.37 |
14.43 |
| 0.7m |
155.51 |
15.87 |
| 0.6m |
169.65 |
17.31 |
| D=2.0m |
0.08Mpa |
1.2m |
100.53 |
10.26 |
| 1.1m |
113.10 |
11.54 |
| 1.0m |
125.66 |
12.82 |
| 0.9m |
138.23 |
14.11 |
| 0.8m |
150.80 |
15.39 |
| 0.7m |
163.36 |
16.67 |
| 0.6m |
175.93 |
17.95 |
| * Other size can be produced follow client's requirements. |
Features
Custom Engineering
Tailored solutions for unique projects, including 3D hull profiling and variable-diameter airbags (0.8m–4.0m) for specialized vessels.
Extended Lifespan
Designed for 500+ launch cycles with wear indicators and backed by a 10-year material warranty.
All Weather Performance
Operates in extreme temperatures (-30°C to +65°C) with hydrophobic coatings to prevent ice buildup in cold climates.
Smart Monitoring
IoT-enabled sensors provide real-time pressure and temperature tracking, with cloud-based analytics for predictive maintenance.
Applications
● Passenger ship launching
● Barge launching
● Dredger launching
● Naval ship launching
● Ferry launching
Advantages
Rapid Deployment Capability
Emergency response systems can be operational within 3 hours worldwide.
Eco Friendly Operations
Our manufacturing processes and materials meet the strictest international environmental regulations.
Custom Engineering Solutions
We provide tailored systems for unique project requirements with 3D hull profiling technology.
Extended Service Life
Typical lifespan exceeds 500 launches with proper maintenance.
FAQ
1. What's your lead time for standard orders?
Standard systems ship within 4 weeks; custom solutions require 8-12 weeks.
2. Do you offer leasing options?
Yes, we provide flexible lease-to-own financing programs.
3. How do you handle emergency deflation?
All systems include rapid-deflation valves that empty in under 90 seconds.
4. What maintenance is required between launches?
We recommend visual inspection and pressure testing after every 10 launches.
