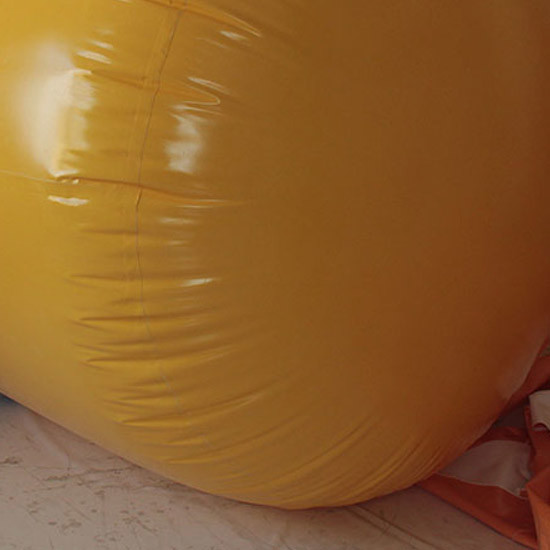

Marine Heavy Duty Inflatable Underwater Lift Bags for Sunken Ship
Description
Specifications
| Model | Lifting Capacity | Dimensions | Appr. Weight | |
| Parachute | [kg] | [lbs] | [mm] | [kg] |
| HM-P01 | 200 | 441 | 800 | 5 |
| HM-P02 | 500 | 1,103 | 1,000 | 8 |
| HM-P03 | 1,000 | 2,205 | 1,300 | 11 |
| HM-P04 | 2,000 | 4,410 | 1,600 | 20 |
| HM-P05 | 4,000 | 8,820 | 2,000 | 50 |
| HM-P06 | 6,000 | 13,230 | 2,300 | 66 |
| HM-P07 | 8,000 | 17,640 | 2,500 | 75 |
| HM-P08 | 10,000 | 22,050 | 2,700 | 80 |
| HM-P09 | 15,000 | 33,075 | 3,100 | 110 |
| HM-P10 | 20,000 | 44,100 | 3,400 | 130 |
| HM-P11 | 30,000 | 66,150 | 3,900 | 170 |
| HM-P12 | 50,000 | 110,250 | 4,600 | 220 |
| HM-P13 | 70,000 | 154,350 | 5,200 | 310 |
| HM-P14 | 100,000 | 220,500 | 5,800 | 450 |
| HM-P15 | 150,000 | 330,750 | 6,600 | 660 |
| HM-P16 | 200,000 | 441,000 | 7,300 | 900 |
| *Note: Other sizes can be customized according to the requirements. | ||||
| Model | Buoyancy | Diameter | Length | Appr. Weight | ||
| Cylindrical | [kg] | [lbs] | [mm] | [mm] | [kg] | |
| HM-C01 | 200 | 441 | 500 | 1,000 | 5 | |
| HM-C02 | 500 | 1,103 | 800 | 1,000 | 8 | |
| HM-C03 | 1,000 | 2,205 | 1,000 | 1,500 | 11 | |
| HM-C04 | 2,000 | 4,410 | 1,300 | 1,500 | 20 | |
| HM-C05 | 4,000 | 8,820 | 1,600 | 2,000 | 50 | |
| HM-C06 | 6,000 | 13,230 | 2,000 | 2,000 | 66 | |
| HM-C07 | 8,000 | 17,640 | 2,000 | 2,600 | 75 | |
| HM-C08 | 10,000 | 22,050 | 2,400 | 2,400 | 80 | |
| HM-C09 | 15,000 | 33,075 | 2,600 | 3,000 | 110 | |
| HM-C10 | 20,000 | 44,100 | 3,000 | 3,000 | 130 | |
| HM-C11 | 30,000 | 66,150 | 3,000 | 4,500 | 170 | |
| HM-C12 | 50,000 | 110,250 | 4,000 | 4,000 | 220 | |
| HM-C13 | 70,000 | 154,350 | 4,000 | 5,700 | 310 | |
| HM-C14 | 100,000 | 220,500 | 4,000 | 8,000 | 450 | |
| HM-C15 | 150,000 | 330,750 | 5,000 | 8,000 | 660 | |
| HM-C16 | 200,000 | 441,000 | 5,000 | 10,000 | 900 | |
| *Note: Other sizes can be customized according to the requirements. | ||||||
|
Model |
Capacity |
Length |
Width |
|
|---|---|---|---|---|
|
Pillow |
[kg] |
[lbs] |
[mm] |
[mm] |
| HM-P100 | 100 | 220 | 1,020 | 760 |
| HM-P250 | 250 | 550 | 1,320 | 820 |
| HM-P500 | 500 | 1,100 | 1,300 | 1,200 |
| HM-P1000 | 1,000 | 2,200 | 1,550 | 1,420 |
| HM-P2000 | 2,000 | 4,400 | 1,950 | 1,780 |
| HM-P3000 | 3,000 | 6,600 | 2,900 | 1,950 |
| HM-P5000 | 5,000 | 11,000 | 3,230 | 2,030 |
| *Note: Other sizes can be customized according to the requirements. | ||||
Features
High Load Capacity
Heavy Duty Inflatable Air Bags are engineered to handle demanding lifting tasks with remarkable strength. Each air bag can support up to 15 tons, making them ideal for a variety of industrial applications. Whether you’re dealing with heavy machinery in a construction site or handling oversized vehicles in an automotive repair shop, these bags provide the robust performance you need. This high load capacity not only enhances productivity but also ensures safety, eliminating the risks associated with inadequate lifting tools.
Quick Inflation and Deflation
Time is critical in any lifting operation, and our Inflatable Air Bags excel in this regard. The design features efficient air valves that allow for quick and easy inflation and deflation. Within minutes, you can prepare the bags for use, drastically reducing downtime during heavy lifting jobs. The straightforward operation means that even untrained personnel can safely deploy the bags, further driving efficiency in your operations.
Durable Materials, Puncture Resistant
Constructed from high-quality, reinforced rubberized fabric, these air bags are built to last. Our materials have undergone rigorous testing for wear resistance and puncture prevention. In environments where abrasions and impact are common, you can rely on the durability of our Heavy Duty Inflatable Air Bags to perform under pressure, ensuring longevity and reliability even in the harshest conditions.
Applications
● Supporting underwater inspections
Advantages
FAQ
Q1: What’s the production standard, and safety factor?
A1: All underwater air lift bags are manufactured in compliance with IMCAD016. Safety factor is 5:1. All crane load test water bags are manufactured in compliance with LEEA 051. Safety factor is 6:1.
Q2: Can you put the client's LOGO in your products?
A2: Yes, we can do. As long as receive your request, we could produce accordingly.
Q3: What’s your delivery time and payment terms?
A3: Delivery time is according to customers’ size and order qty. Beside the T/T, L/C, O/A payment also acceptable.
Q4: Do you have stock?
A4: We have many common size underwater air bags and load test water bags in stock. Ready for shipment.
Q5: What’s certificates can your company provide?
A5: Our load test water bags are Type Certificated by TUV NEL. We can provide ABV, LR,BV third party certificate and the certificate for shackles, lifting belts and other accessories.
