Reliable Load Lifting Marine Part Boat Landing Air Bag Marine Equipment
Description

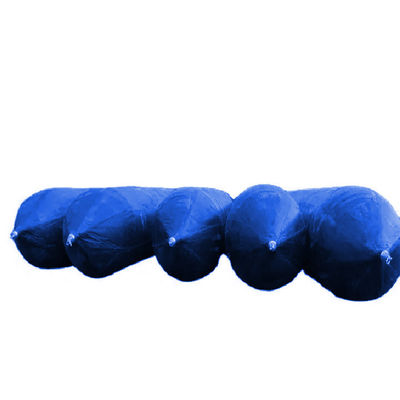

Marine air bags are designed for heavy-duty underwater lifting and are frequently used in salvage, construction, and decommissioning projects. Their reinforced construction made of high-strength PVC makes them ideal for harsh underwater environments. These bags can lift objects ranging from small machinery to entire vessels. The bags feature easy inflation and deflation valves, ensuring controlled and precise buoyancy adjustments. When using the air bags, always follow the provided user manual, especially with regards to inflation limits and operational safety. We provide robust packaging to ensure safe transport, and we offer global shipping services. Payment can be made through T/T or L/C, and we guarantee timely delivery. For any returns or exchanges, please contact our customer service within 30 days of receipt.
Specifications
| Product Name |
Marine Air Bag |
| Material |
100% High Tensile NR |
| Dimensions |
Diameter 0.5m - 3.0m,
Length 3.0m - 28.0m,
or as Request
|
| Working Pressure |
0.05-0.25MPA |
| Technology |
Overall Winding, High Pressure, Explosion-proof |
| Metal Parts |
Q355 / SS304 / SS316 |
| OEM |
Supported |
| MOQ |
1 |
| Repair Tools |
Electric Heating Plate, Repair Materials, Glue, Free of Charge |
| Standard |
ISO14409:2011 |
| Certificate |
ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS |
| Package |
Pallets, Wooden Cases |
| Service Life |
20 Years |
| Warranty |
36 Months |
| Diameter |
Working
Pressure
|
Working
Height
|
Bearing Capacity |
| KN/m |
Ton/m |
| D=1.0m |
0.14Mpa |
0.6m |
87.96 |
8.98 |
| 0.5m |
109.96 |
11.22 |
| 0.4m |
131.95 |
13.46 |
| D=1.2m |
0.12Mpa |
0.7m |
94.25 |
9.62 |
| 0.6m |
113.10 |
11.54 |
| 0.5m |
131.95 |
13.46 |
| 0.4m |
150.80 |
15.39 |
| D=1.5m |
0.10Mpa |
0.9m |
94.25 |
9.62 |
| 0.8m |
109.96 |
11.22 |
| 0.7m |
125.66 |
12.82 |
| 0.6m |
141.37 |
14.43 |
| 0.5m |
157.08 |
16.03 |
| D=1.8m |
0.09Mpa |
1.1m |
98.96 |
10.10 |
| 1.0m |
113.10 |
11.54 |
| 0.9m |
127.33 |
12.98 |
| 0.8m |
141.37 |
14.43 |
| 0.7m |
155.51 |
15.87 |
| 0.6m |
169.65 |
17.31 |
| D=2.0m |
0.08Mpa |
1.2m |
100.53 |
10.26 |
| 1.1m |
113.10 |
11.54 |
| 1.0m |
125.66 |
12.82 |
| 0.9m |
138.23 |
14.11 |
| 0.8m |
150.80 |
15.39 |
| 0.7m |
163.36 |
16.67 |
| 0.6m |
175.93 |
17.95 |
| * Other size can be provided follow client's requirements. |
Features
Inflation Control Flexibility
Multiple inflation points offer flexibility to control the speed and pressure of inflation, allowing for precise buoyancy adjustments and reducing the risk of overloading.
Improved Safety Features
Safety is paramount with features like secure lifting straps, reinforced seams, and automatic pressure relief, ensuring safe handling during lifting operations.
Ease of Use
Designed for simplicity, marine air bags are easy to deploy and operate, even in challenging marine environments, making them user-friendly for both novice and experienced operators.
Global Availability
Marine air bags are available for global shipping, providing maritime industries worldwide with the tools they need for effective underwater lifting and recovery operations.
Applications
● Recovery of sunken cranes and machinery
● Underwater inspection equipment positioning
● Marine salvage operations for valuable objects
● Subsea equipment transportation
● Lifting submerged concrete blocks
● Floating heavy machinery for offshore use
Advantages
Safety Compliance
We comply with all relevant safety regulations and industry standards, ensuring that our products are safe for use in challenging marine environments.
Enhanced Lifespan
Our high quality construction materials and finishes enhance the lifespan of our Marine Air Bags, providing better value for clients over time.
Strong Warranty Policies
We offer robust warranty policies for our products, reflecting our confidence in their durability and performance.
Continuous Improvement Commitment
We regularly seek feedback from clients and industry experts, using it to drive ongoing improvements and innovations in our product offerings.
FAQ
1. Are Marine Air Bags suitable for lifting underwater structures?
Yes, Marine Air Bags are ideal for lifting submerged structures, including construction debris, wreckage, and offshore platforms.
2. What is the delivery time for Marine Air Bags?
The delivery time depends on order size and location, but typically, we ship within 2–4 weeks after the order is confirmed.
3. How are Marine Air Bags packaged for shipment?
Marine Air Bags are carefully folded, sealed, and packaged with protective materials to prevent damage during transit.
4. Can Marine Air Bags be used for salvage operations?
Yes, they are commonly used for salvage operations, including the recovery of sunken ships, equipment, and cargo.
