High Durability Lightweight Marine Air Bag Rubber Ship Launching For Ship Launching
Description

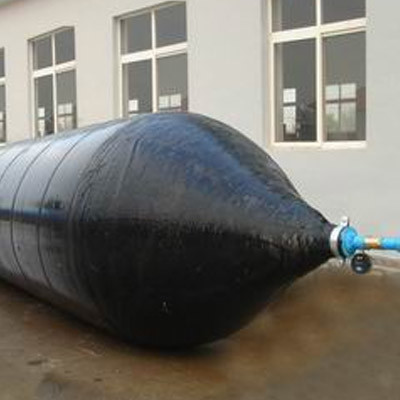

The marine air bag is a revolutionary tool that has transformed the way ships and vessels are launched and managed in the marine industry. These robust inflatable devices are designed to support heavy loads and facilitate smooth transitions during the launching or relocation of vessels. The construction of marine air bags employs advanced rubber and nylon materials, providing superior strength and resistance to wear and tear. They are suitable for various applications, including loading and unloading freight, salvaging operations, and even docking procedures. Marine air bags not only enhance efficiency and effectiveness in marine operations but also play a crucial role in ensuring safety and damage prevention.
Specifications
| Product Name | Marine Air Bag |
| Material | 100% High Tensile NR |
| Dimensions |
Diameter 0.5m - 3.0m, Length 3.0m - 28.0m, or as Request |
| Working Pressure | 0.05-0.25MPA |
| Technology | Overall Winding, High Pressure, Explosion proof |
| Metal Parts | Q355 / SS304 / SS316 |
| OEM | Supported |
| MOQ | 1 |
| Repair Tools | Electric Heating Plate, Repair Materials, Glue, Free of Charge |
| Standard | ISO14409:2011 |
| Certificate | ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS |
| Package | Pallets, Wooden Cases |
| Service Life | 20 Years |
| Warranty | 36 Months |
| Diameter |
Working Pressure |
Working Height |
Bearing Capacity | |
| KN/m | Ton/m | |||
| D=1.0m | 0.14Mpa | 0.6m | 87.96 | 8.98 |
| 0.5m | 109.96 | 11.22 | ||
| 0.4m | 131.95 | 13.46 | ||
| D=1.2m | 0.12Mpa | 0.7m | 94.25 | 9.62 |
| 0.6m | 113.10 | 11.54 | ||
| 0.5m | 131.95 | 13.46 | ||
| 0.4m | 150.80 | 15.39 | ||
| D=1.5m | 0.10Mpa | 0.9m | 94.25 | 9.62 |
| 0.8m | 109.96 | 11.22 | ||
| 0.7m | 125.66 | 12.82 | ||
| 0.6m | 141.37 | 14.43 | ||
| 0.5m | 157.08 | 16.03 | ||
| D=1.8m | 0.09Mpa | 1.1m | 98.96 | 10.10 |
| 1.0m | 113.10 | 11.54 | ||
| 0.9m | 127.33 | 12.98 | ||
| 0.8m | 141.37 | 14.43 | ||
| 0.7m | 155.51 | 15.87 | ||
| 0.6m | 169.65 | 17.31 | ||
| D=2.0m | 0.08Mpa | 1.2m | 100.53 | 10.26 |
| 1.1m | 113.10 | 11.54 | ||
| 1.0m | 125.66 | 12.82 | ||
| 0.9m | 138.23 | 14.11 | ||
| 0.8m | 150.80 | 15.39 | ||
| 0.7m | 163.36 | 16.67 | ||
| 0.6m | 175.93 | 17.95 | ||
| * Other size can be provided follow client's requirements. | ||||
Features
Applications
● Underwater Pipe Laying
