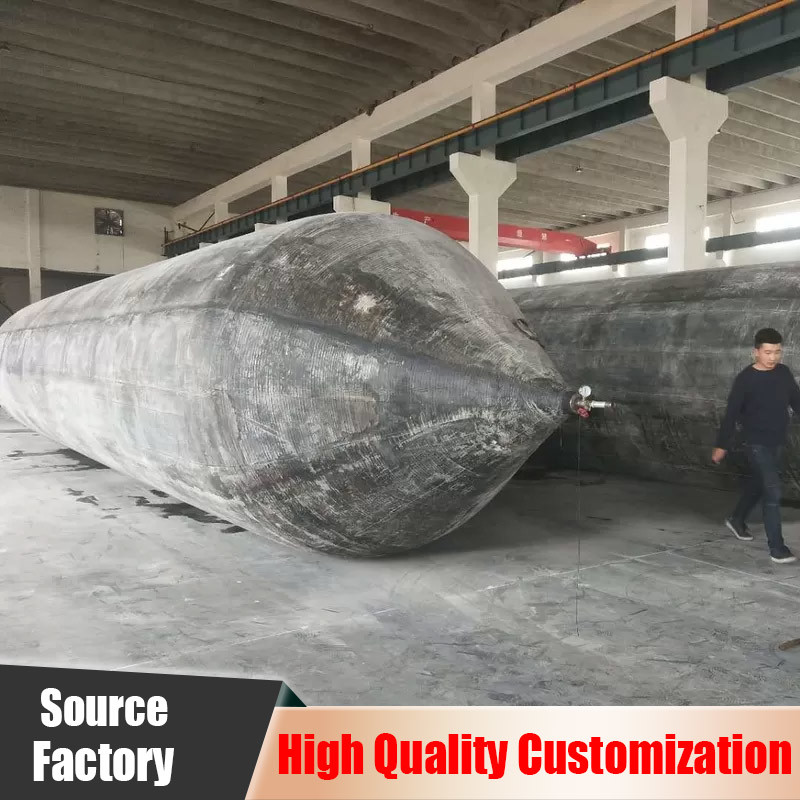

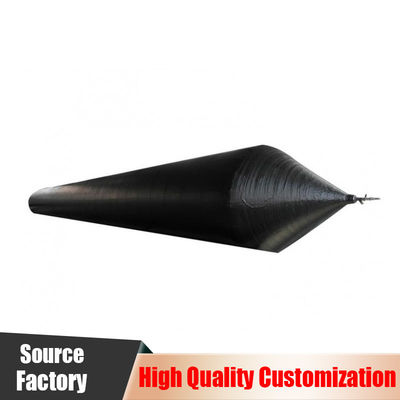

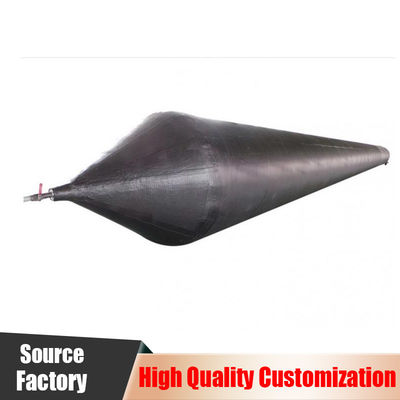

1.2m Marine Rubber Airbags Compact Lightweight High Pressure Tolerance
Description
Replace traditional ship launching methods with our eco-friendly Marine Airbags, reducing environmental impact without compromising performance. Made from high-grade rubber with low maintenance requirements, they eliminate the need for grease, heavy machinery, or permanent slipways. Their shock-absorbing design protects vessels during launch, while their reusability makes them a sustainable choice. Ideal for shipyards looking to cut costs and reduce carbon footprints. Available in multiple sizes (1m–4m) with high pressure tolerance for secure operations.
Specifications
| Product Name |
Ship Launching Balloon |
| Material |
100% High Tensile Natural Rubber (NR) |
| Dimensions |
Diameter 0.2m - 4.0m,
Length 3.0m - 28.0m,
or As Request
|
| Working Pressure |
0.05-0.25MPA |
| Technology |
Overall Winding, High Pressure, Explosion-proof |

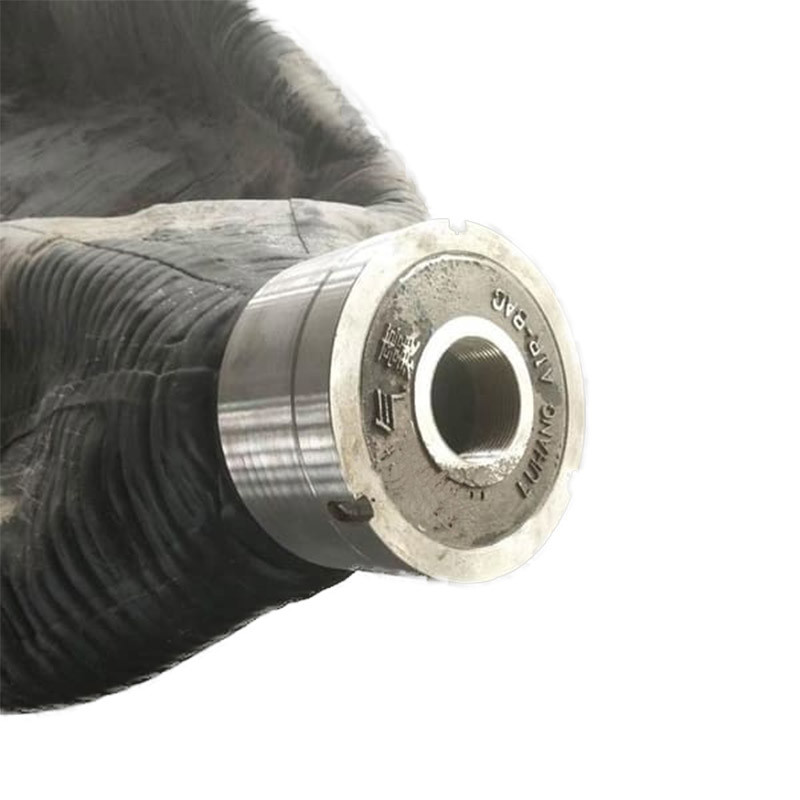

| Metal Parts |
Q355 / SS304 / SS316 |
| OEM |
Supported |
| MOQ |
1 |
| Repair Tools |
Electric Heating Plate, Repair Materials, Glue, Free of Charge |
| Standard |
ISO 17357 |
| Certificate |
ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS |
| Package |
Pallets, Wooden Cases |
| Service Life |
20 Years |
| Warranty |
36 Months |
| Diameter |
Working
Pressure
|
Working
Height
|
Bearing Capacity |
| KN/m |
Ton/m |
| D=1.0m |
0.14Mpa |
0.6m |
87.96 |
8.98 |
| 0.5m |
109.96 |
11.22 |
| 0.4m |
131.95 |
13.46 |
| D=1.2m |
0.12Mpa |
0.7m |
94.25 |
9.62 |
| 0.6m |
113.10 |
11.54 |
| 0.5m |
131.95 |
13.46 |
| 0.4m |
150.80 |
15.39 |
| D=1.5m |
0.10Mpa |
0.9m |
94.25 |
9.62 |
| 0.8m |
109.96 |
11.22 |
| 0.7m |
125.66 |
12.82 |
| 0.6m |
141.37 |
14.43 |
| 0.5m |
157.08 |
16.03 |
| D=1.8m |
0.09Mpa |
1.1m |
98.96 |
10.10 |
| 1.0m |
113.10 |
11.54 |
| 0.9m |
127.33 |
12.98 |
| 0.8m |
141.37 |
14.43 |
| 0.7m |
155.51 |
15.87 |
| 0.6m |
169.65 |
17.31 |
| D=2.0m |
0.08Mpa |
1.2m |
100.53 |
10.26 |
| 1.1m |
113.10 |
11.54 |
| 1.0m |
125.66 |
12.82 |
| 0.9m |
138.23 |
14.11 |
| 0.8m |
150.80 |
15.39 |
| 0.7m |
163.36 |
16.67 |
| 0.6m |
175.93 |
17.95 |
| * Other Size Can Be Provided Follow Client's Requirements. |
Features
Dimensional Tolerances
Diameter: ±1.5%
Length: ±2%
Ovality: <3% of nominal diameter
Inflation/Deflation Performance
Achieves working pressure in <15min using standard 10CFM compressors
Controlled deflation rate of 5-8% volume/minute
Safety Factors
4:1 minimum burst-to-working pressure ratio
2.5:1 design factor for dynamic loads
Aging Characteristics
<15% tensile strength loss after 1000h UV exposure (ISO 4892-2)
<10% compression set after 72h at 70°C (ISO 815)
Applications
● Shipyards
● Dry docks
● Coastal areas
Advantages
Unmatched Durability
Abrasion-resistant outer layer (tested per ISO 4649).
Puncture-proof design for rough surfaces and sharp edges.
Precision Engineering
Finite Element Analysis (FEA)-optimized structure for stress distribution.
Custom sizing (0.8m–6m diameter) to fit any vessel.
High Pressure Burst Resistance
Working pressure: 0.3–0.8 MPa (43–116 psi).
Burst pressure ≥3.5× working pressure (safety-certified).
Temperature Resilience
Operational range: -40°C to +80°C (-40°F to 176°F).
No cracking or softening in extreme climates.
FAQ
1. What certifications do they have?
Compliant with ABS, DNV, LR, CCS, and ISO 17357-1 standards.
2. Can they be used for ship recovery/salvage?
Yes, they are widely used in salvage operations, dry docking, and heavy lifting.
3. How do they compare to traditional slipways?
90% cheaper, faster setup, and portable—no permanent infrastructure needed.
4. Do you offer custom solutions?
Yes, we provide military-grade, Arctic, and heavy-lift variants with OEM/ODM support.
