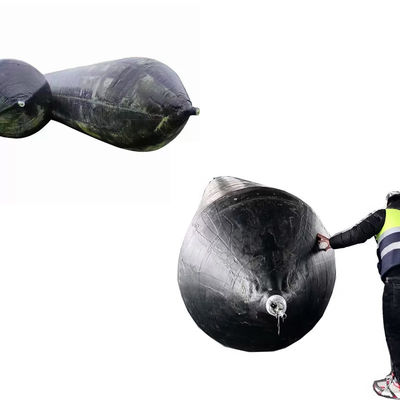

5m Ship Launching Balloon Industrial Grade Heat Resistant Stable Performance
Description
Speed up vessel launches with our quick-deploy Marine Airbags, designed for fast inflation and easy handling. Built with tear-resistant rubber layers, they withstand sharp edges and heavy loads (up to 300+ tons). Their compact design allows for easy storage and transport, while the anti-slip surface ensures stability during operations. Perfect for emergency salvage, ship repairs, and new vessel launches. Available in 1.2m–5m diameters, these rugged airbags are a must-have for modern marine industries.
Specifications
| Product Name |
Ship Launching Balloon |
| Material |
100% High Tensile Natural Rubber (NR) |
| Dimensions |
Diameter 0.2m - 4.0m,
Length 3.0m - 28.0m,
or As Request
|
| Working Pressure |
0.05-0.25MPA |
| Technology |
Overall Winding, High Pressure, Explosion-proof |
| Metal Parts |
Q355 / SS304 / SS316 |
| OEM |
Supported |
| MOQ |
1 |
| Repair Tools |
Electric Heating Plate, Repair Materials, Glue, Free of Charge |
| Standard |
ISO 17357 |
| Certificate |
ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS |
| Package |
Pallets, Wooden Cases |
| Service Life |
20 Years |
| Warranty |
36 Months |
| Diameter |
Working
Pressure
|
Working
Height
|
Bearing Capacity |
| KN/m |
Ton/m |
| D=1.0m |
0.14Mpa |
0.6m |
87.96 |
8.98 |
| 0.5m |
109.96 |
11.22 |
| 0.4m |
131.95 |
13.46 |
| D=1.2m |
0.12Mpa |
0.7m |
94.25 |
9.62 |
| 0.6m |
113.10 |
11.54 |
| 0.5m |
131.95 |
13.46 |
| 0.4m |
150.80 |
15.39 |
| D=1.5m |
0.10Mpa |
0.9m |
94.25 |
9.62 |
| 0.8m |
109.96 |
11.22 |
| 0.7m |
125.66 |
12.82 |
| 0.6m |
141.37 |
14.43 |
| 0.5m |
157.08 |
16.03 |
| D=1.8m |
0.09Mpa |
1.1m |
98.96 |
10.10 |
| 1.0m |
113.10 |
11.54 |
| 0.9m |
127.33 |
12.98 |
| 0.8m |
141.37 |
14.43 |
| 0.7m |
155.51 |
15.87 |
| 0.6m |
169.65 |
17.31 |
| D=2.0m |
0.08Mpa |
1.2m |
100.53 |
10.26 |
| 1.1m |
113.10 |
11.54 |
| 1.0m |
125.66 |
12.82 |
| 0.9m |
138.23 |
14.11 |
| 0.8m |
150.80 |
15.39 |
| 0.7m |
163.36 |
16.67 |
| 0.6m |
175.93 |
17.95 |
| * Other Size Can Be Provided Follow Client's Requirements. |
Features
Precision Engineered Load Distribution System
Computer-optimized multi-layer reinforcement (6-8 ply radial construction)
Dynamic load capacity up to 800 metric tons with ≤5% deflection
Integrated pressure mapping technology ensures even hull support
Exceeds ISO 17357-1 safety factors for marine applications
Advanced Composite Material Technology
Proprietary rubber compound with 72 Shore A hardness rating
Embedded aramid fiber reinforcement (2800N/mm tensile strength)
Chemically inert formulation resistant to:
• Saltwater corrosion (ASTM D1141)
• Hydrocarbon exposure (ASTM D471)
• Microbial degradation (ISO 22196)
Smart Monitoring Control Capabilities
IoT-enabled pressure/temperature sensors (±0.25% accuracy)
Real-time structural health monitoring via strain gauges
Automated pressure regulation system (response time <2sec)
Cloud-based data logging for predictive maintenance
Extreme Environment Performance Package
Operational range: -50°C to +120°C (MIL-STD-810 verified)
UV-resistant outer layer with 15-year weathering warranty
Anti-fouling surface treatment (≤5% marine growth adhesion)
Explosion-proof design (ATEX Zone 1 compliant)
Applications
● Naval vessels
● Commercial cargo ships
● Cruise liners
Advantages
Decades of Expertise
30+ years of dedicated R&D and production in marine airbag technology.
Trusted by global shipyards, naval architects, and salvage operators.
Premium Material Selection
High-grade synthetic rubber (NR/SBR/IIR blends) with UV, ozone, and chemical resistance.
Reinforced nylon/cotton/aramid cord layers (up to 8-ply construction) for extreme durability.
Superior Load Capacity
Single-unit capacity up to 800+ tons (expandable with multi-bag systems).
Even weight distribution to prevent hull deformation.
Advanced Manufacturing Process
Automated vulcanization for consistent bonding strength.
X-ray & ultrasonic testing to detect internal flaws.
FAQ
1. Can they be used in rough sea conditions?
Yes, anti-slip surfaces and dynamic load balancing ensure stability in waves.
2. Are smart monitoring options available?
Yes, IoT-enabled sensors track pressure, temperature, and structural health in real time.
3. What is the warranty period?
5-year warranty on materials and workmanship, with lifetime technical support.
4. How can I place an order?
Contact us for custom quotes, lead times, and global shipping options.
