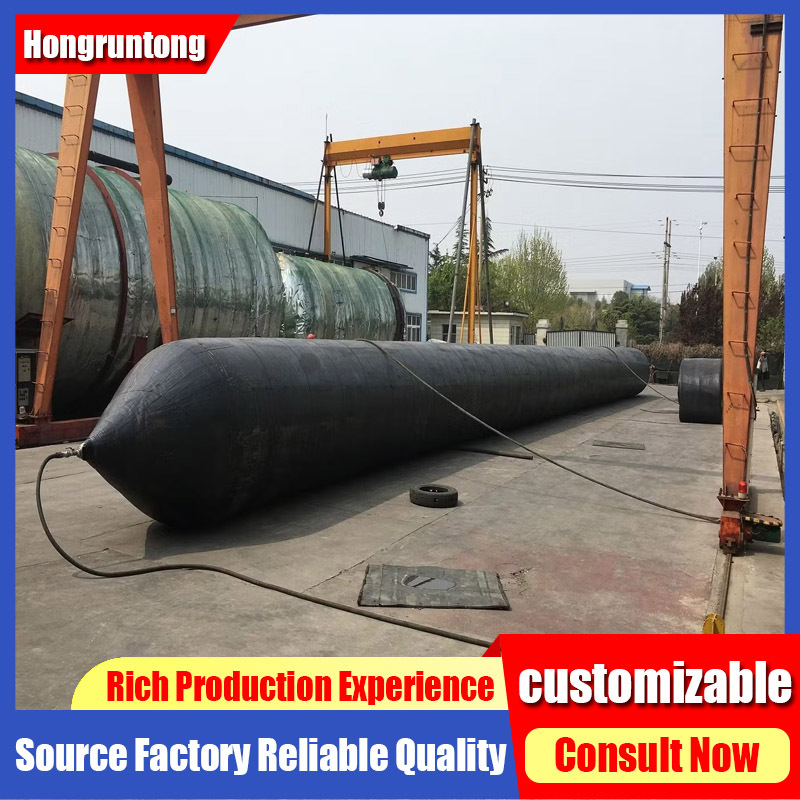

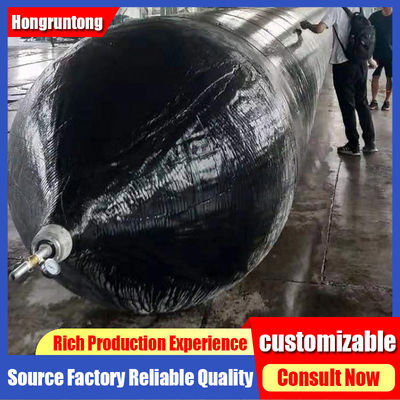

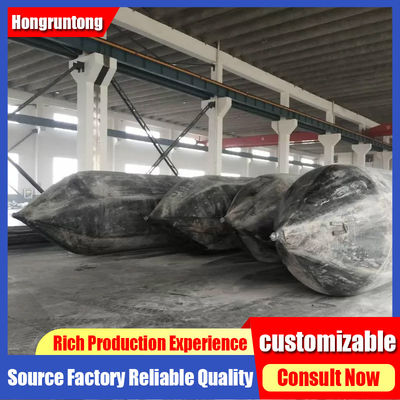

3.5m×30m Airbag Launching Seamless Inner Hydraulic Rebound Damping
Description
Hongruntong Marine's Standard Marine Airbag Launching System offers a cost-effective and efficient solution for vessels up to 3,000 tons. Our airbags are constructed with high-tensile synthetic rubber and reinforced with multiple layers of cord fabric, ensuring exceptional durability and load distribution. With a working pressure range of 0.08–0.12 MPa, they provide stable and controlled launches while minimizing hull stress.
Key advantages include quick deployment, reusability (500+ cycles), and compatibility with various ship types. Ideal for small to medium-sized shipyards, our system reduces infrastructure costs by up to 60% compared to traditional slipways. Hongruntong Marine guarantees ISO 14409 compliance, along with ABS and DNV certifications for global acceptance.
Specifications
| Item |
Description |
| Place of Origin |
China |
| Brand Name |
Hongruntong Marine |
| Model Number |
HM-ALS0147 |
| Material |
Industrial-Grade Natural Rubber |
| Diameter |
0.5m-3.0m, or as Request |
| Length |
1.0m-28.0m, or as Request |
| Working Pressure |
0.05-0.25 mpa |
| Technics |
High pressure, overall winding, explosion-proof |
| Use |
ship launching and docking |
| Thickness |
5-13 ply |
| Standard |
Conducted by ISO14409 and GB/T1590-2006 system. |
| Accessories |
Q355/SS304/SS316, Pressure Gauge, Tee, Plug, Switch, Inflation Tube |
| Packaging |
Inner-Plastic Bag; Outer-Standard Wooden Pallets. |
| Keywords |
Airbag Launching Ship |
| Certificates |
ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS |
| MOQ |
1 |
| OEM |
Welcome |
| Diameter |
Working
Pressure
|
Working
Height
|
Bearing Capacity |
| KN/m |
Ton/m |
| D=1.0m |
0.14Mpa |
0.6m |
87.96 |
8.98 |
| 0.5m |
109.96 |
11.22 |
| 0.4m |
131.95 |
13.46 |
| D=1.2m |
0.12Mpa |
0.7m |
94.25 |
9.62 |
| 0.6m |
113.10 |
11.54 |
| 0.5m |
131.95 |
13.46 |
| 0.4m |
150.80 |
15.39 |
| D=1.5m |
0.10Mpa |
0.9m |
94.25 |
9.62 |
| 0.8m |
109.96 |
11.22 |
| 0.7m |
125.66 |
12.82 |
| 0.6m |
141.37 |
14.43 |
| 0.5m |
157.08 |
16.03 |
| D=1.8m |
0.09Mpa |
1.1m |
98.96 |
10.10 |
| 1.0m |
113.10 |
11.54 |
| 0.9m |
127.33 |
12.98 |
| 0.8m |
141.37 |
14.43 |
| 0.7m |
155.51 |
15.87 |
| 0.6m |
169.65 |
17.31 |
| D=2.0m |
0.08Mpa |
1.2m |
100.53 |
10.26 |
| 1.1m |
113.10 |
11.54 |
| 1.0m |
125.66 |
12.82 |
| 0.9m |
138.23 |
14.11 |
| 0.8m |
150.80 |
15.39 |
| 0.7m |
163.36 |
16.67 |
| 0.6m |
175.93 |
17.95 |
| * Other size can be produced follow client's requirements. |
Features
Comprehensive After-Sales Support
Worldwide technical assistance, on-site training, and guaranteed spare parts availability for 10 years.
Flexible Financing Options
Lease-to-own programs, performance-based payments, and bulk purchase discounts to suit different budgets.
Cutting Edge RD
Developed in collaboration with Shanghai Jiao Tong University, with continuous innovation and 15 patents in marine launch technology.
End to End Project Management
Full-service solutions, including engineering surveys, launch simulations, operator training, and post-launch inspections.
Applications
● Cargo Ship Launching
● Cruise Ship Launching
● Ship Repair and Maintenance Yards
● Shipbuilding in Remote Locations
● Rescue Vessel Launching
Advantages
Comprehensive After-Sales Service
We offer worldwide technical support and guaranteed spare parts availability.
Continuous Innovation
Ongoing R&D investments drive technological advancements in launch systems.
Turnkey Project Management
Complete solutions from design through post-launch inspection.
Proven Cost Efficiency
Our systems typically deliver ROI within 8-12 launches compared to traditional methods.
FAQ
1. What is the maximum vessel size your airbags can launch?
Our systems can handle vessels up to 18,000 DWT, with custom solutions available for larger projects.
2. How many launches can your airbags typically withstand?
Standard systems are rated for 500+ launches with proper maintenance and inspection.
3. What's the minimum preparation time required before launching?
Typical deployment requires 4-6 hours, with emergency systems ready in 3 hours.
4. Do you provide installation supervision?
Yes, we offer on-site technical supervision for first-time installations worldwide.
