Test Weight Water Bags Adjustable Reusable Tear Resistant Quick Inflation

1
MOQ
US$49-US$587
Price
Test Weight Water Bags Adjustable Reusable Tear Resistant Quick Inflation
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Durability, Adjustable Weight
Name: Crane Load Test Water Bags
Thickness: 0.4mm-2.5mm, Or As Request
Loadcell: 10-150 Tons
Application: Structural Load Testing, Proof Load Testing
Material: Top Notch PVC
Layers: 1-6Ply, Or As Request
Reinforcement: Nylon Fabric
Capacity: 1T - 150T
Color: Black, Yellow, Orange, Or As Request
Highlight:

adjustable crane test water bags

,

reusable tear resistant water bags

,

quick inflation load test bags
Basic Infomation
Place of Origin: China
Brand Name: Hongruntong Marine
Certification: ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
Model Number: HM-CLTWB89
Payment & Shipping Terms
Packaging Details: Wooden Pallets, Wooden Box
Delivery Time: 5-6 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2650 Pcs Per Month
Product Description
Test Weight Water Bags Adjustable Reusable Tear Resistant Quick Inflation
Product Overview

Hongruntong Marine crane load testing water bags are flexible, high-capacity proof load devices specifically developed for marine cranes, offshore lifting systems, and heavy industrial hoisting equipment. Constructed from multi-layer reinforced PVC fabrics, these bags deliver excellent tensile performance while remaining lightweight when empty.

Their modular configuration allows easy handling and rapid deployment. Integrated safety valves, reinforced lifting lugs, and calibrated filling systems ensure accurate load simulation. These water bags significantly enhance testing safety while lowering transport and operational costs.

Case Study - Floating Crane Commissioning

During commissioning of a 200-ton floating crane in a Middle Eastern shipyard, traditional test weights posed transport challenges. Hongruntong supplied a set of interconnected water bags totaling 220 tons.

The modular setup allowed staged loading. Testing finished ahead of schedule, reducing crane commissioning time by two days. Engineers highlighted improved safety margins and simplified logistics.

Technical Specifications
Parameter Details
Application Proof Load Testing, Offshore Load Testing, Structural Load Testing, Ship Load Testing, Industrial Equipment Testing, Research and Development
Content 100% POLYVINYL CHLORIDE
Phthalate 7P Phthalate Free (includes all Phthalates listed in CAL Prop 65, CPSIA and REACH)
Backing Material Size 1.8/2.0 Mm X 1.55m, Thickness Produced as Per Your Request
Weight 37.1 oz square yard/ 1450 +- 50 GSM
Special Features UV Resistant, 7P Phthalate Free, BPA Free / Tris Free / Formaldehyde Free, Does Not Contain Conflict Minerals
Care Instructions Rinse with Fresh Water and Air Dry, Do Not Store with Seawater and Keep Away From Heat Sources
Available Sizes 5000 kg, 8,000 kg, 10,000 kg, 15,000 kg, 20,000 kg, 30,000 kg, 50,000 kg, 100,000 kg (Special Sizes Could be Customized)
OEM Supported
Model Specifications
MODEL Weight Volume Height (Length) Max Diam (ø) Dry Weight without accessories
Empty Filled
HM-1T1,000 kg
2,204 lbs		1,000 L / 1 m³
264 USG		2.52 m
8.27 ft		2.23 m
7.33 ft		1.39 m
4.56 ft		36 kg
80 lbs
HM-2T2,000 kg
4,409 lbs		2,000 L / 2 m³
528 USG		2.87 m
9.41 ft		2.6 m
8.5 ft		1.65 m
5.43 ft		41 kg
90 lbs
HM-3T3,000 kg
6,613 lbs		3,000 L / 3 m³
792 USG		3.38 m
11.11 ft		2.97 m
9.75 ft		1.82 m
6.0 ft		50 kg
110 lbs
HM-4T4,000 kg
8,818 lbs		4,000 L / 4 m³
1,056 USG		3.41 m
11.22 ft		3.07 m
10.1 ft		1.88 m
6.16 ft		64 kg
141 lbs
HM-5T5,000 kg
11,023 lbs		5,000 L / 5 m³
1,320 USG		4.14 m
13.60 ft		3.52 m
11.58 ft		2.13 m
7.0 ft		80 kg
176 lbs
HM-6T6,000 kg
13,227 lbs		6,000 L / 6 m³
1,585 USG		4.39 m
14.41 ft		3.91 m
12.83 ft		2.28 m
7.48 ft		86 kg
189 lbs
HM-8T8,000 kg
17,636 lbs		8,000 L / 8 m³
2,113 USG		4.54 m
14.91 ft		3.93 m
12.91 ft		2.52 m
8.27 ft		104 kg
230 lbs
HM-10T10,000 kg
22,046 lbs		10,000 L / 10 m³
2,641 USG		5.18 m
17.0 ft		4.49 m
14.75 ft		2.70 m
8.90 ft		130 kg
286 lbs
HM-12.5T12,500 kg
27,558 lbs		12,500 L / 12.5 m³
3,302 USG		5.43 m
17.91 ft		4.62 m
15.16 ft		2.86 m
9.39 ft		154 kg
340 lbs
HM-15T15,000 kg
33,069 lbs		15,000 L / 15 m³
3,962 USG		6.24 m
20.50 ft		5.48 m
18.00 ft		2.95 m
9.70 ft		159 kg
350 lbs
HM-20T20,000 kg
44,100 lbs		20,000 L / 20 m³
5,283 USG		6.78 m
22.25 ft		6.04 m
19.83 ft		3.42 m
11.25 ft		224 kg
492 lbs
HM-25T25,000 kg
55,115 lbs		25,000 L / 25 m³
6,604 USG		7.51 m
24.66 ft		6.40 m
21.0 ft		3.75 m
12.33 ft		315 kg
695 lbs
HM-35T35,000 kg
77,161 lbs		35,000 L / 35 m³
9,246 USG		8.07 m
26.50 ft		7.11 m
23.33 ft		3.91 m
12.83 ft		417 kg
920 lbs
HM-40T40,000 kg
88,184 lbs		40,000 L / 40 m³
10,566 USG		8.71 m
28.58 ft		7.72 m
25.33 ft		4.07 m
13.36 ft		440 kg
970 lbs
HM-50T50,000 kg
110,231 lbs		50,000 L / 50 m³
13,208 USG		8.99 m
29.50 ft		7.77 m
25.50 ft		4.56 m
14.96 ft		544 kg
1200 lbs
HM-100T100,000 kg
220,462 lbs		100,000 L / 100 m³
26,420 USG		11.27 m
37.00 ft		10.00 m
32.9 ft		5.65 m
18.56 ft		952 kg
2100 lbs
Key Features
  • Advanced Multi Layer Fabric Technology
    The bag body integrates multiple reinforcement layers, enhancing puncture resistance and fatigue strength. This structure ensures stability during repeated filling cycles and heavy lifting conditions.
  • Temperature Adaptability
    Materials maintain flexibility across a wide temperature range, from cold offshore climates to tropical shipyards. Crack resistance and coating stability ensure long service life.
  • Optimized Filling/Draining System
    Large diameter valves accelerate filling and draining, reducing operational time. Transparent level indicators assist operators in precise load monitoring.
  • Compact Storage Design
    Foldable construction reduces storage footprint dramatically compared with steel weights, ideal for offshore logistics.
Applications
  • Dry Dock Testing Operations
    Used during ship repair periods to verify onboard cranes without removing equipment.
  • Renewable Offshore Energy Projects
    Applied in wind farm installation vessels to test heavy lifting systems.
  • Industrial Crane Inspection
    Also suitable for construction cranes requiring proof load certification.
Why Choose Hongruntong Marine
  • Dedicated Marine Equipment Manufacturer
    Focused exclusively on marine testing equipment, ensuring deep technical expertise.
  • Flexible Custom Production
    Tailored sizes, shapes, lifting configurations, and instrumentation available.
  • Global Delivery Experience
    Efficient logistics network ensures timely international delivery.
  • Comprehensive Documentation
    Technical manuals, inspection certificates, and operation guidelines included.
Frequently Asked Questions
How long does a test typically take?
Usually several hours depending on bag capacity and water source.
What maintenance is required?
Cleaning, drying, and periodic visual inspection are recommended.
Are spare parts available?
Yes, valves, hoses, and fittings can be supplied.
Is operator training required?
Basic training is recommended for safe handling.
Can bags be repaired if damaged?
Minor damage can usually be professionally repaired.
Product Images

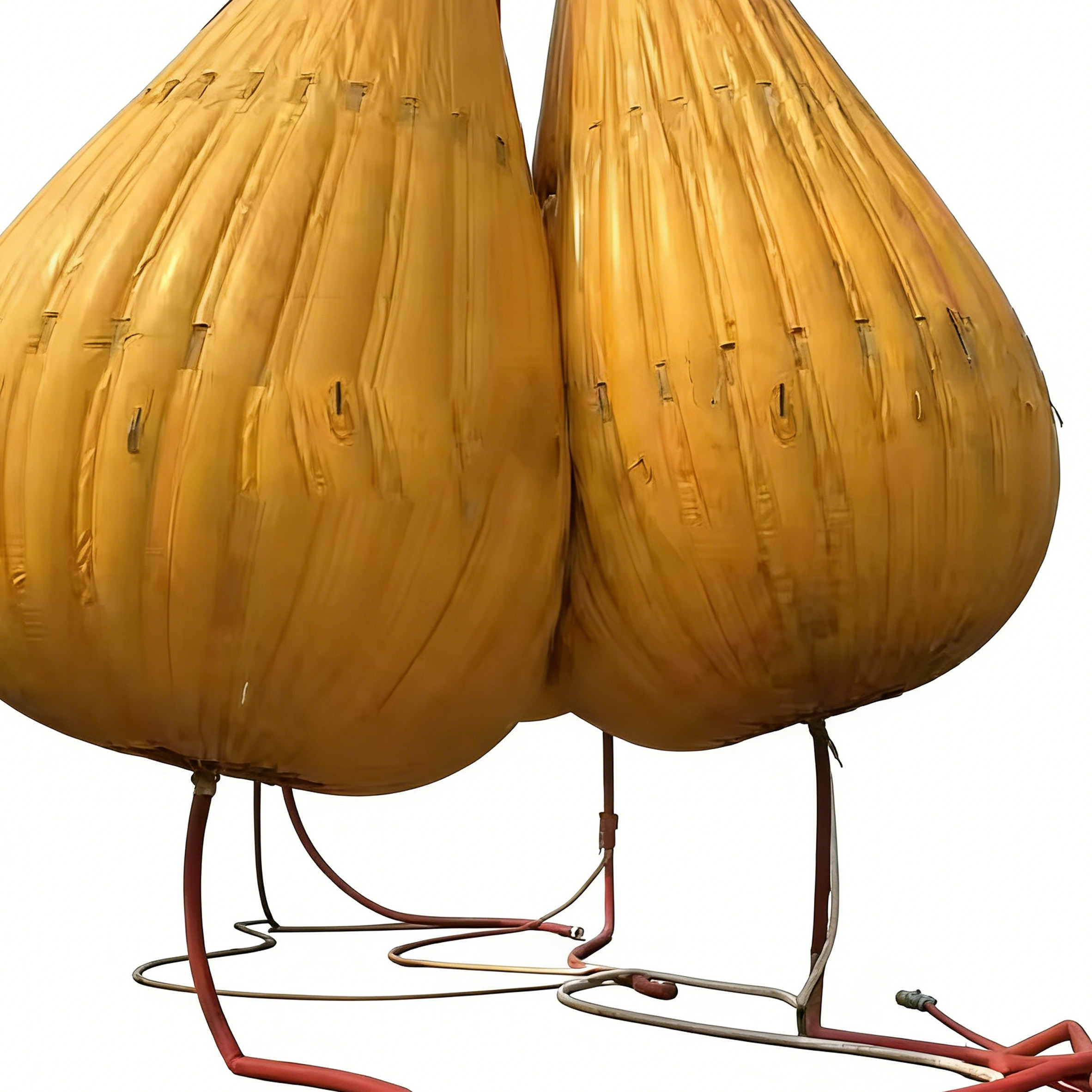

Test Weight Water Bags Adjustable Reusable Tear Resistant Quick Inflation 0

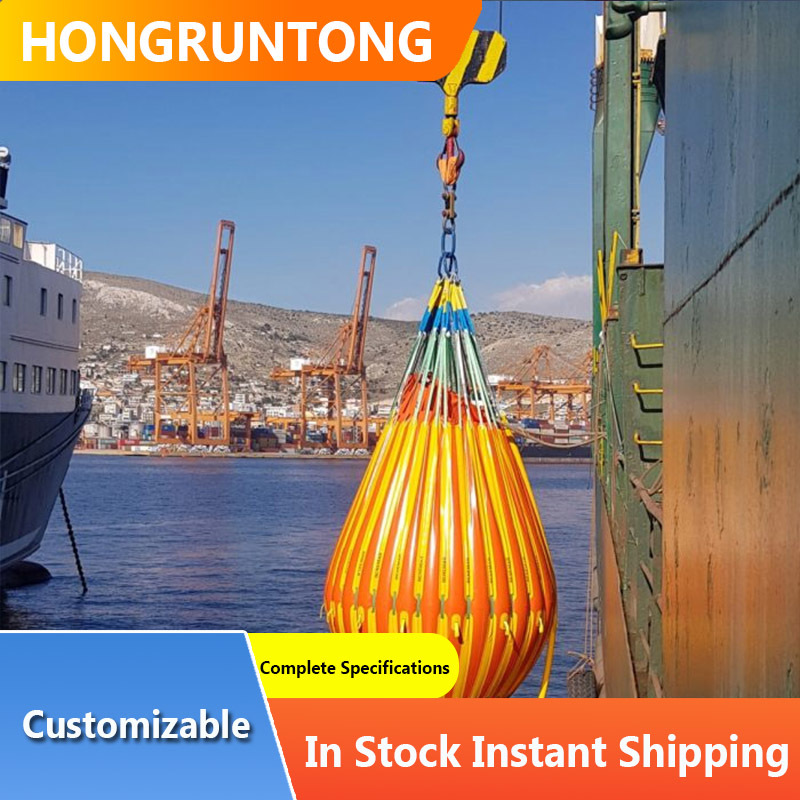

Test Weight Water Bags Adjustable Reusable Tear Resistant Quick Inflation 1

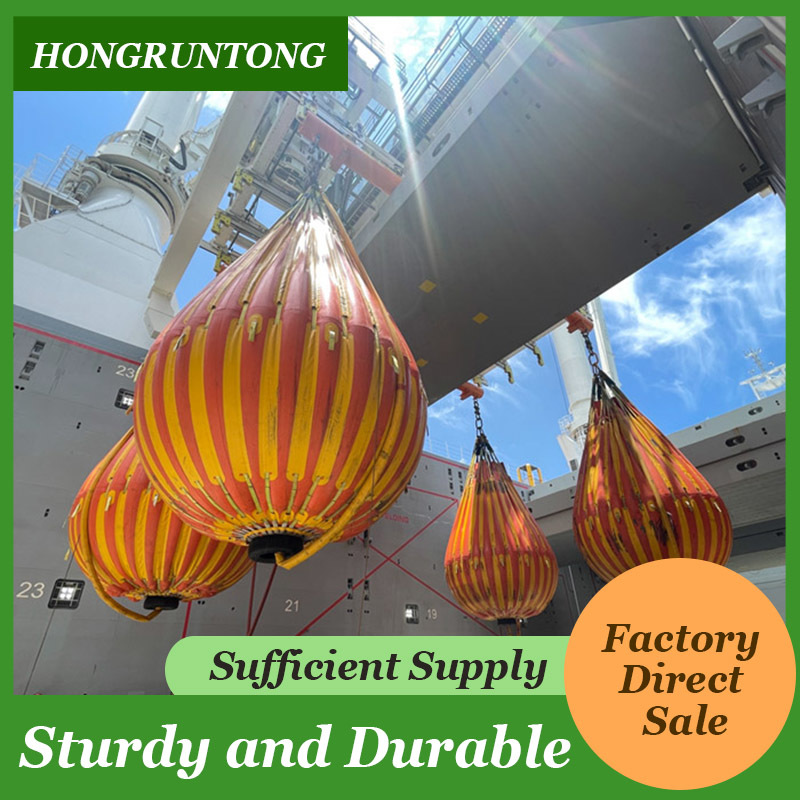

Test Weight Water Bags Adjustable Reusable Tear Resistant Quick Inflation 2

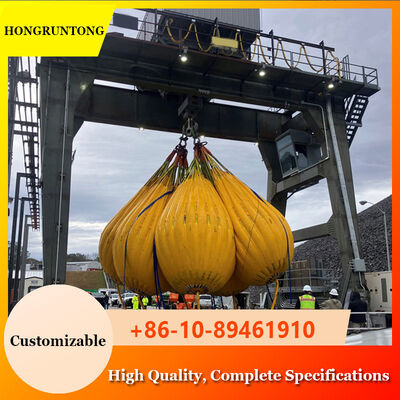

Test Weight Water Bags Adjustable Reusable Tear Resistant Quick Inflation 3
