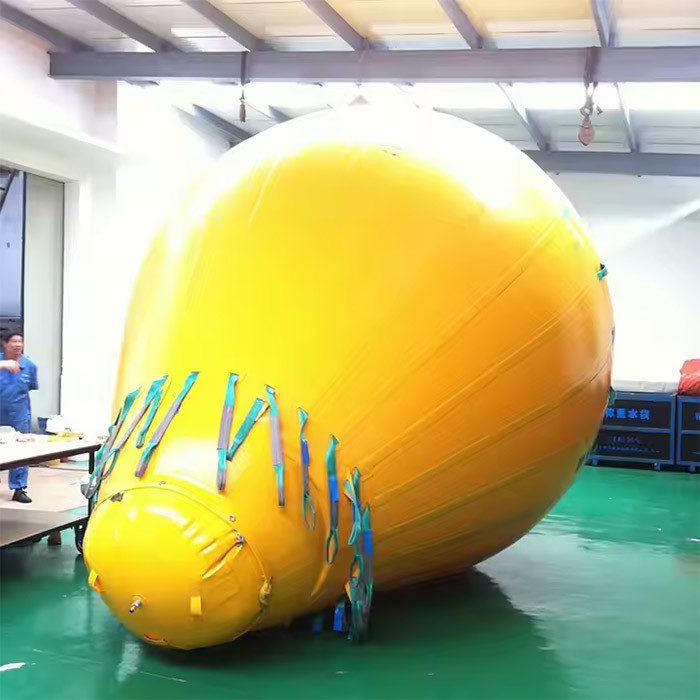

Heavy Duty Inflatable Air Bag Lifting Equipment Deep Water Lift
Description
Specifications
| Model | Lifting Capacity | Dimensions | Appr. Weight | |
| Parachute | [kg] | [lbs] | [mm] | [kg] |
| HM-P01 | 200 | 441 | 800 | 5 |
| HM-P02 | 500 | 1,103 | 1,000 | 8 |
| HM-P03 | 1,000 | 2,205 | 1,300 | 11 |
| HM-P04 | 2,000 | 4,410 | 1,600 | 20 |
| HM-P05 | 4,000 | 8,820 | 2,000 | 50 |
| HM-P06 | 6,000 | 13,230 | 2,300 | 66 |
| HM-P07 | 8,000 | 17,640 | 2,500 | 75 |
| HM-P08 | 10,000 | 22,050 | 2,700 | 80 |
| HM-P09 | 15,000 | 33,075 | 3,100 | 110 |
| HM-P10 | 20,000 | 44,100 | 3,400 | 130 |
| HM-P11 | 30,000 | 66,150 | 3,900 | 170 |
| HM-P12 | 50,000 | 110,250 | 4,600 | 220 |
| HM-P13 | 70,000 | 154,350 | 5,200 | 310 |
| HM-P14 | 100,000 | 220,500 | 5,800 | 450 |
| HM-P15 | 150,000 | 330,750 | 6,600 | 660 |
| HM-P16 | 200,000 | 441,000 | 7,300 | 900 |
| *Note: Other sizes can be customized according to the requirements. | ||||
| Model | Buoyancy | Diameter | Length | Appr. Weight | ||
| Cylindrical | [kg] | [lbs] | [mm] | [mm] | [kg] | |
| HM-C01 | 200 | 441 | 500 | 1,000 | 5 | |
| HM-C02 | 500 | 1,103 | 800 | 1,000 | 8 | |
| HM-C03 | 1,000 | 2,205 | 1,000 | 1,500 | 11 | |
| HM-C04 | 2,000 | 4,410 | 1,300 | 1,500 | 20 | |
| HM-C05 | 4,000 | 8,820 | 1,600 | 2,000 | 50 | |
| HM-C06 | 6,000 | 13,230 | 2,000 | 2,000 | 66 | |
| HM-C07 | 8,000 | 17,640 | 2,000 | 2,600 | 75 | |
| HM-C08 | 10,000 | 22,050 | 2,400 | 2,400 | 80 | |
| HM-C09 | 15,000 | 33,075 | 2,600 | 3,000 | 110 | |
| HM-C10 | 20,000 | 44,100 | 3,000 | 3,000 | 130 | |
| HM-C11 | 30,000 | 66,150 | 3,000 | 4,500 | 170 | |
| HM-C12 | 50,000 | 110,250 | 4,000 | 4,000 | 220 | |
| HM-C13 | 70,000 | 154,350 | 4,000 | 5,700 | 310 | |
| HM-C14 | 100,000 | 220,500 | 4,000 | 8,000 | 450 | |
| HM-C15 | 150,000 | 330,750 | 5,000 | 8,000 | 660 | |
| HM-C16 | 200,000 | 441,000 | 5,000 | 10,000 | 900 | |
| *Note: Other sizes can be customized according to the requirements. | ||||||
|
Model |
Capacity |
Length |
Width |
|
|---|---|---|---|---|
|
Pillow |
[kg] |
[lbs] |
[mm] |
[mm] |
| HM-P100 | 100 | 220 | 1,020 | 760 |
| HM-P250 | 250 | 550 | 1,320 | 820 |
| HM-P500 | 500 | 1,100 | 1,300 | 1,200 |
| HM-P1000 | 1,000 | 2,200 | 1,550 | 1,420 |
| HM-P2000 | 2,000 | 4,400 | 1,950 | 1,780 |
| HM-P3000 | 3,000 | 6,600 | 2,900 | 1,950 |
| HM-P5000 | 5,000 | 11,000 | 3,230 | 2,030 |
| *Note: Other sizes can be customized according to the requirements. | ||||
Features
High Buoyancy Capacity
Underwater Air Lift Bags are engineered to provide exceptional buoyancy support, allowing for the safe lifting of heavy objects submerged in water. Their design accommodates various load sizes, making them suitable for diverse underwater operations.
Durable Construction
Crafted from robust, high-quality materials, these air lift bags can withstand extreme underwater conditions, including pressure and abrasion. This durability ensures long-lasting performance, reducing the need for frequent replacements.
Easy Deployment
These air lift bags are designed for quick and easy deployment, enabling operators to inflate and use them without complex setups. This efficiency is crucial in underwater operations where time is often of the essence.
Versatile Applications
Underwater Air Lift Bags can be utilized in various applications, including salvage operations, construction projects, and environmental cleanups. Their versatility enhances productivity across multiple domains.
Applications
● Recovering submerged geological samples
