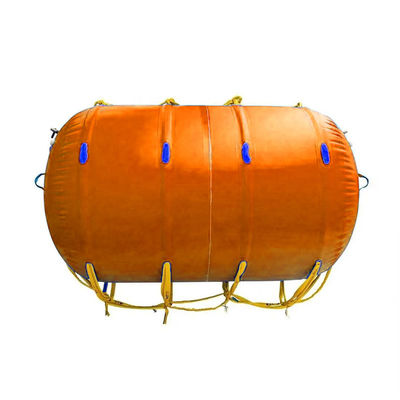

1.2m Inflatable Salvage Tube 10 Ton Lift Rapid Inflation Reinforced Nylon Shell
Description
When disaster strikes underwater, speed and adaptability are paramount. Inflatable Salvage Tubes are the premier emergency response tool for recovering sunken vessels, aircraft, or critical infrastructure. Designed for rapid global deployment and all-weather operation, their quick inflation (often within seconds) and precise buoyancy control enable swift, controlled surfacing. Their inherent versatility shines across diverse scenarios: salvaging shipping containers, raising aircraft fuselages, recovering pipelines, or assisting in sensitive archaeological lifts. The snag-free, robust design withstands harsh subsea environments. Offering immediate readiness and proven effectiveness, these tubes are the go-to solution for minimizing environmental impact and economic loss during critical incidents.
Specifications
| Product Name |
Inflatable Salvage Tubes |
| Raw Material |
PVC Coating Fabric |
| Type |
Cylindrical |
| Size |
500kg, 1000kg, 5000kg 10000kg,etc |
| Thickness |
0.4-1.2mm, Or As Request |
| Color |
Yellow, Blue, Black, etc |
| Density |
0.33-0.9g/cm3 |
| Safety Factor |
7:1 |
|
Tolerances
|
+/- 0.03 On Densities
+/- 0.2 Mm On Thickness
+/- 0 To +3mm On Width
+/- 0 To +3mm On Length
|
| Model |
Buoyancy |
Diameter |
Length |
Appr. Weight |
| Cylindrical |
[kg] |
[lbs] |
[mm] |
[mm] |
[kg] |
| HM-IST1 |
200 |
441 |
500 |
1,000 |
5 |
| HM-IST02 |
500 |
1,103 |
800 |
1,000 |
8 |
| HM-IST03 |
1,000 |
2,205 |
1,000 |
1,500 |
11 |
| HM-IST04 |
2,000 |
4,410 |
1,300 |
1,500 |
20 |
| HM-IST05 |
4,000 |
8,820 |
1,600 |
2,000 |
50 |
| HM-IST06 |
6,000 |
13,230 |
2,000 |
2,000 |
66 |
| HM-IST07 |
8,000 |
17,640 |
2,000 |
2,600 |
75 |
| HM-IST08 |
10,000 |
22,050 |
2,400 |
2,400 |
80 |
| HM-IST09 |
15,000 |
33,075 |
2,600 |
3,000 |
110 |
| HM-IST10 |
20,000 |
44,100 |
3,000 |
3,000 |
130 |
| HM-IST11 |
30,000 |
66,150 |
3,000 |
4,500 |
170 |
| HM-IST12 |
50,000 |
110,250 |
4,000 |
4,000 |
220 |
| HM-IST13 |
70,000 |
154,350 |
4,000 |
5,700 |
310 |
| HM-IST14 |
100,000 |
220,500 |
4,000 |
8,000 |
450 |
| HM-IST15 |
150,000 |
330,750 |
5,000 |
8,000 |
660 |
| HM-IST16 |
200,000 |
441,000 |
5,000 |
10,000 |
900 |
| *Note: Other Sizes Can Be Customized According to The Requirements. |
Features
Snag Free Abrasion Resistant Surface
Smooth, reinforced exterior minimizes entanglement risks with underwater debris or sharp objects.
Automatic Pressure Relief Valve
Prevents rupture due to over-inflation by automatically releasing excess pressure when necessary.
High Visibility Markings
Fluorescent strips and reflective coatings ensure easy identification in low-light or murky waters.
Military Industrial Grade Reliability
Used by naval forces and offshore industries for high-stakes recovery missions, meeting ISO, CE, and Lloyd’s Register standards.
Applications
● Lost cargo container retrieval
● Bridge debris removal
● Offshore wind turbine maintenance
● Underwater archaeology recovery
Advantages
ROV-Operated Connection System
Standardized underwater quick-connect fittings for remote deployment.
Global 72 Hour Response
Emergency technical teams deploy worldwide with on-site repair kits.
5 Year Structural Warranty
Industry-leading warranty covering material/workmanship defects.
Eco Friendly Material Options
Recyclable fabric variants with 75% lower carbon footprint than conventional materials.
FAQ
1. Q: What materials are used in construction?
A: We use military-grade polyurethane-coated nylon (2000 denier) with Kevlar reinforcement. Seams are RF-welded with tensile strength ≥8000N/5cm.
2. Q: How do you ensure reliability in harsh marine environments?
A: Tubes feature:
Saltwater-resistant coatings
UV stabilization
Anti-biofouling treatment
-40°C to +80°C operational range
3. Q: What safety redundancies are built in?
A: All tubes include:
Triple independent air chambers
Automatic pressure relief valves
Fail-safe check valves
Emergency manual dump valves
4. Q: How are the tubes monitored during operations?
A: Our smart models feature:
Real-time pressure sensors
Depth transducers
GPS tracking
Satellite data transmission (optional)
