2.8m × H3.0m Parachute Lift Bags Adhesive Free Seam Technology Non Conductive Material
Description

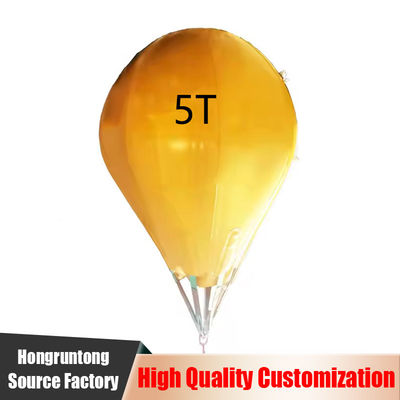

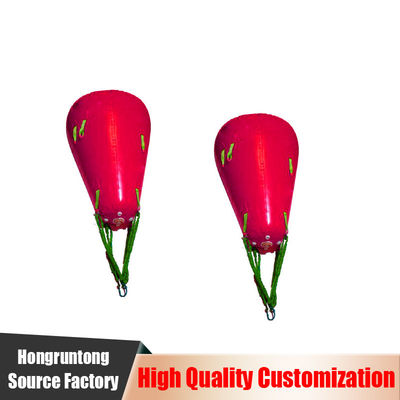

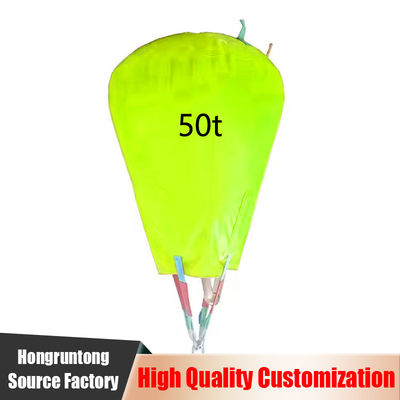

Boat Air Bags are parachute-type underwater lifting bags specifically engineered for raising sunken vessels, hull sections, or marine structures. Their unique open-bottom, single-point lift design provides a stable, vertical ascent during underwater recovery. Constructed from heavy-duty, reinforced fabric and fitted with marine-grade hardware, these air bags offer exceptional strength, durability, and resistance to abrasion and UV exposure. Ideal for both shallow and deep-water operations, they are widely used in commercial diving, shipwreck salvage, and marine construction projects. Each unit includes a pressure relief valve for safety and comes in a variety of lift capacities ranging from 100 kg to 50 tons.
Specifications
Product Name |
Boat Air Bags |
Raw Material |
Top Notch PVC Coating Fabric |
Type |
Parachute |
Size |
500kg, 1000kg, 5000kg 10000kg,etc |
Thickness |
0.4-1.2mm, or as request |
Color |
Yellow, Blue, Black, etc |
Density |
0.33-0.9g/cm3 |
Safety Factor |
7:1 |
Accessories |
Valve, Inflatable Tube, Repair Material |
OEM |
Welcome |
Warranty |
3 Years |
Tolerances |
+/- 0.03 On Densities +/- 0.2 mm On Thickness +/- 0 to +3mm On Width +/- 0 to +3mm On Length |
Model |
Lifting Capacity |
Dimensions |
Appr. Weight |
|
Parachute |
[kg] |
[lbs] |
[mm] |
[kg] |
HM-P01 |
200 |
441 |
800 |
5 |
HM-P02 |
500 |
1,103 |
1,000 |
8 |
HM-P03 |
1,000 |
2,205 |
1,300 |
11 |
HM-P04 |
2,000 |
4,410 |
1,600 |
20 |
HM-P05 |
4,000 |
8,820 |
2,000 |
50 |
HM-P06 |
6,000 |
13,230 |
2,300 |
66 |
HM-P07 |
8,000 |
17,640 |
2,500 |
75 |
HM-P08 |
10,000 |
22,050 |
2,700 |
80 |
HM-P09 |
15,000 |
33,075 |
3,100 |
110 |
HM-P10 |
20,000 |
44,100 |
3,400 |
130 |
HM-P11 |
30,000 |
66,150 |
3,900 |
170 |
HM-P12 |
50,000 |
110,250 |
4,600 |
220 |
HM-P13 |
70,000 |
154,350 |
5,200 |
310 |
HM-P14 |
100,000 |
220,500 |
5,800 |
450 |
HM-P15 |
150,000 |
330,750 |
6,600 |
660 |
HM-P16 |
200,000 |
441,000 |
7,300 |
900 |
*Note: Other sizes can be customized according to the requirements. |
Features
Load Tested with High Safety Factor
Each bag is rigorously load-tested, typically exceeding a 5:1 safety factor to ensure operational reliability.
Compatible with Diver and ROV Operations
Designed for manual use by commercial divers or integration with remotely operated underwater vehicles.
Heat and Cold Resistant Materials
Able to perform consistently in extreme temperature ranges, from icy waters to tropical seas.
Proven Track Record in Global Salvage Projects
Widely trusted by professional salvage teams worldwide for complex underwater lifting and flotation tasks.
Applications
● Underwater Inspection and Maintenance
Advantages
Over 30 Years of Manufacturing Expertise
Decades of experience ensure deep knowledge of materials, design, and marine industry standards.
In-House RD and Design Team
Continuous innovation with custom solutions tailored to client-specific underwater lifting challenges.
Use of Premium TPU and PVC-Coated Fabrics
Strict material selection guarantees exceptional durability, flexibility, and resistance to harsh marine environments.
Advanced Welding and Seam Technology
Employ double and triple weld seam techniques for superior airtightness and mechanical strength.
FAQ
1. How stable is the load during lifting?
The parachute design ensures centered lift with minimal sway and controlled ascent.
2. Can multiple bags be used together?
Yes, multiple Boat Air Bags can be linked for large or irregular loads.
3. What are common applications besides boat salvage?
They are used in dock repair, underwater construction, pipeline lifting, and equipment recovery.
4. Who provides technical support for Boat Air Bags?
Manufacturers and authorized distributors typically offer technical guidance, training, and after-sales service.
