2.0m × H2.5m Underwater Air Lift Bags Iso Rated Lift Eyelets High Abrasion Resistance
Description

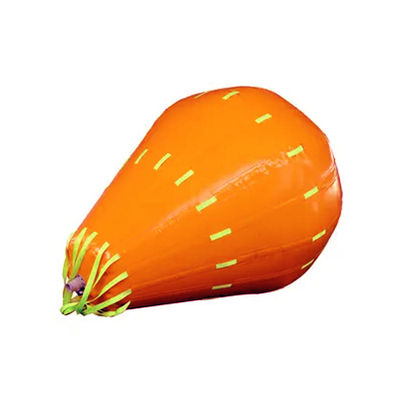

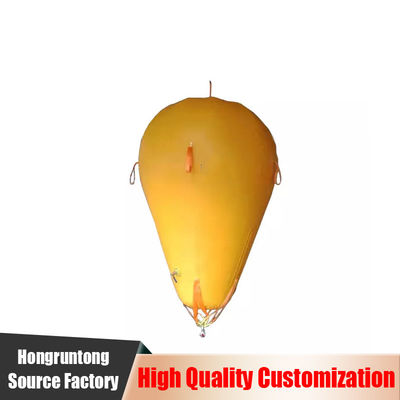

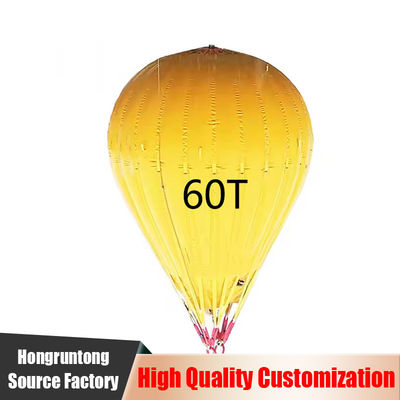

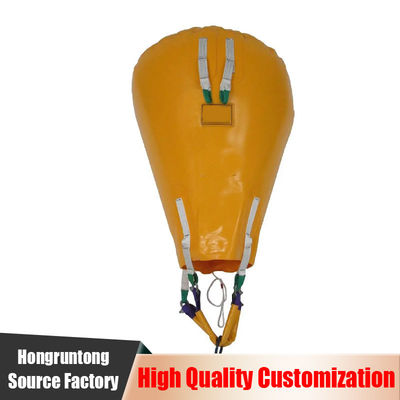

Boat Air Bags are highly versatile lifting solutions designed for underwater recovery of boats, yachts, and submerged marine assets. As parachute-type lift bags, they offer rapid and controlled vertical ascent with minimal horizontal drift. Their streamlined design reduces drag, making them ideal for salvage operations in narrow or confined environments. Suitable for use by divers or remotely operated systems, Boat Air Bags support both shallow and deep-sea applications. These lift bags are essential for emergency flotation, vessel refloating, hull stabilization, and submerged asset relocation.
Specifications
| Product Name |
Boat Air Bags |
| Raw Material |
Top Notch PVC Coating Fabric |
| Type |
Parachute |
| Size |
500kg, 1000kg, 5000kg 10000kg,etc |
| Thickness |
0.4-1.2mm, or as request |
| Color |
Yellow, Blue, Black, etc |
| Density |
0.33-0.9g/cm3 |
| Safety Factor |
7:1 |
| Accessories |
Valve, Inflatable Tube, Repair Material |
| OEM |
Welcome |
| Warranty |
3 Years |
|
Tolerances
|
+/- 0.03 On Densities
+/- 0.2 mm On Thickness
+/- 0 to +3mm On Width
+/- 0 to +3mm On Length
|
| Model |
Lifting Capacity |
Dimensions |
Appr. Weight |
| Parachute |
[kg] |
[lbs] |
[mm] |
[kg] |
| HM-P01 |
200 |
441 |
800 |
5 |
| HM-P02 |
500 |
1,103 |
1,000 |
8 |
| HM-P03 |
1,000 |
2,205 |
1,300 |
11 |
| HM-P04 |
2,000 |
4,410 |
1,600 |
20 |
| HM-P05 |
4,000 |
8,820 |
2,000 |
50 |
| HM-P06 |
6,000 |
13,230 |
2,300 |
66 |
| HM-P07 |
8,000 |
17,640 |
2,500 |
75 |
| HM-P08 |
10,000 |
22,050 |
2,700 |
80 |
| HM-P09 |
15,000 |
33,075 |
3,100 |
110 |
| HM-P10 |
20,000 |
44,100 |
3,400 |
130 |
| HM-P11 |
30,000 |
66,150 |
3,900 |
170 |
| HM-P12 |
50,000 |
110,250 |
4,600 |
220 |
| HM-P13 |
70,000 |
154,350 |
5,200 |
310 |
| HM-P14 |
100,000 |
220,500 |
5,800 |
450 |
| HM-P15 |
150,000 |
330,750 |
6,600 |
660 |
| HM-P16 |
200,000 |
441,000 |
7,300 |
900 |
| *Note: Other sizes can be customized according to the requirements. |
Features
Resistant to Chemical and Biological Exposure
Materials selected to withstand common marine chemicals, fuels, and biological fouling for reliable long-term use.
Compact and Foldable for Transport
When deflated, the bags fold into compact shapes for easy storage and transport, minimizing logistical challenges.
Internal Baffle Systems Available
Optional baffles reduce internal air movement, improving stability during lifting operations and preventing oscillations.
Compliant with International Safety Standards
Designed and tested to meet IMCA D-016, ADCI, and other global diving and salvage regulations.
Applications
● Temporary Buoyancy for Barges
● Emergency Response Situations
● Heavy Equipment Recovery
● Stabilizing Objects During Transport
Advantages
Full Compliance with International Standards
Certified to meet or exceed IMCA, ADCI, ISO, and other global safety and quality regulations.
Comprehensive Quality Control Systems
Multiple inspection stages, including burst tests, pressure checks, and material integrity assessments.
Customizable Lift Capacities and Dimensions
Capable of producing a wide range of sizes, from small tactical bags to large industrial-scale lifting solutions.
Corrosion Resistant Marine Hardware
All fittings and attachment points use AISI 316 stainless steel or equivalent for long service life.
FAQ
1. How do I inspect Boat Air Bags for damage?
Check seams, valves, fabric integrity, and hardware before and after each use.
2. What maintenance is required?
Regular cleaning with fresh water, drying, inspection for leaks, and valve functionality checks.
3. Can Boat Air Bags be customized?
Yes, size, lifting capacity, valve type, and attachment fittings can be customized.
4. Are Boat Air Bags certified?
Many models comply with IMCA, ADCI, and ISO standards for underwater lifting.
