Home /Products/Water Weight Bag/Water Weight Bag with Anti Leak Structure Customized Capacity and Reinforced PVC Fabric for Load Testing

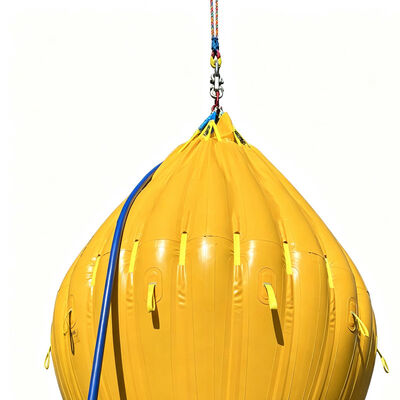

Water Weight Bag with Anti Leak Structure Customized Capacity and Reinforced PVC Fabric for Load Testing

1
MOQ
US$6-US$244
Price
Water Weight Bag with Anti Leak Structure Customized Capacity and Reinforced PVC Fabric for Load Testing
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Durability, Adjustable Weight
Thickness: 0.4mm-2.5mm, Or As Request
Material: Top Notch PVC
Layers: 1-6Ply, Or As Request
Loadcell: 10-150 Tons
Color: Black, Yellow, Orange, Or As Request
Capacity: 1T - 150T
Application: Structural Load Testing, Proof Load Testing
Reinforcement: Nylon Fabric
Usage: Weight Testing
Product Name: Water Weight Bag
Highlight:

Anti Leak Structure Water Weight Bag

,

Customized Capacity Water Filled Weight Bags

,

Reinforced PVC Fabric Load Test Water Bag
Basic Infomation
Place of Origin: China
Brand Name: Hongruntong Marine
Certification: ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
Model Number: HM-WWB66
Payment & Shipping Terms
Packaging Details: Wooden Pallets, Wooden Box
Delivery Time: 5-7 Work Days
Payment Terms: L/C,T/T,D/A,D/P,Western Union,
Supply Ability: 1140 Pcs Per Month
Product Description
Water Load Bags Anti Leak Structure Customized Capacity Offshore Hoist Inspection
Product Overview

Water Weight Bag is a flexible temporary load testing product designed for controlled proof load testing of cranes, davits, hoists, lifting appliances, platforms, structural components, and other load-bearing equipment. It uses water as a temporary test medium, allowing the required load to be established directly at the testing site instead of transporting an equivalent quantity of rigid steel or concrete weights.

This operating method is suitable for marine, offshore, port, shipyard, construction, and heavy industrial environments where testing efficiency, site accessibility, and temporary load management are important considerations.

Case Study: Shipyard Crane Testing in Northern Europe

A ship repair facility in Northern Europe conducted extensive refurbishment on deck cranes, requiring controlled load testing before returning to cargo-handling duties. Limited deck space and simultaneous maintenance operations made traditional steel weights impractical.

Water Weight Bags were delivered folded and installed beneath the crane. Progressive loading allowed engineers to verify connections and monitor crane performance at multiple stages before reaching the final proof load. After testing, water was discharged and bags were stored for future use.

This approach reduced transportation requirements and provided flexible loading control in a constrained working environment.

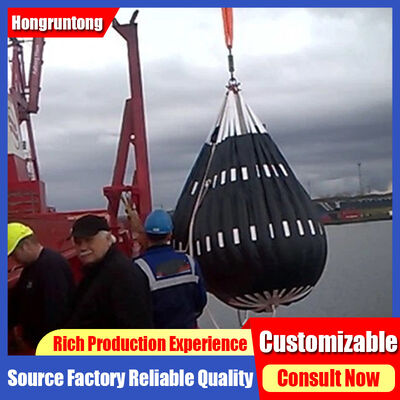

Water weight bag installation for crane testing Water weight bag in operational configuration
Technical Specifications
Product Name
Water Weight Bag
Applications
Proof Load Testing, Offshore Load Testing, Structural Load Testing, Ship Load Testing, Industrial Equipment Testing, Research and Development
Material
100% POLYVINYL CHLORIDE
Phthalate Content
7P Phthalate Free (Includes all Phthalates Listed in CAL Prop 65, CPSIA and REACH)
Weight
37.1 oz square yard/ 1450 +- 50 GSM
Special Features
UV Resistant, BPA Free, Tris Free, Formaldehyde Free, Does Not Contain Conflict Minerals
Care Instructions
Rinse With Fresh Water And Air Dry, Do Not Store with Seawater and Keep Away From Heat Sources
Available Sizes
5000 kg, 8,000 kg, 10,000 kg, 15,000 kg, 20,000 kg, 30,000 kg, 50,000 kg, 100,000 kg
Customization
Special Sizes Supported, OEM Supported
Model Specifications
Model Weight Volume Empty Height Filled Height Max Diameter Dry Weight
HM-1T 1,000 kg / 2,204 lbs 1,000 L / 264 USG 2.52 m / 8.27 ft 2.23 m / 7.33 ft 1.39 m / 4.56 ft 36 kg / 80 lbs
HM-2T 2,000 kg / 4,409 lbs 2,000 L / 528 USG 2.87 m / 9.41 ft 2.6 m / 8.5 ft 1.65 m / 5.43 ft 41 kg / 90 lbs
HM-3T 3,000 kg / 6,613 lbs 3,000 L / 792 USG 3.38 m / 11.11 ft 2.97 m / 9.75 ft 1.82 m / 6.0 ft 50 kg / 110 lbs
HM-5T 5,000 kg / 11,023 lbs 5,000 L / 1,320 USG 4.14 m / 13.60 ft 3.52 m / 11.58 ft 2.13 m / 7.0 ft 80 kg / 176 lbs
HM-10T 10,000 kg / 22,046 lbs 10,000 L / 2,641 USG 5.18 m / 17.0 ft 4.49 m / 14.75 ft 2.70 m / 8.90 ft 130 kg / 286 lbs
HM-20T 20,000 kg / 44,100 lbs 20,000 L / 5,283 USG 6.78 m / 22.25 ft 6.04 m / 19.83 ft 3.42 m / 11.25 ft 224 kg / 492 lbs
HM-50T 50,000 kg / 110,231 lbs 50,000 L / 13,208 USG 8.99 m / 29.50 ft 7.77 m / 25.50 ft 4.56 m / 14.96 ft 544 kg / 1200 lbs
HM-100T 100,000 kg / 220,462 lbs 100,000 L / 26,420 USG 11.27 m / 37.00 ft 10.00 m / 32.9 ft 5.65 m / 18.56 ft 952 kg / 2100 lbs
Key Features
  • Reinforced PVC Fabric: High-strength PVC-coated fabric with reinforced construction for water containment and suspended loading
  • Stable Suspension System: Reinforced load path with webbing and lifting points for secure load transfer
  • Adjustable Loading: Progressive filling allows staged testing and intermediate inspections
  • Foldable Design: Compact storage and transportation when empty
  • Reusable Operation: Suitable for periodic testing programs across multiple locations
Applications
  • Vessel Crane and Deck Equipment Testing: Proof load testing of vessel-mounted cranes, davits, hoists, and lifting appliances
  • Shipyard Load Testing Programs: Reusable temporary load source for multiple testing locations
  • Industrial Crane and Structural Verification: Load testing for industrial plants, fabrication workshops, and construction sites
Why Choose Hongruntong Marine
  • 30+ Years Manufacturing Experience: Extensive knowledge of reinforced fabric construction and marine applications
  • Customized Configurations: Tailored solutions for specific load testing requirements
  • Quality Controlled Manufacturing: Comprehensive inspection of fabric, seams, reinforcement, and lifting points
  • Technical Support: Assistance with product selection, site preparation, and project coordination
Frequently Asked Questions
What equipment can be tested with a Water Weight Bag?
Suitable for temporary load-testing of cranes, davits, hoists, lifting appliances, platforms, beams, and other load-bearing equipment when properly engineered for the application.
Why use water instead of steel or concrete test weights?
Water can be supplied at the testing location, eliminating transportation of heavy rigid weights. Empty bags are compact for storage, and water allows progressive loading during testing procedures.
Can the Water Weight Bag be customized for restricted working areas?
Yes. Dimensions, capacity, lifting-point configuration, and accessories can be customized based on project requirements and site constraints.
How can the service condition of the bag be maintained?
Inspect before and after each use. Check fabric, seams, reinforcement, webbing, lifting points, and valves. After use, drain completely, clean, dry, fold carefully, and store properly.
Can different capacities be provided for complete testing programs?
Yes. Multiple capacities and dimensions can be manufactured. Multiple bags may be used together for higher total loads or specific load distributions.

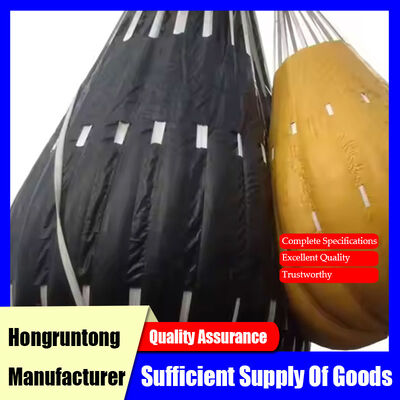

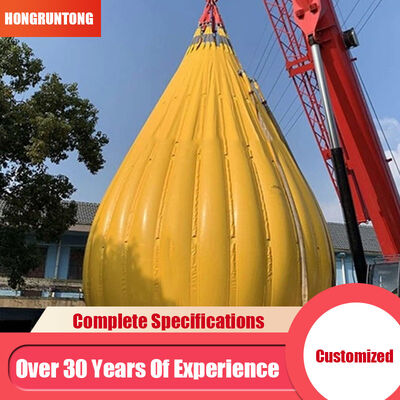

Water weight bag technical details Water weight bag manufacturing quality Water weight bag in industrial application
