Buy Air Lifting Bags Heavy Duty Air Lifting Bags Air Bags for Lifting Heavy Objects
Description
Underwater Air Lift Bags, also known as salvage or flotation bags, are inflatable devices commonly used in marine and underwater operations. These bags are designed to provide buoyancy and lift heavy objects from underwater depths to the surface. Made from durable materials such as PVC or urethane-coated nylon, Underwater Air Lift Bags are capable of withstanding the harsh conditions found in underwater environments. They are equipped with air valves that allow for both inflation and deflation, providing precise control over the lifting process.
These bags are commonly used in salvage operations to recover sunken vessels or submerged equipment. They can also be employed in underwater construction and maintenance projects, providing temporary buoyancy to assist in the installation or removal of underwater structures.
Underwater Air Lift Bags are available in various sizes and lifting capacities to accommodate different requirements. They can be used in conjunction with other lifting equipment such as cranes or winches, ensuring safe and efficient underwater operations. Overall, Underwater Air Lift Bags are indispensable tools in underwater operations, offering a reliable and effective method of lifting and salvaging submerged objects.
Specifications
| Product Name | Underwater Air Lift Bags, Air Lifting Bags |
| Raw Material | Excellent PVC Coating Fabric |
| Type | Cylindrical, Parachute, Pillow |
| Size | 500kg, 1000kg, 5000kg 10000kg,etc |
| Thickness | 0.4-1.2mm, or as request |
| Color | Yellow,Blue,Black,etc |
| Density | 0.33-0.9g/cm3 |
| Safety Factor | 7:1 |
| Accessories | Valve, Inflatable Tube, Repair Material |
| OEM | Welcome |
| Warranty | 3 Years |
|
Tolerances |
+/- 0.03 on densities +/- 0.2 mm on thickness +/- 0 to +3mm on width +/- 0 to +3mm on length |
| Model | Lifting Capacity | Dimensions | Appr. Weight | |
| Parachute | [kg] | [lbs] | [mm] | [kg] |
| HM-P01 | 200 | 441 | 800 | 5 |
| HM-P02 | 500 | 1,103 | 1,000 | 8 |
| HM-P03 | 1,000 | 2,205 | 1,300 | 11 |
| HM-P04 | 2,000 | 4,410 | 1,600 | 20 |
| HM-P05 | 4,000 | 8,820 | 2,000 | 50 |
| HM-P06 | 6,000 | 13,230 | 2,300 | 66 |
| HM-P07 | 8,000 | 17,640 | 2,500 | 75 |
| HM-P08 | 10,000 | 22,050 | 2,700 | 80 |
| HM-P09 | 15,000 | 33,075 | 3,100 | 110 |
| HM-P10 | 20,000 | 44,100 | 3,400 | 130 |
| HM-P11 | 30,000 | 66,150 | 3,900 | 170 |
| HM-P12 | 50,000 | 110,250 | 4,600 | 220 |
| HM-P13 | 70,000 | 154,350 | 5,200 | 310 |
| HM-P14 | 100,000 | 220,500 | 5,800 | 450 |
| HM-P15 | 150,000 | 330,750 | 6,600 | 660 |
| HM-P16 | 200,000 | 441,000 | 7,300 | 900 |
| *Note: Other sizes can be customized according to the requirements. | ||||

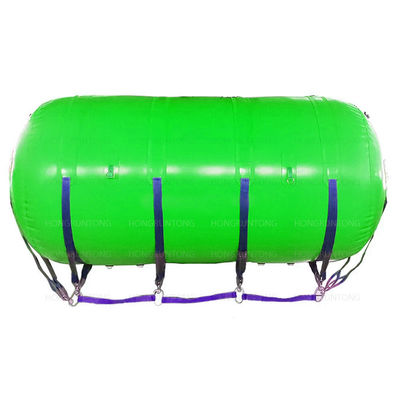

| Model | Buoyancy | Diameter | Length | Appr. Weight | ||
| Cylindrical | [kg] | [lbs] | [mm] | [mm] | [kg] | |
| HM-C01 | 200 | 441 | 500 | 1,000 | 5 | |
| HM-C02 | 500 | 1,103 | 800 | 1,000 | 8 | |
| HM-C03 | 1,000 | 2,205 | 1,000 | 1,500 | 11 | |
| HM-C04 | 2,000 | 4,410 | 1,300 | 1,500 | 20 | |
| HM-C05 | 4,000 | 8,820 | 1,600 | 2,000 | 50 | |
| HM-C06 | 6,000 | 13,230 | 2,000 | 2,000 | 66 | |
| HM-C07 | 8,000 | 17,640 | 2,000 | 2,600 | 75 | |
| HM-C08 | 10,000 | 22,050 | 2,400 | 2,400 | 80 | |
| HM-C09 | 15,000 | 33,075 | 2,600 | 3,000 | 110 | |
| HM-C10 | 20,000 | 44,100 | 3,000 | 3,000 | 130 | |
| HM-C11 | 30,000 | 66,150 | 3,000 | 4,500 | 170 | |
| HM-C12 | 50,000 | 110,250 | 4,000 | 4,000 | 220 | |
| HM-C13 | 70,000 | 154,350 | 4,000 | 5,700 | 310 | |
| HM-C14 | 100,000 | 220,500 | 4,000 | 8,000 | 450 | |
| HM-C15 | 150,000 | 330,750 | 5,000 | 8,000 | 660 | |
| HM-C16 | 200,000 | 441,000 | 5,000 | 10,000 | 900 | |
| *Note: Other sizes can be customized according to the requirements. | ||||||
|
Model |
Capacity |
Length |
Width |
|
|---|---|---|---|---|
|
Pillow |
[kg] |
[lbs] |
[mm] |
[mm] |
| HM-P100 | 100 | 220 | 1,020 | 760 |
| HM-P250 | 250 | 550 | 1,320 | 820 |
| HM-P500 | 500 | 1,100 | 1,300 | 1,200 |
| HM-P1000 | 1,000 | 2,200 | 1,550 | 1,420 |
| HM-P2000 | 2,000 | 4,400 | 1,950 | 1,780 |
| HM-P3000 | 3,000 | 6,600 | 2,900 | 1,950 |
| HM-P5000 | 5,000 | 11,000 | 3,230 | 2,030 |
| *Note: Other sizes can be customized according to the requirements. | ||||
Features
High buoyancy capacity
Underwater Air Lift Bags have a superior lifting capacity, allowing them to lift heavy objects or equipment underwater with ease. This feature showcases the product's professional advantage in providing efficient and effective lifting solutions.
Durable construction
These air lift bags are made with high-quality materials, such as reinforced PVC or urethane, ensuring durability and longevity even in challenging underwater conditions. This durability emphasizes the product's professional quality and guarantees its reliability in demanding underwater operations.
Easy deployment and operation
Underwater Air Lift Bags are designed for quick and easy installation and operation. With user-friendly features like integrated air valves, inflation systems, and attachment points, they can be easily deployed and maneuvered by professionals, saving valuable time and effort.
Versatile applications
These air lift bags are suitable for a wide range of underwater lifting tasks, including salvage operations, underwater construction, pipeline installations, and emergency response situations. This versatility demonstrates the product's professional advantage in being a versatile and effective tool for various underwater tasks.
Applications
● Salvage operations
● Offshore oil and gas exploration
● Underwater construction projects
● Submarine rescue missions
● Diving expeditions
● Shipwreck exploration and recovery
● Underwater vehicle recovery
● Pipeline maintenance and repair
● Underwater archaeology
● Bridge and dock construction or repair in water bodies
Advantages
Extensive Manufacturing Experience
With over 30 years of manufacturing experience, we are well-versed in the production processes and requirements for Underwater Air Lift Bags. Our expertise allows us to ensure high-quality products that meet industry standards.
Specialization in Underwater Air Lift Bags
Our factory is dedicated to the production of Underwater Air Lift Bags, which allows us to focus our resources, knowledge, and technology specifically on this product. This specialization enables us to deliver superior products that are tailored to the unique needs of underwater operations.
Comprehensive Quality Control Measures
We implement stringent quality control measures throughout the manufacturing process to guarantee the reliability and durability of our Underwater Air Lift Bags. From material selection to production testing, we maintain high standards to provide our customers with safe and effective products.
Flexibility and Customization
We understand that different underwater operations require specific configurations and capacities for Air Lift Bags. Our factory offers flexibility and customization options, allowing us to adapt our products to meet the diverse needs of our customers. Whether it's size, lifting capacity, or other specifications, we can tailor our products to meet your specific requirements.
