Heavy Boat Air Bags Marine Airbags for Marine Salvage Operations
Description

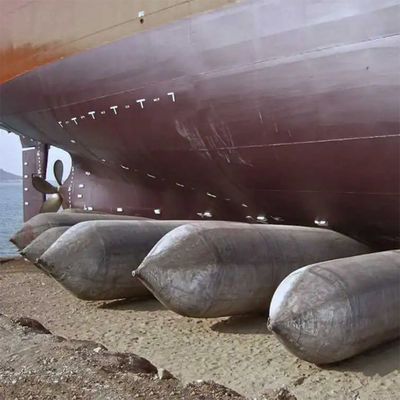

In emergencies, boat air bags serve as critical tools for refloating grounded vessels and stabilizing damaged ships. Their quick deployment and adaptability make them invaluable for maritime rescue and recovery missions.Despite their lightweight design, boat air bags are engineered for maximum strength and durability. The combination of advanced materials and innovative construction techniques ensures reliable performance under high stress.
Specifications
| Item | Description |
| Place of Origin | China |
| Brand Name | Hongruntong Marine |
| Model Number | HM-BAB582 |
| Material | Industrial-Grade Natural Rubber |
| Diameter | 0.5m-3.0m, or as Request |
| Length | 1.0m-28.0m, or as Request |
| Working Pressure | 0.05-0.25 mpa |
| Technics | High pressure, overall winding, explosion-proof |
| Use | ship launching and docking |
| Thickness | 5-13 ply |
| Standard | Conducted by ISO14409 and GB/T1590-2006 system. |
| Accessories | Q355/SS304/SS316, Pressure Gauge, Tee, Plug, Switch, Inflation Tube |
| Packaging | Inner-Plastic Bag; Outer-Standard Wooden Pallets. |
| Keywords | Boat Air Bags |
| Certificates | ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS |
| MOQ | 1 |
| OEM | Welcome |
| Diameter |
Working Pressure |
Working Height |
Bearing Capacity | |
| KN/m | Ton/m | |||
| D=1.0m | 0.14Mpa | 0.6m | 87.96 | 8.98 |
| 0.5m | 109.96 | 11.22 | ||
| 0.4m | 131.95 | 13.46 | ||
| D=1.2m | 0.12Mpa | 0.7m | 94.25 | 9.62 |
| 0.6m | 113.10 | 11.54 | ||
| 0.5m | 131.95 | 13.46 | ||
| 0.4m | 150.80 | 15.39 | ||
| D=1.5m | 0.10Mpa | 0.9m | 94.25 | 9.62 |
| 0.8m | 109.96 | 11.22 | ||
| 0.7m | 125.66 | 12.82 | ||
| 0.6m | 141.37 | 14.43 | ||
| 0.5m | 157.08 | 16.03 | ||
| D=1.8m | 0.09Mpa | 1.1m | 98.96 | 10.10 |
| 1.0m | 113.10 | 11.54 | ||
| 0.9m | 127.33 | 12.98 | ||
| 0.8m | 141.37 | 14.43 | ||
| 0.7m | 155.51 | 15.87 | ||
| 0.6m | 169.65 | 17.31 | ||
| D=2.0m | 0.08Mpa | 1.2m | 100.53 | 10.26 |
| 1.1m | 113.10 | 11.54 | ||
| 1.0m | 125.66 | 12.82 | ||
| 0.9m | 138.23 | 14.11 | ||
| 0.8m | 150.80 | 15.39 | ||
| 0.7m | 163.36 | 16.67 | ||
| 0.6m | 175.93 | 17.95 | ||
| * Other size can be produced follow client's requirements. | ||||
Features
Multiple Inflation Options
Can be inflated using both electric and manual air pumps, offering flexibility in different environments.
Reliable Pressure Gauge
Equipped with easy to read pressure gauges to monitor the inflation levels accurately.
Compact and Space Saving
When deflated, Boat Air Bags take up minimal space, making them easy to store and transport.
Hydraulic Compatibility
Compatible with hydraulic systems for more specialized lifting operations.
Applications
● Transporting heavy marine structures.
● Assisting in offshore platform installations.
● Moving floating docks during construction or relocation.
● Supporting the assembly of large marine projects.
Advantages
Durability
Our Boat Air Bags are designed to withstand extreme conditions, ensuring long-lasting performance and reduced maintenance costs.
Strong R D Team
Our dedicated research and development team constantly innovates to improve product designs and incorporate the latest technological advancements.
High Quality Materials
We use only premium materials to manufacture our Boat Air Bags, ensuring superior strength and durability.
Comprehensive Testing
Each Boat Air Bag undergoes rigorous testing, including pressure testing and durability trials, before being released for sale.
FAQ
1. Are Boat Air Bags environmentally friendly?
Many Boat Air Bags are made with eco-friendly materials and are reusable, contributing to sustainability.
2. Do Boat Air Bags require a specific air pressure?
Yes, each Boat Air Bag has a recommended air pressure, which should be followed for safe and optimal performance.
3. What is the maximum inflation pressure for Boat Air Bags?
The maximum inflation pressure varies based on the product, but typically it is around 0.2 MPa (2 bar).
4. How do you know if a Boat Air Bag is properly inflated?
Proper inflation is achieved when the airbag is firm but not over-inflated. Visual inspection and using a pressure gauge are methods to check inflation levels.
