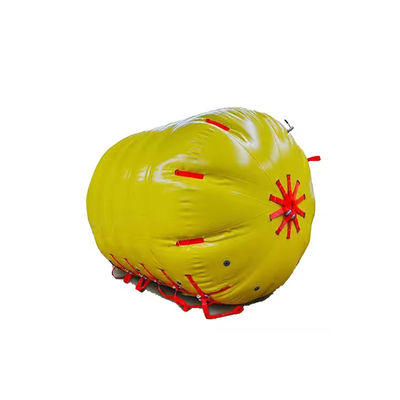

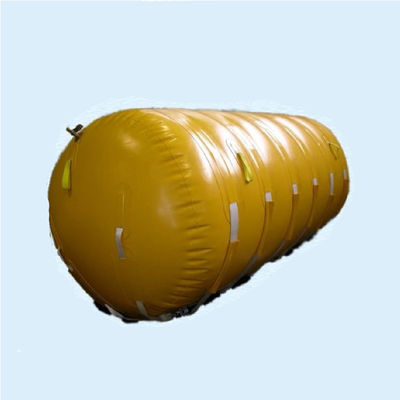

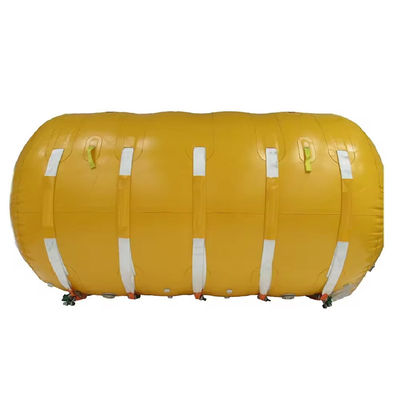

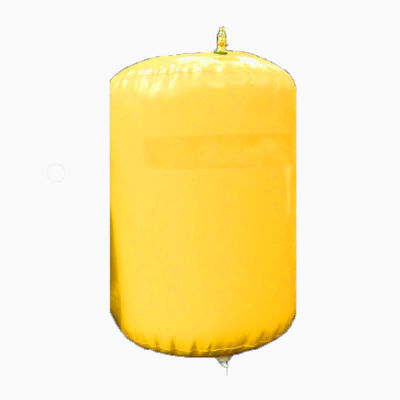

3.0m Heavy Duty Salvage Tube 30 Ton Lift UV Proof Coating Dual Layer Construction
Description
Inflatable Salvage Tubes deliver transformative economic benefits to marine recovery operations. Eliminating the need for massive crane barges significantly slashes project costs and logistical complexity. Their compact, lightweight design drastically reduces transport and storage expenses. Rapid deployment translates to shorter project timelines and lower labor requirements. Crucially, they are fully reusable across numerous jobs, maximizing return on investment. Precise buoyancy control minimizes damage to recovered assets, preserving value. Offering reliable performance down to 300 meters with minimal maintenance, these tubes provide a consistently cost-effective, operationally streamlined alternative to cumbersome traditional salvage methods, boosting project viability and profitability.
Specifications
| Product Name |
Inflatable Salvage Tubes |
| Raw Material |
PVC Coating Fabric |
| Type |
Cylindrical |
| Size |
500kg, 1000kg, 5000kg 10000kg,etc |
| Thickness |
0.4-1.2mm, Or As Request |
| Color |
Yellow, Blue, Black, etc |
| Density |
0.33-0.9g/cm3 |
| Safety Factor |
7:1 |
|
Tolerances
|
+/- 0.03 On Densities
+/- 0.2 Mm On Thickness
+/- 0 To +3mm On Width
+/- 0 To +3mm On Length
|
| Model |
Buoyancy |
Diameter |
Length |
Appr. Weight |
| Cylindrical |
[kg] |
[lbs] |
[mm] |
[mm] |
[kg] |
| HM-IST1 |
200 |
441 |
500 |
1,000 |
5 |
| HM-IST02 |
500 |
1,103 |
800 |
1,000 |
8 |
| HM-IST03 |
1,000 |
2,205 |
1,000 |
1,500 |
11 |
| HM-IST04 |
2,000 |
4,410 |
1,300 |
1,500 |
20 |
| HM-IST05 |
4,000 |
8,820 |
1,600 |
2,000 |
50 |
| HM-IST06 |
6,000 |
13,230 |
2,000 |
2,000 |
66 |
| HM-IST07 |
8,000 |
17,640 |
2,000 |
2,600 |
75 |
| HM-IST08 |
10,000 |
22,050 |
2,400 |
2,400 |
80 |
| HM-IST09 |
15,000 |
33,075 |
2,600 |
3,000 |
110 |
| HM-IST10 |
20,000 |
44,100 |
3,000 |
3,000 |
130 |
| HM-IST11 |
30,000 |
66,150 |
3,000 |
4,500 |
170 |
| HM-IST12 |
50,000 |
110,250 |
4,000 |
4,000 |
220 |
| HM-IST13 |
70,000 |
154,350 |
4,000 |
5,700 |
310 |
| HM-IST14 |
100,000 |
220,500 |
4,000 |
8,000 |
450 |
| HM-IST15 |
150,000 |
330,750 |
5,000 |
8,000 |
660 |
| HM-IST16 |
200,000 |
441,000 |
5,000 |
10,000 |
900 |
| *Note: Other Sizes Can Be Customized According to The Requirements. |
Features
Low Maintenance & Easy Storage
Designed for quick deflation and compact folding, requiring minimal maintenance between deployments.
ROV Diver Compatibility
Can be deployed via remotely operated vehicles (ROVs) or manually by divers, offering flexibility in operation.
Fast Deployment (Reduces Downtime)
Eliminates the need for heavy cranes or barges, cutting project timelines by up to 50% compared to traditional methods.
Redundant Air Chambers
Multi-compartment design ensures buoyancy retention even if one chamber is damaged—critical for mission-critical salvage.
Applications
● Harbor clearance operations
● Military equipment retrieval
● Sunken vehicle recovery
● Oil rig component salvage
Advantages
Smart Buoyancy Monitoring
Optional integrated IoT sensors for real-time pressure/depth/position tracking via satellite.
Custom Shape Development
Bespoke designs for non-cylindrical objects (e.g., aircraft wings, irregular cargo) using CFD modeling.
90 Second Emergency Deployment
Ultra-rapid inflation via dual redundant CO₂ systems (primary + backup).
Abrasion Resistant Base Layer
8mm-thick reinforced PVC skid pads prevent damage from rocky seabeds.
FAQ
1. Q: What maintenance is required between uses?
A: Only:
Freshwater rinse
Visual inspection
Valve function check
Annual pressure test (recommended)
2. Q: Can the tubes be repaired if damaged?
A: Yes - we provide:
Field repair kits
Certified repair procedures
Factory refurbishment service
Permanent weld repairs maintain 100% strength
3. Q: How are the tubes transported and stored?
A: They:
Fold to 10% of inflated size
Weigh 15-150kg depending on size
Pack in wheeled transit cases
Require no special storage conditions
4. Q: What inflation methods are supported?
A: Options include:
High-pressure CO₂ (standard)
Electric compressors
SCUBA tanks
Surface-supplied air
