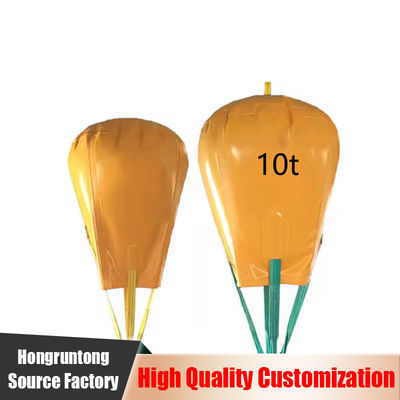

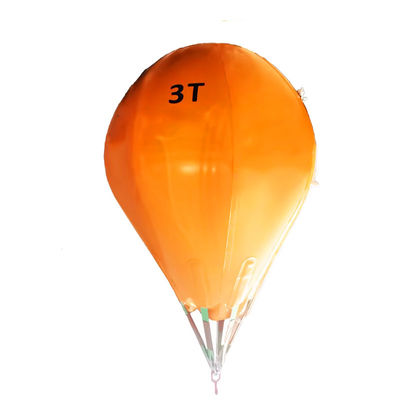

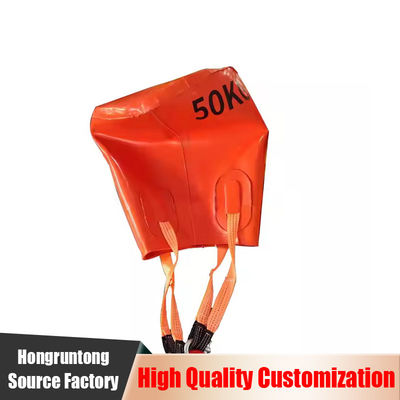

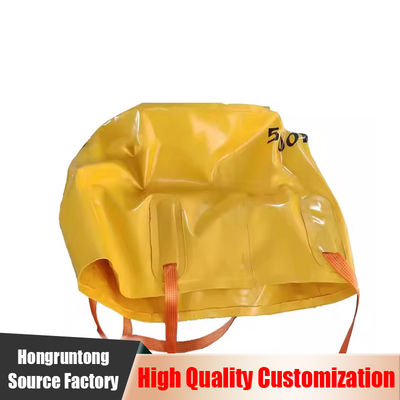

0.6m × H0.8m Boat Air Bags Reinforced Pvc Coated Nylon Fabric Double Welded
Description
Boat Air Bags are designed to meet diverse field requirements, with customizable sizes, fittings, and labeling options available. Whether you're lifting a small sailboat or a large barge, these parachute-type air bags can be configured for your exact needs. They are foldable for compact transport, quick to deploy, and easy to handle underwater. Available with accessories such as inflation hoses, pressure gauges, and protective sleeves, Boat Air Bags provide a complete solution for underwater lifting challenges in both commercial and emergency scenarios.
Specifications
Product Name | Boat Air Bags |
Raw Material | Top Notch PVC Coating Fabric |
Type | Parachute |
Size | 500kg, 1000kg, 5000kg 10000kg,etc |
Thickness | 0.4-1.2mm, or as request |
Color | Yellow, Blue, Black, etc |
Density | 0.33-0.9g/cm3 |
Safety Factor | 7:1 |
Accessories | Valve, Inflatable Tube, Repair Material |
OEM | Welcome |
Warranty | 3 Years |
Tolerances |
+/- 0.03 On Densities +/- 0.2 mm On Thickness +/- 0 to +3mm On Width +/- 0 to +3mm On Length |
Model | Lifting Capacity | Dimensions | Appr. Weight | |
Parachute | [kg] | [lbs] | [mm] | [kg] |
HM-P01 | 200 | 441 | 800 | 5 |
HM-P02 | 500 | 1,103 | 1,000 | 8 |
HM-P03 | 1,000 | 2,205 | 1,300 | 11 |
HM-P04 | 2,000 | 4,410 | 1,600 | 20 |
HM-P05 | 4,000 | 8,820 | 2,000 | 50 |
HM-P06 | 6,000 | 13,230 | 2,300 | 66 |
HM-P07 | 8,000 | 17,640 | 2,500 | 75 |
HM-P08 | 10,000 | 22,050 | 2,700 | 80 |
HM-P09 | 15,000 | 33,075 | 3,100 | 110 |
HM-P10 | 20,000 | 44,100 | 3,400 | 130 |
HM-P11 | 30,000 | 66,150 | 3,900 | 170 |
HM-P12 | 50,000 | 110,250 | 4,600 | 220 |
HM-P13 | 70,000 | 154,350 | 5,200 | 310 |
HM-P14 | 100,000 | 220,500 | 5,800 | 450 |
HM-P15 | 150,000 | 330,750 | 6,600 | 660 |
HM-P16 | 200,000 | 441,000 | 7,300 | 900 |
*Note: Other sizes can be customized according to the requirements. |
Features
Open Bottom Design for Controlled Water Release
Allows water to escape during inflation, ensuring stable and smooth vertical ascent without sudden buoyancy spikes.
Single-Point Lift Attachment
Provides a balanced and centered lift, minimizing load swinging and improving underwater maneuverability.
Reinforced High-Tensile Fabric Construction
Manufactured from TPU- or PVC-coated nylon with double or triple-layer reinforcement for exceptional strength and durability.
Heavy Duty, Corrosion Resistant Stainless Steel Hardware
Includes marine-grade D-rings and shackles that withstand harsh saltwater environments and heavy load cycles.
Applications
● Marine Salvage Operations
Advantages
Integration with ROV and Diver Operations
Designs optimized for compatibility with both diver deployment and remote underwater vehicles.
Focus on Safety and Reliability
Every bag undergoes rigorous testing to guarantee a safety factor of at least 5:1.
Sustainable Manufacturing Practices
Commitment to environmentally responsible production processes and material sourcing.
Strong Customer Relationships and Repeat Business
Long-term partnerships built on trust, consistent quality, and reliable delivery performance.
FAQ
1. What is a Boat Air Bag?
A Boat Air Bag is a parachute-type underwater lifting bag designed specifically for raising and stabilizing sunken boats and marine vessels.
2. How does a parachute type lifting bag differ from other lift bags?
It features an open-bottom design and single-point lift, providing stable vertical ascent with minimal swinging.
3. What materials are Boat Air Bags made from?
They are typically made from reinforced TPU- or PVC-coated nylon fabric, ensuring durability and resistance to abrasion and UV exposure.
4. What is the typical lifting capacity range?
Boat Air Bags come in sizes ranging from 100 kg up to 50,000 kg (50 tons) or more.
