Shipbuilding Shiprepair Docking Marine Airbags Roller Ship Launching Airbags
Description

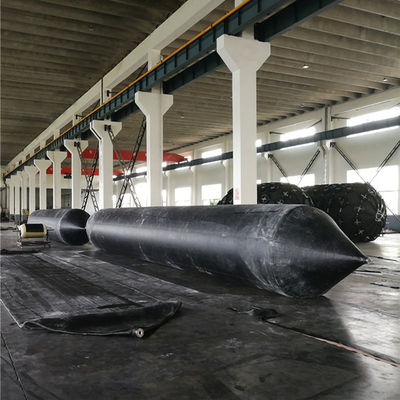

Ship launching airbags are innovative inflatable devices designed to launch and land ships and other vessels. These airbags provide enormous buoyant support and flexibility during launching operations, reducing the risk of damage to both the ship and the launching facility.
The ship launching airbags are made from a combination of rubber layers and synthetic-cord reinforcement, ensuring their durability and high load-bearing capacity. They are also equipped with reliable safety valves to maintain proper pressure and prevent over-inflation.
Using ship launching airbags offers several advantages. Firstly, they provide a cost-effective alternative to traditional launching methods such as slipways or dry docks. Secondly, they allow for flexible launching at different locations, which is especially beneficial in areas with limited infrastructure. Thirdly, airbags can effectively distribute the vessel's weight during the launching process, minimizing stress concentration and potential damage to the ship's structure.
In conclusion, ship launching airbags are a safe, efficient, and environmentally friendly solution for launching and landing ships. With their ease of use and ability to adapt to various conditions, these airbags have revolutionized shipbuilding and become a preferred choice for shipyards around the world.
Specifications
| Item | Description |
| Place of Origin | China |
| Brand Name | Hongruntong Marine |
| Model Number | FT007 |
| Material | Durable & Robust Natural Rubber |
| Diameter | 0.5m-3.0m, or As Request |
| Length | 1.0m-28.0m, or As Request |
| Working Pressure | 0.05-0.25 mpa |
| Technics | High pressure, overall winding, explosion-proof |
| Use | ship launching and docking |
| Thickness | 5-15 ply |
| Standard | Conducted by ISO14409 and GB/T1590-2006 system. |
| Accessories | Q355/SS304/SS316, Pressure Gauge, Tee, Plug, Switch, Inflation Tube |
| Packaging | Inner-Plastic Bag; Outer-Standard Wooden Pallets. |
| Keywords | Marine rubber airbags for ship launching |
| Certificates | ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS |
| MOQ | 1 |
| OEM | Welcome |
| Diameter |
Working Pressure |
Working Height |
Bearing Capacity | |
| KN/m | Ton/m | |||
| D=1.0m | 0.14Mpa | 0.6m | 87.96 | 8.98 |
| 0.5m | 109.96 | 11.22 | ||
| 0.4m | 131.95 | 13.46 | ||
| D=1.2m | 0.12Mpa | 0.7m | 94.25 | 9.62 |
| 0.6m | 113.10 | 11.54 | ||
| 0.5m | 131.95 | 13.46 | ||
| 0.4m | 150.80 | 15.39 | ||
| D=1.5m | 0.10Mpa | 0.9m | 94.25 | 9.62 |
| 0.8m | 109.96 | 11.22 | ||
| 0.7m | 125.66 | 12.82 | ||
| 0.6m | 141.37 | 14.43 | ||
| 0.5m | 157.08 | 16.03 | ||
| D=1.8m | 0.09Mpa | 1.1m | 98.96 | 10.10 |
| 1.0m | 113.10 | 11.54 | ||
| 0.9m | 127.33 | 12.98 | ||
| 0.8m | 141.37 | 14.43 | ||
| 0.7m | 155.51 | 15.87 | ||
| 0.6m | 169.65 | 17.31 | ||
| D=2.0m | 0.08Mpa | 1.2m | 100.53 | 10.26 |
| 1.1m | 113.10 | 11.54 | ||
| 1.0m | 125.66 | 12.82 | ||
| 0.9m | 138.23 | 14.11 | ||
| 0.8m | 150.80 | 15.39 | ||
| 0.7m | 163.36 | 16.67 | ||
| 0.6m | 175.93 | 17.95 | ||
| * Other size can be produced follow client's requirements. | ||||
Features
Buoyancy and Load-Bearing Capacity
Ship launching airbags are designed to provide substantial buoyant support, enabling them to effectively lift and launch heavy vessels. Their high load-bearing capacity ensures safe and efficient launching operations.
Durability and Flexibility
These airbags are constructed using durable rubber layers and reinforced with synthetic cord materials. This combination allows them to withstand the immense pressure exerted during launchings while being flexible enough to adapt to various vessel shapes and sizes.
Safety Mechanisms
Ship launching airbags are equipped with reliable safety valves that help maintain optimal pressure levels. This ensures controlled inflation and prevents over-inflation, guaranteeing the safety of both the airbag and the vessel during the launching process.
Cost-Effectiveness and Versatility
Compared to traditional launching methods, such as slipways or dry docks, ship launching airbags offer a cost-effective alternative. They eliminate the need for expensive infrastructure and allow for launching in diverse locations, making them a versatile choice for shipyards worldwide.
Applications
● Shipyards
● Port facilities
● Offshore construction sites
● Repair and maintenance operations
● Floating dry docks
● Marine salvage operations
● Waterfront infrastructure development projects
● Heavy cargo transport
● Marine research and exploration missions
● Ferry and passenger vessel launching
Advantages
Quality and Durability
Our ship launching airbags are manufactured using high-quality materials and undergo stringent quality control measures. This ensures their durability and reliability, allowing for repeated use in demanding marine environments.
Customization
We offer a wide range of sizes and configurations to cater to the unique needs of different vessel types and launching requirements. Our ability to customize the airbags allows for optimal performance and maximum safety during ship launching operations.
Engineering Expertise
Our team of experienced engineers provides technical support and guidance throughout the entire process, from design to installation. Their expertise ensures that our ship launching airbags are properly selected, deployed, and operated, resulting in efficient and successful launches.
Cost-effectiveness
Our ship launching airbags offer a cost-effective alternative to traditional launching methods. By utilizing airbags, the need for expensive infrastructure, such as dry docks or slipways, can be minimized or eliminated. This not only reduces overall project costs but also saves time and resources.
