High Tensile Strength Reusable Long Lifespan Inflatable Marine Airbags for Ship Launching

1
MOQ
US$7-US$177
Price
High Tensile Strength Reusable Long Lifespan Inflatable Marine Airbags for Ship Launching
Features Gallery Product Description Request A Quote
Features
Specifications
Diameter: 0.5M-3.0M, Or As Request
Length: 3M-28M, Or As Request
Feature: Reusable And Long Lifespan
Application: Ship/Vessel/Boat Launching & Docking
Product Name: Inflatable Marine Airbags
Inflation Tube: 30M, Free Of Charge
Service Life: 20 Years
Webbing Harness: 7:1
Highlight:

High Tensile Strength Inflatable Marine Airbags

,

Reusable Marine Airbags

,

Long Lifespan Ship Launching Airbags
Basic Infomation
Place of Origin: China
Brand Name: Hongruntong Marine
Certification: ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS
Model Number: HM-IMA18
Payment & Shipping Terms
Packaging Details: Wooden Pallets, Wooden Box
Delivery Time: 5-8 Work Days
Payment Terms: L/C,T/T,D/A,D/P,Western Union,
Supply Ability: 2170 Pcs Per Month
Product Description
Inflatable Marine Airbags
Inflatable Marine Airbags are flexible pressure-bearing equipment developed for vessel launching, hauling, shifting, landing, and temporary marine support operations. The product consists of a reinforced rubber body, internal high-strength synthetic cord layers, end fittings, and an inflation system.
Case Study: 3,600-Ton Cargo Vessel Launching
A shipbuilding contractor in South Asia successfully launched a 3,600-ton cargo vessel using our marine airbags. The vessel was constructed onshore at a coastal fabrication facility that lacked permanent dry dock or conventional launching systems.
Hongruntong Marine provided specially configured airbags that were positioned beneath the vessel according to calculated load distribution. The system allowed controlled movement across prepared surfaces, with continuous monitoring and airbag repositioning throughout the operation.

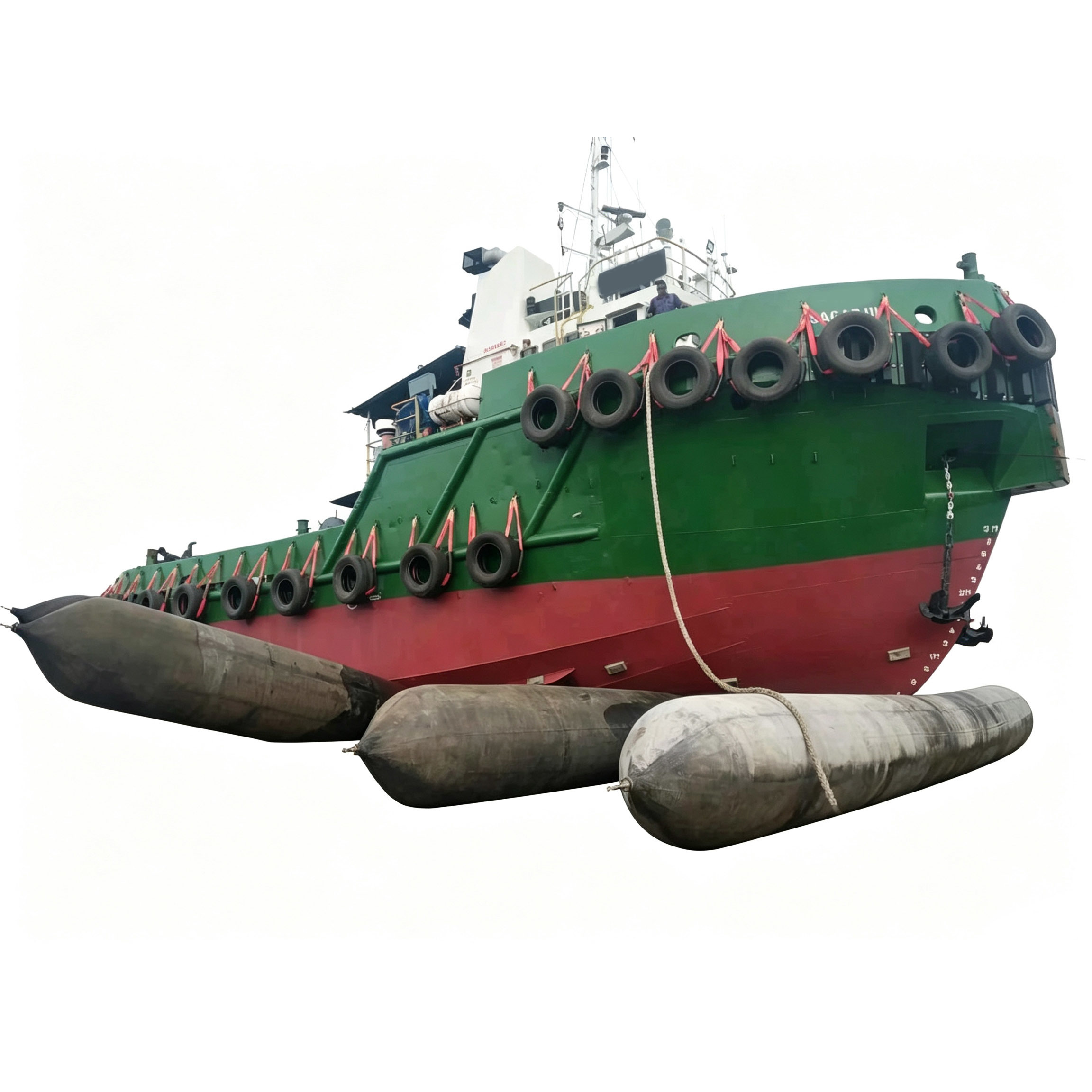

Marine airbags supporting vessel during launching operation Close-up view of inflated marine airbag under vessel hull
Technical Specifications
Product Name Inflatable Marine Airbags
Material 100% Grade A Natural Rubber
Type Inflatable, Lifting, Roller, Launching
Diameter 0.5m-3.0m, or As Request
Length 1.0m-28.0m, or As Request
Working Pressure 0.05-0.25 MPa
Standard ISO14409 and GB/T1590-2006
Certificates ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS
Load Capacity Specifications
Diameter Working Pressure Working Height Bearing Capacity (KN/m) Bearing Capacity (Ton/m)
D=1.0m 0.14 MPa 0.6m 87.96 8.98
D=1.0m 0.14 MPa 0.5m 109.96 11.22
D=1.0m 0.14 MPa 0.4m 131.95 13.46
D=1.2m 0.12 MPa 0.7m 94.25 9.62
D=1.2m 0.12 MPa 0.6m 113.10 11.54
* Complete specifications available upon request. Other sizes can be produced following client requirements.
Key Features
  • Optimized Rubber and Reinforcement System: Multiple layers of high-strength synthetic tire cord provide tensile strength while maintaining flexibility for deformation under load.
  • Controlled Load Distribution: Creates effective contact zones beneath the hull to distribute vessel weight across multiple flexible support points.
  • Resistance to Mechanical Wear: Outer rubber layer designed to withstand operational abrasion, compression, and repeated loading cycles.
  • Adaptable Dimensions: Available in various diameters and lengths to accommodate different vessel sizes and project requirements.
Applications
  • Launching newly built vessels from onshore construction sites
  • Ship repair and maintenance operations requiring vessel relocation
  • Marine construction and temporary vessel positioning
  • Bridge construction and repair operations
  • Marine salvaging and wreck removal
  • Heavy machinery and equipment transportation on water
Why Choose Hongruntong Marine
  • 30+ Years Manufacturing Experience: Established production foundation for reinforced rubber equipment in demanding marine environments.
  • Technical Selection Based on Actual Conditions: Custom configurations based on vessel weight, dimensions, and project requirements.
  • Comprehensive Quality Control: Manufacturing controls at all production stages including reinforcement assembly, bonding, and vulcanization.
  • International Project Support: Experience with international transportation, technical documentation, and coordinated delivery schedules.
Frequently Asked Questions
  • What is the main operating principle?
    The airbag uses controlled internal air pressure to create a flexible load-bearing structure that distributes vessel weight across multiple support points during movement.
  • Can airbags operate on concrete surfaces?
    Yes, on properly prepared concrete surfaces free from sharp edges, exposed reinforcement, and other hazards.
  • How does working pressure affect performance?
    Working pressure influences supporting conditions and deformation under load. Appropriate pressure is established based on airbag specification and vessel conditions.
  • How should used airbags be maintained?
    After operation, airbags should be deflated, cleaned, dried, and inspected for damage before proper storage.
  • Can you manufacture custom airbags?
    Yes, we can configure products according to specific vessel weight, dimensions, operating environment, and project parameters.
Marine airbag installation and positioning demonstration Inflated marine airbags supporting vessel structure Professional marine airbag manufacturing and quality control
