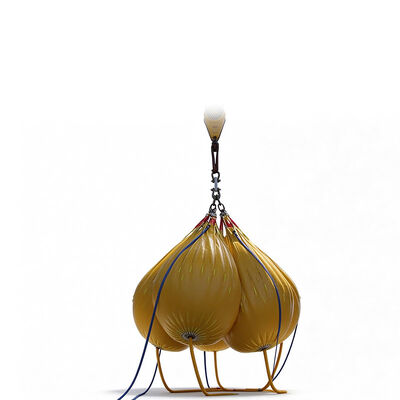

10Ton PVC Load Testing Water Bags with Reinforced Nylon Fabric for Crane Load Test Water Bags

10 Ton PVC Water Bag for Crane Load Testing

Load Testing Water Bags are flexible testing devices designed to provide controlled loads for evaluating the performance and load-bearing capability of lifting equipment, structural assemblies, and mechanical handling systems. They are widely applicable to proof load testing, commissioning inspections, scheduled maintenance, and post-repair verification of cranes, davits, winches, hoists, lifting beams, and offshore handling equipment. By using water as the loading medium, these bags provide a practical alternative to solid test weights, particularly for projects requiring frequent mobilization, flexible load configurations, and efficient use of working space.

Manufactured from PVC-coated fabric, Load Testing Water Bags combine a reinforced textile structure with a water-resistant coating. The fabric reinforcement contributes to the overall structural integrity, while the PVC surface helps protect against moisture and routine environmental exposure. The performance of the finished product depends on material specifications, coating condition, seam construction, lifting attachment reinforcement, and manufacturing consistency. These factors must be considered in relation to the intended test load, operating environment, and expected frequency of use.

Available capacities and dimensions can be selected according to project requirements. The appropriate configuration depends on the equipment's rated capacity, prescribed test load, suspension height, available clearance, rigging geometry, and filling and drainage arrangements. Where a higher total test load is required, multiple bags may be used within an engineered configuration, provided that the distribution of the load and the capacity of every component in the lifting system have been verified. The capacity of an individual bag must not be confused with the allowable capacity of the complete testing arrangement.

A major functional advantage of water-based testing is the ability to establish the load progressively. Water is introduced through the designated filling connection until the required test condition is reached. The applied load can be adjusted in accordance with the approved test procedure, allowing qualified personnel to observe equipment behavior at specified loading stages. Following completion of the test, the water is discharged through the designated outlet, and the bags can be lowered, recovered, inspected, and stored for subsequent use.

Load measurement requires appropriate attention. Water volume can be used to estimate water mass, with one cubic metre of fresh water corresponding to approximately one tonne under typical conditions. However, the actual suspended load also includes the mass of the bag and all associated lifting accessories. Where a specific measurement accuracy is required, calibrated load cells, weighing systems, or another approved measurement method should be used. Filling rates and load increments must be controlled to prevent unintended loading and maintain stability.

Load Testing Water Bags are particularly valuable for maintenance contractors, shipyards, ports, offshore operators, and industrial facilities that conduct repeated testing across different locations. Their empty form facilitates transportation and storage, while water filling provides flexibility in establishing the required test load. When supported by appropriate engineering assessment, pre-use inspection, correct rigging, and documented operating procedures, these bags can help simplify testing logistics and support consistent equipment verification.

A heavy industrial maintenance contractor in Northern Europe was commissioned to verify a 75-tonne gantry crane used for handling fabricated steel assemblies and large mechanical components at a coastal manufacturing facility. The crane had undergone repairs to its hoisting system and required a formal load test before returning to production. The facility's engineering department needed a testing arrangement capable of meeting the prescribed load requirements while minimizing disruption to adjacent fabrication operations.

The site presented several logistical challenges. The gantry crane operated across a large production area, but the available space for storing solid test weights was limited. Transporting and positioning the required weights would involve multiple vehicle movements and additional lifting operations. The facility also needed to coordinate the test with other production activities, making a compact and flexible loading solution preferable.

The contractor evaluated PVC-coated Load Testing Water Bags as a possible alternative. The technical review covered the required test load, the approved testing procedure, the crane's available lifting height, the proposed bag configuration, and the capacity of the associated rigging. The team also assessed water availability, drainage requirements, and the ground and working-area conditions. Before deployment, the bags were inspected for damage, leakage, seam deterioration, and the condition of their lifting attachments.

The test was planned in a designated area separated from normal production traffic. The bags were connected to the approved lifting arrangement, and water was introduced progressively under the supervision of the test engineer. The team monitored the applied load and observed the crane's hoisting performance, braking response, load-holding behavior, and visible structural response. The loading sequence followed the approved procedure, with the operation stopped if any abnormal condition required investigation.

Once the prescribed test stages had been completed, the responsible inspection personnel evaluated the recorded results against the applicable acceptance criteria. The bags were then drained in a controlled manner, lowered safely, and removed from the work area. Compared with the proposed solid-weight method, the water-bag arrangement reduced the need to transport and reposition multiple heavy items and simplified the recovery process after the test.

Following the operation, the contractor introduced a standard procedure for future use of the bags. The procedure included pre-use inspection, verification of rigging compatibility, controlled filling, load measurement, drainage, drying, and storage. The maintenance team also retained records of each testing configuration and inspection result to support traceability and future planning.

The project demonstrated that water-based test loading can provide logistical advantages for large lifting systems when the test requirements and site conditions are carefully assessed. The contractor considered the approach suitable for other compatible lifting-equipment tests, subject to individual engineering review and approval. The principal benefit was the reduction of handling and storage demands while maintaining the required controls for formal load testing.

Load Testing Water Bags are manufactured from PVC-coated fabric to provide a flexible container suitable for controlled water filling and suspended-load applications. The reinforced textile structure contributes to the bag's mechanical properties, while the PVC coating provides a water-resistant surface for normal operating conditions. This construction supports compact storage and transportation when the bag is empty, making it practical for maintenance teams that regularly move testing equipment between industrial facilities, shipyards, and marine installations.

Material selection must account for the intended test capacity, handling frequency, and environmental conditions. The condition of the coating, fabric reinforcement, seams, and attachment areas influences the bag's ability to remain serviceable during repeated filling, lifting, draining, and storage. In demanding environments, exposure to abrasion, sunlight, temperature variation, or unsuitable chemicals may affect material performance. Therefore, product specifications should be checked against the actual operating conditions rather than relying solely on general material descriptions.

The manufacturing quality of seams and reinforced areas is particularly important because these components form part of the water-containing structure and load-bearing assembly. Inspection should identify cuts, punctures, coating separation, leaking seams, or damage caused by improper handling. The bag should be positioned away from sharp edges and abrasive surfaces, and dragging or uncontrolled movement should be avoided. Appropriate material selection combined with disciplined inspection helps support reliable operation and reduce premature deterioration.

Water-based loading enables the test weight to be established progressively according to the requirements of the approved test procedure. This feature allows the operator to introduce water in controlled increments rather than assemble the entire test load from solid weights before testing begins. It can be particularly useful when equipment must be tested at different load levels or when the site has limited facilities for storing and moving heavy materials.

The relationship between water volume and mass provides a convenient basis for initial planning. Under typical conditions, one cubic metre of fresh water has a mass of approximately one tonne. However, the actual applied load must include the empty bag, water, and all associated lifting accessories. Water volume should not be treated as a substitute for load verification when the applicable procedure requires a defined level of accuracy. Depending on the project, calibrated load cells, weighing systems, or approved flow-measurement equipment may be necessary.

The bag's filling and discharge arrangements should be compatible with the intended testing process. Filling rates must be controlled to prevent sudden changes in the applied load, while the test supervisor should monitor load stability and the response of the equipment under test. Appropriate measurement and recording procedures help establish traceable test conditions and allow the results to be evaluated against the relevant acceptance criteria.

Lifting attachments transfer the filled bag's weight to the crane, davit, hoist, or other equipment being tested. Their design and condition are therefore essential to the safety and suitability of the complete arrangement. Reinforcement around lifting points, joining quality, connection dimensions, and load distribution must be appropriate for the intended capacity and suspension geometry.

Before testing, the complete rigging arrangement should be checked for compatibility. Hooks, shackles, slings, spreader beams, and other accessories must have suitable working load limits for the actual configuration. Sling angles, load distribution, and other relevant loading effects should be evaluated by qualified personnel. The supporting equipment and structure must also be confirmed as suitable for the planned operation.

Inspection should include the attachment areas, visible stitching, fabric reinforcement, connection hardware, and any locations exposed to repeated contact with rigging components. Deformation, corrosion, abrasion, damaged stitching, or other deterioration requires assessment before use. The bag must not be lifted using unauthorized points or improvised connections. Maintaining attachment integrity and suspension stability helps reduce the risk of localized overstress and uncontrolled load movement.

Load Testing Water Bags can be reused when their condition remains acceptable and continued use is permitted by the manufacturer's instructions. Their flexible empty form makes them suitable for storage and transportation between testing locations, while controlled filling and drainage support repeated operations. Reuse, however, depends on proper inspection and maintenance rather than the assumption that the bag remains serviceable indefinitely.

After each test, the bag should be completely drained through its designated discharge arrangement. It should then be inspected, cleaned when necessary, and dried appropriately before storage. Storage conditions should protect the PVC-coated fabric from sharp objects, excessive heat, unsuitable chemical exposure, and other factors that may accelerate deterioration. Filling connections, discharge fittings, seams, and lifting attachments should receive particular attention during maintenance.

For organizations conducting frequent tests, a documented service history can help track the condition of each bag. Records may include the date of use, applied load, inspection findings, maintenance activities, and any repair or withdrawal decisions. Where damage affects the fabric, seams, or lifting attachments, the bag should not be used again until its suitability has been evaluated by qualified personnel. Repairs and any required subsequent inspections should follow approved procedures. This approach supports traceability, maintenance planning, and more consistent management of reusable testing equipment.

Load Testing Water Bags can be used for commissioning, post-repair verification, and scheduled inspection of gantry cranes and other heavy lifting systems. Their water-based loading method reduces dependence on transporting and positioning large quantities of solid test weights. The test team can establish the required load progressively while monitoring the equipment according to the approved procedure. Applications may include steel fabrication plants, shipbuilding facilities, heavy manufacturing workshops, and industrial maintenance centers.

Shipyards use cranes, davits, winches, and other lifting devices to handle engines, fabricated structures, maintenance materials, and vessel components. Load Testing Water Bags provide a flexible testing option where workshop space is restricted or solid weights are difficult to mobilize. Their use requires verification of the test load, rigging arrangement, available lifting height, and surrounding work area. Drainage and storage arrangements should also be planned to avoid interfering with vessel repair and production activities.

Offshore facilities and remote industrial installations may face additional challenges when transporting heavy test materials to the worksite. Load Testing Water Bags can simplify logistics when a suitable water supply and controlled discharge arrangement are available. The test plan should account for environmental conditions, platform or vessel movement, access restrictions, suspension geometry, and emergency procedures. Each application must be evaluated independently to confirm that the bag, rigging, and equipment under test are suitable for the planned operation.

Hongruntong Marine has more than 30 years of manufacturing experience, supporting its understanding of the technical considerations involved in industrial and marine product supply. Load Testing Water Bags require careful coordination between material selection, structural construction, water containment, lifting attachments, and application requirements. These factors influence product suitability and should be reviewed in relation to the actual testing environment rather than assessed independently.

Customers may use these bags for overhead cranes, gantry cranes, marine davits, offshore lifting systems, or industrial maintenance programs. Each application can involve different test loads, working clearances, handling requirements, and inspection procedures. Hongruntong Marine can review the customer's technical information to clarify relevant capacity options, product dimensions, and configuration requirements before an order is confirmed.

Manufacturing experience also supports more structured communication for repeat procurement. By retaining agreed specifications and product configuration details, customers can simplify subsequent orders and reduce uncertainty when maintaining standardized equipment across multiple facilities. The final selection must still reflect the requirements of each test, and the complete lifting arrangement must be verified by the responsible engineering personnel.

The performance of a Load Testing Water Bag depends on the quality of its PVC-coated fabric and the consistency of its finished construction. Fabric reinforcement, coating integrity, seam workmanship, and lifting attachment reinforcement must function together to provide a suitable structure for water containment and suspended loading. Defects or deterioration in critical areas may affect serviceability, particularly when the bag is repeatedly filled, lifted, drained, and transported.

Hongruntong Marine considers material requirements and manufacturing workmanship when evaluating product specifications. Relevant inspection considerations may include fabric condition, coating appearance, seam consistency, attachment reinforcement, dimensions, and the overall condition of the finished bag. The appropriate inspection scope depends on the agreed product specification and the customer's project requirements.

Where a project requires specific material records, dimensional checks, manufacturing inspection reports, or third-party documentation, these requirements should be confirmed before production. Any certificate or test report must correspond to the actual product and the applicable inspection scope. This approach helps customers understand what documentation is available and establishes clearer expectations between procurement, manufacturing, and inspection teams.

A suitable Load Testing Water Bag must be selected according to the complete testing arrangement. The required test load, lifting height, available clearance, suspension geometry, water supply, drainage facilities, and environmental conditions can all affect the final configuration. A product that is suitable for an indoor factory crane may require a different arrangement from one intended for an offshore lifting system.

Hongruntong Marine can review project information to help identify suitable capacity ranges and configuration options. Discussions may include bag dimensions, PVC-coated fabric specifications, filling and discharge connections, lifting attachment arrangements, and handling requirements. For projects involving multiple bags, the load distribution and capacity of the supporting equipment must be reviewed as part of the complete system.

Customers can improve specification accuracy by providing the equipment rating, required test load, intended use, and any applicable project requirements at the quotation stage. The responsible engineer or inspection authority must confirm the final testing arrangement, including the adequacy of all rigging components and supporting structures. This application-based approach helps reduce uncertainty and supports more effective planning before equipment is mobilized to the site.

Long-term product management involves more than the initial purchase. Maintenance departments may need guidance on product specifications, inspection points, storage practices, and the information required for replacement orders. Hongruntong Marine supports product-related technical communication to help customers clarify these requirements and maintain a clear understanding of the supplied equipment.

Proper inspection and storage are important for maintaining the serviceability of reusable Load Testing Water Bags. Customers should check the fabric, seams, lifting attachments, and connections before use, then drain and clean the bag as appropriate after each operation. Suitable drying and storage practices help reduce avoidable damage. Records of usage and inspection findings also provide a useful basis for maintenance planning and decisions about continued service.

When a customer needs repeat supplies, retained specifications and documented configuration details can support consistency between procurement cycles. If the application changes, the revised test load, operating environment, or rigging arrangement should be reviewed before the existing product is reused. Supplier communication can help clarify product-related questions, while formal approval, regulatory compliance, and engineering assessment remain the responsibility of the relevant qualified personnel.
