High Buoyancy Boat Air Bags for Easy Deployment and Long Service Life in Marine Salvage

1
MOQ
US$230-US$550
Price
High Buoyancy Boat Air Bags for Easy Deployment and Long Service Life in Marine Salvage
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Boat Air Bags
Material: PVC Coating Fabric
Lifting Capacity: 200kg To 50 Tons
Layers: 1-6Ply, Or As Request
Feature: Durable Construction, Easy Filling And Emptying
Reinforcement: Nylon Fabric
Thickness: 0.4mm-2.5mm, Or As Request
Color: Black, Yellow, Orange, Or As Request
Application: Structural Load Testing, Proof Load Testing
MOQ: 1
Highlight:

High Buoyancy Boat Air Bags

,

Easy Deployment Underwater Air Lifting Bags

,

Long Service Life Inflatable Buoyancy Bags
Basic Infomation
Place of Origin: China
Brand Name: Hongruntong Marine
Certification: ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
Model Number: HM-BAB5
Payment & Shipping Terms
Packaging Details: Wooden Pallets, Wooden Box
Delivery Time: 5-7 Work Days
Payment Terms: L/C,T/T,D/A,D/P,Western Union,
Supply Ability: 1960 Pcs Per Month
Product Description

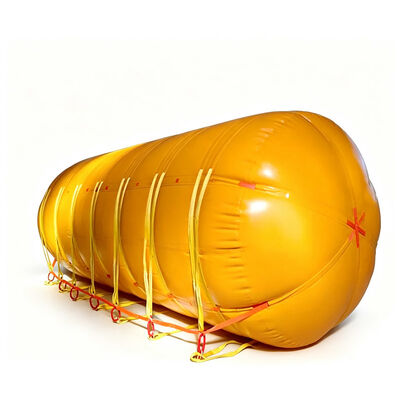

Air Lifting Bags High Buoyancy Easy Deployment Long Service Life
Cylindrical Underwater Air Lifting Bags are flexible pneumatic buoyancy devices engineered for controlled underwater lifting, vessel salvage, refloating operations, temporary flotation, submerged equipment recovery, and marine construction support. The cylindrical configuration provides an elongated buoyant body that can be installed beneath suitable sections of a vessel or underwater structure, allowing buoyancy to be distributed over a defined contact area rather than concentrated at a single lifting location.
Case Study: Underwater Recovery of a 260 Tonne Coastal Cargo Vessel
A marine salvage contractor in Southeast Asia successfully recovered a 260 tonne coastal cargo vessel using multiple cylindrical underwater lifting bags. The vessel was resting at an uneven angle on a muddy seabed with restricted access for large crane vessels. The distributed buoyancy arrangement allowed progressive refloating without creating excessive local loading, demonstrating the engineering benefit of pneumatic buoyancy in restricted marine environments.

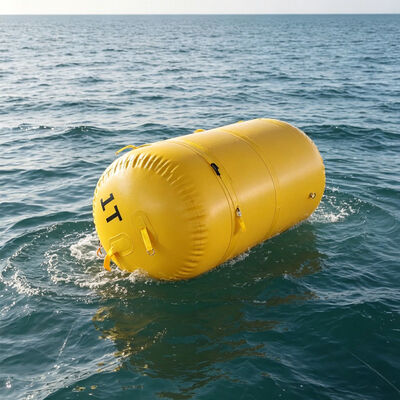

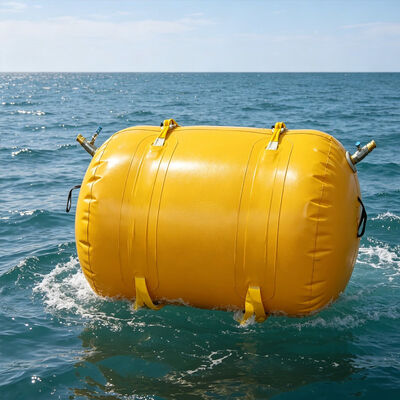

Cylindrical underwater air lifting bag deployment Marine salvage operation with air lifting bags
Specifications
Product Name Boat Air Bags
Raw Material PVC coating fabric
Type Cylindrical, Parachute, Pillow
Size 500kg, 1000kg, 5000kg, 10000kg, etc
Thickness 0.4-1.2mm, or as request
Color Yellow, Blue, Black, etc
Density 0.33-0.9g/cm³
Safety Factor 7:1
Tolerances ±0.03 on densities, ±0.2mm on thickness, ±0 to +3mm on width, ±0 to +3mm on length
Model Specifications
Model Buoyancy (kg) Buoyancy (lbs) Diameter (mm) Length (mm) Weight (kg)
HM-ULB01 200 441 500 1,000 5
HM-ULB02 500 1,103 800 1,000 8
HM-ULB03 1,000 2,205 1,000 1,500 11
HM-ULB04 2,000 4,410 1,300 1,500 20
HM-ULB05 4,000 8,820 1,600 2,000 50
HM-ULB06 6,000 13,230 2,000 2,000 66
HM-ULB07 8,000 17,640 2,000 2,600 75
HM-ULB08 10,000 22,050 2,400 2,400 80
HM-ULB09 15,000 33,075 2,600 3,000 110
HM-ULB10 20,000 44,100 3,000 3,000 130
HM-ULB11 30,000 66,150 3,000 4,500 170
HM-ULB12 50,000 110,250 4,000 4,000 220
HM-ULB13 70,000 154,350 4,000 5,700 310
HM-ULB14 100,000 220,500 4,000 8,000 450
HM-ULB15 150,000 330,750 5,000 8,000 660
HM-ULB16 200,000 441,000 5,000 10,000 900
Note: Other sizes can be customized according to the requirements.
Key Features
  • High Strength Multilayer Reinforcement System
    Synthetic tire cord fabric embedded between rubber layers creates a composite flexible structure that maintains dimensional stability under internal pressure and provides excellent fatigue resistance.
  • Optimized Cylindrical Load Distribution
    The elongated buoyancy surface supports load over defined hull sections, allowing progressive inflation and independent control of multiple lifting elements for improved operational flexibility.
  • Abrasion Resistant Marine Rubber Construction
    Engineered rubber compounds provide protection against marine exposure and mechanical contact while maintaining flexibility for repeated deployment.
  • Controlled Buoyancy and Operational Pressure Management
    Progressive inflation allows operators to adjust buoyancy during recovery sequences, providing reversible operating capability and enhanced control over vessel movement.
Applications
  • Marine Salvage and Vessel Refloating
  • Submerged Equipment Recovery
  • Marine Construction and Temporary Buoyancy
Why Choose Hongruntong Marine
  • Integrated Marine Rubber Product Manufacturing
    30+ years of experience in manufacturing marine rubber products with systematic understanding of rubber formulation, reinforcement construction, and marine exposure conditions.
  • Project-Based Engineering and Customization
    Customized cylindrical configurations based on required dimensions, buoyancy capacity, operating pressure, and project-specific requirements.
  • Controlled Quality and Technical Testing
    Comprehensive inspection and testing procedures including dimensional verification, pressure testing, and quality control documentation.
  • Technical Support from Specification to Field Application
    Full technical support covering installation, operating limitations, maintenance, and integration into engineering procedures.
Frequently Asked Questions
  • What materials are used to manufacture Cylindrical Underwater Air Lifting Bags?
    The main body consists of reinforced synthetic tire cord fabric combined with engineered rubber compounds for tensile strength, dimensional stability, and environmental protection.
  • Can the lifting bags be used repeatedly?
    Yes, the bags are designed as reusable pneumatic equipment when operated within specified pressure and load limits, with proper cleaning, inspection, and maintenance between uses.
  • How should the bags be protected from underwater obstacles?
    Installation areas should be inspected and cleared of sharp objects. Additional protective padding or barriers should be used when direct contact with hazards cannot be avoided.
  • What information is required for selecting the correct lifting bag configuration?
    Typical engineering information includes vessel weight, hull dimensions, center of gravity, available clearance, water depth, seabed condition, and required reserve buoyancy.
  • Can different diameters and lengths be manufactured for specific projects?
    Yes, cylindrical lifting bags can be configured with different diameters, lengths, and accessory arrangements according to project-specific technical requirements.

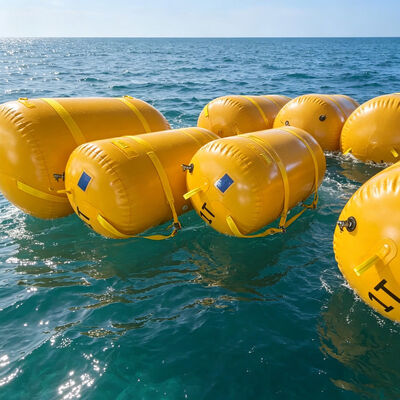

Industrial air lifting bag manufacturing process Quality inspection of marine air lifting bags Marine salvage operation in progress Underwater deployment of cylindrical air bags
