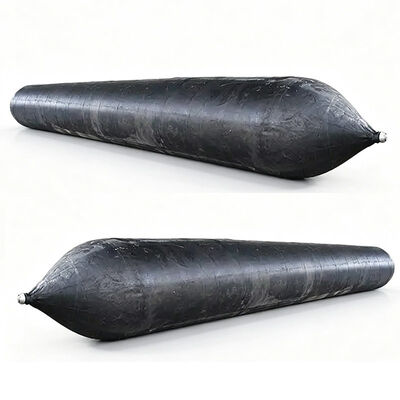

Marine Air Bag is a heavy-duty inflatable rubber engineering system designed for extreme ship launching conditions, heavy vessel support, and offshore marine lifting operations. It is manufactured using multi-layer high-tensile synthetic tire cord reinforcement combined with advanced vulcanized rubber compounds, forming a cylindrical flexible structure capable of withstanding ultra-high compressive and dynamic rolling loads.
The system is engineered for high-pressure and heavy-load environments, with operational pressure typically ranging from 0.18 MPa to 0.32 MPa depending on vessel tonnage, hull geometry, and launching configuration. This enhanced pressure capacity enables Marine Air Bags to support large displacement vessels while maintaining structural stability and controlled deformation behavior under extreme conditions.
Marine Air Bags operate through a controlled rolling lifting mechanism that replaces rigid slipway friction with elastic deformation and rotational motion. This significantly reduces hull stress concentration, minimizes structural impact forces, and ensures smoother vessel transfer during launching into water.
The outer rubber layer is designed with ultra-durable marine-grade compounds, providing resistance to seawater corrosion, oil contamination, UV radiation, and high-intensity mechanical abrasion. The internal reinforcement layers are engineered to withstand repeated high-load cycles without structural fatigue failure, ensuring reliability in heavy industrial operations.
This system is widely used in large shipyards and offshore engineering environments where traditional dry dock infrastructure is insufficient or economically impractical. It provides a flexible, scalable, and high-capacity alternative for launching and handling heavy marine structures.
A major offshore shipbuilding facility in Northern Europe was assigned the task of launching a 12,000 DWT offshore construction vessel designed for deep-sea wind farm installation operations. The vessel featured a reinforced double hull structure, heavy onboard lifting equipment, and extremely high structural displacement, making it one of the most demanding launching projects for the shipyard.
Due to limited dry dock availability and high construction scheduling pressure, Hongruntong Marine developed a reinforced Marine Air Bag system with 1.6m diameter ultra-high load configuration and 11-layer reinforcement structure. A total of 26 air bags were deployed under the hull following finite element load simulation analysis to ensure precise stress balancing across the entire vessel base.
During the launching operation, synchronized high-pressure inflation systems were used to maintain uniform load distribution across all support points. The vessel was gradually transferred into water using controlled rolling motion while continuously monitoring pressure stability and hull stress conditions.
Despite extreme load conditions exceeding standard shipyard launching limits, the system maintained full structural integrity without deformation, pressure loss, or instability. The launching operation was completed within 78 minutes under controlled conditions. Post-operation inspection confirmed zero hull damage, zero structural stress anomalies, and full compliance with marine safety requirements.
The shipyard reported a 52 percent reduction in operational cost compared to dry dock launching methods and confirmed the system's suitability for repeated heavy offshore vessel operations in deep-sea engineering projects.
* Other size can be provided follow client's requirements.
What is the maximum pressure Marine Air Bags can safely operate under?
Marine Air Bags can be designed to operate up to 0.32 MPa depending on configuration and vessel requirements.
Can this system support ultra heavy offshore vessels?
Yes it is specifically engineered for heavy offshore vessels including those exceeding 10,000 DWT.
How is safety ensured under extreme load conditions?
Safety is ensured through multi-layer reinforcement and real-time synchronized pressure control systems.
Is this system suitable for deep sea engineering vessels?
Yes it is widely used for offshore construction and deep sea engineering vessel launching projects.
What type of maintenance is required after heavy usage?
Routine inspection pressure release cleaning and structural integrity checks are required before storage.
